Danfoss VLT AutomationDrive FC 302 Service Guide

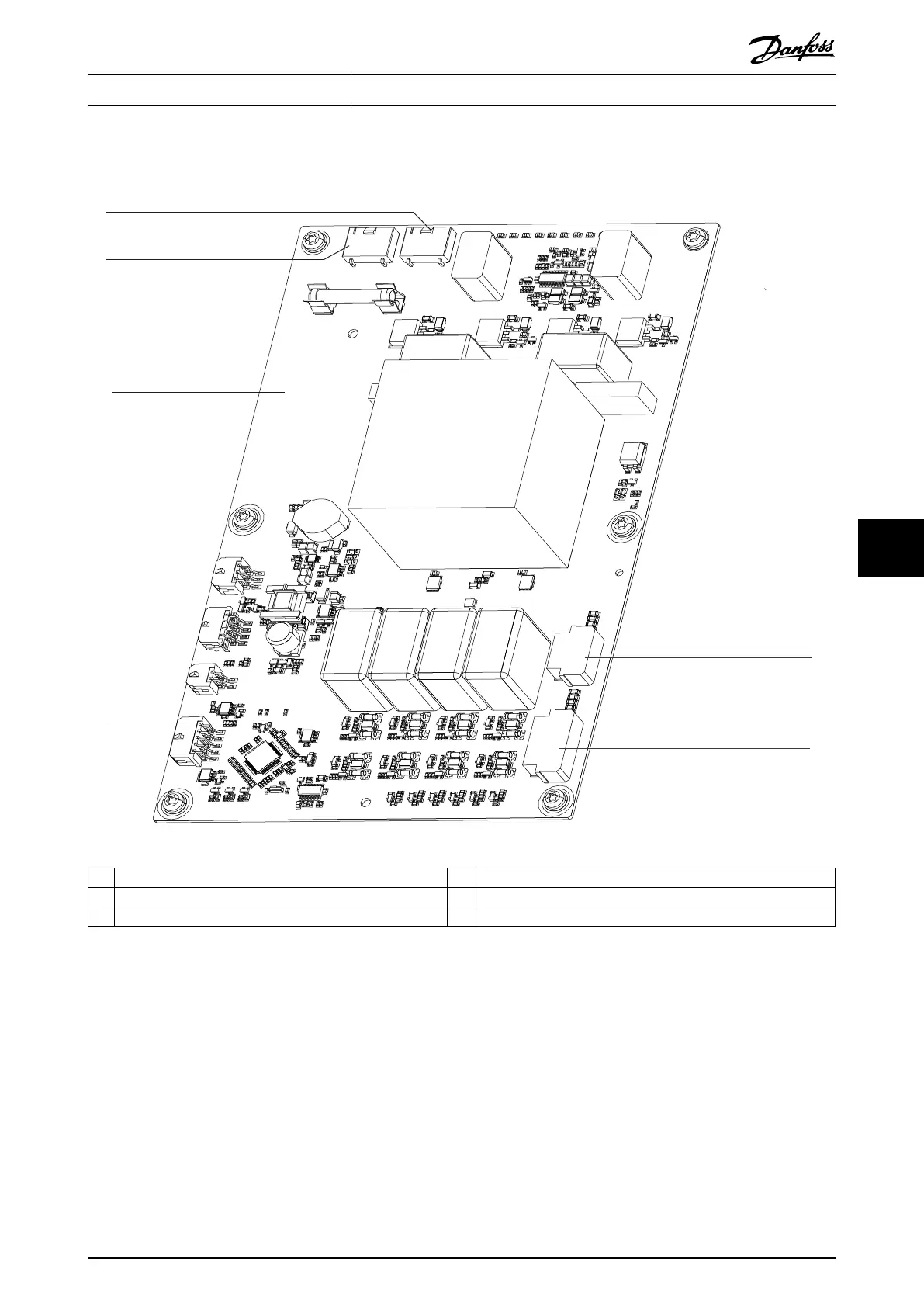

8.3.7 Fan Power Card in E-sized Drives
4
5
130BF939.10
6
1
2
3
1 MK802: DC power 4 MK1200: Inrush card (MK110) and power card (MK105)
2 MK803: Power card signals (MK902) 5 MK602: Door/top fan control
3 Fan power card (PCA16) 6 MK600: Heat sink fan control
Illustration 8.7 Fan Power Card in E-sized Drives
Test Procedures Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 97
8 8
