Danfoss VLT AutomationDrive FC 302 Service Guide

8.3.6 MDCIC in Parallel Drive Systems
130BF051.10
1
2
3
4
6
5
7
8
9
1 MK110: Connector for current scaling card for module 4 6 MK113: Connector to module 3
2 MK109: Connector for current scaling card for module 3 7 MK114: Connector to module 4
3 MK108: Connector for current scaling card for module 2 8 MK111: Connector to module 1
4 MK107: Connector for current scaling card for module 1 9 MK112: Connector to module 2
5 MK100: MDCIC-to-control card connection – –

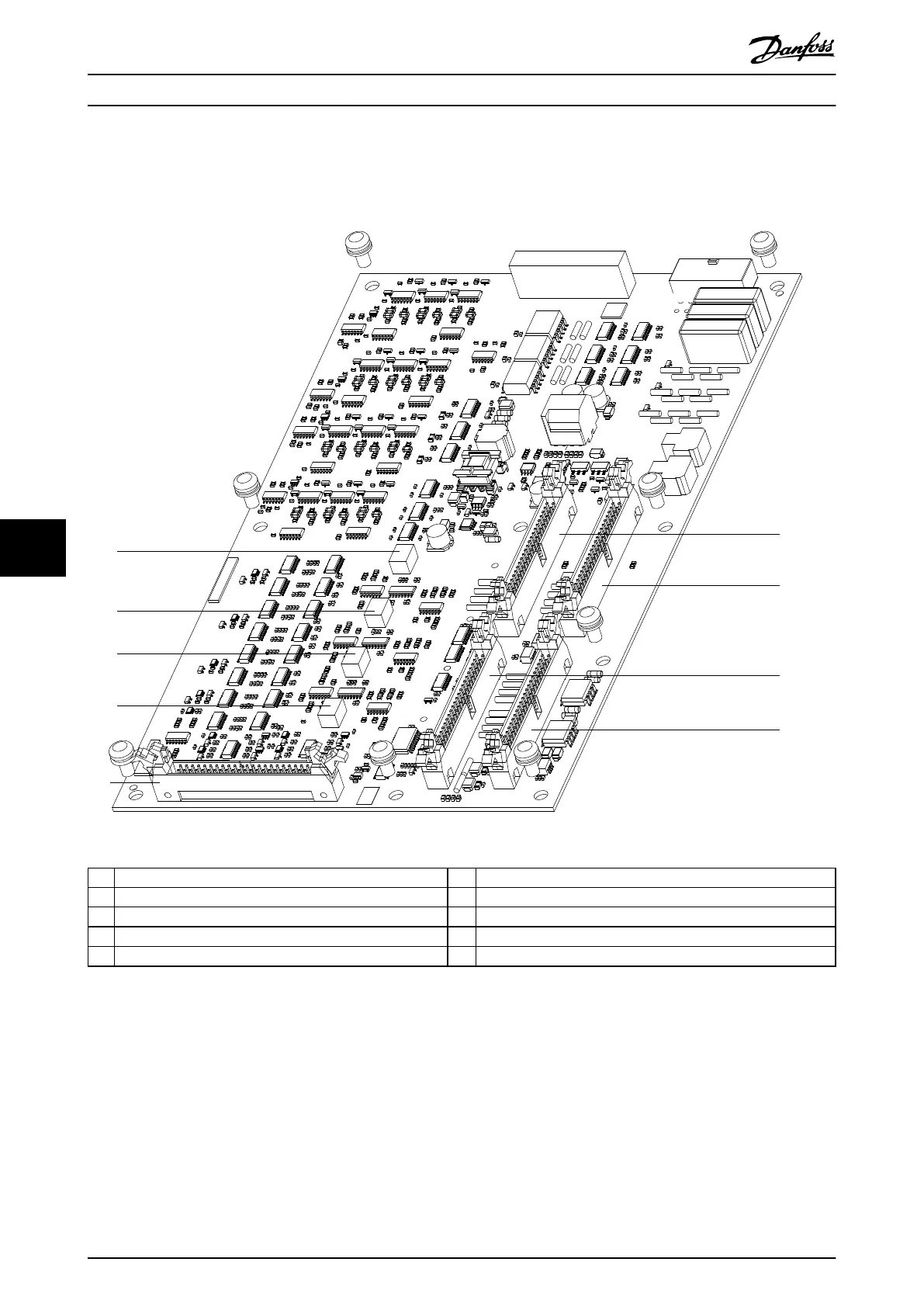

Illustration 8.6 MDCIC in Parallel Drive Systems
Test Procedures
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
96 Danfoss A/S © 02/2019 All rights reserved. MG94A502
88

Danfoss VLT AutomationDrive FC 302 Specifications

General

Category	DC Drives
Control Method	Flux Vector Control
Communication Options	CANopen, PROFIBUS
Cooling	Forced convection
Enclosure	IP20, IP21, IP55, IP66
Protection Class/Rating	IP20
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit
Approvals	CE, UL, cUL
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Output Voltage	0 V to Input Voltage
