Danfoss VLT FC 102 N250 User Manual

1.
2.
3.
4.
5.
6.
7.
a.
b.
c.
d.
e.
f.
g.
h.
i.
j.
k.
l.
m.
-
Example
53
55
6-1*
+
A53
U - I
e30bb482.10
0-10V

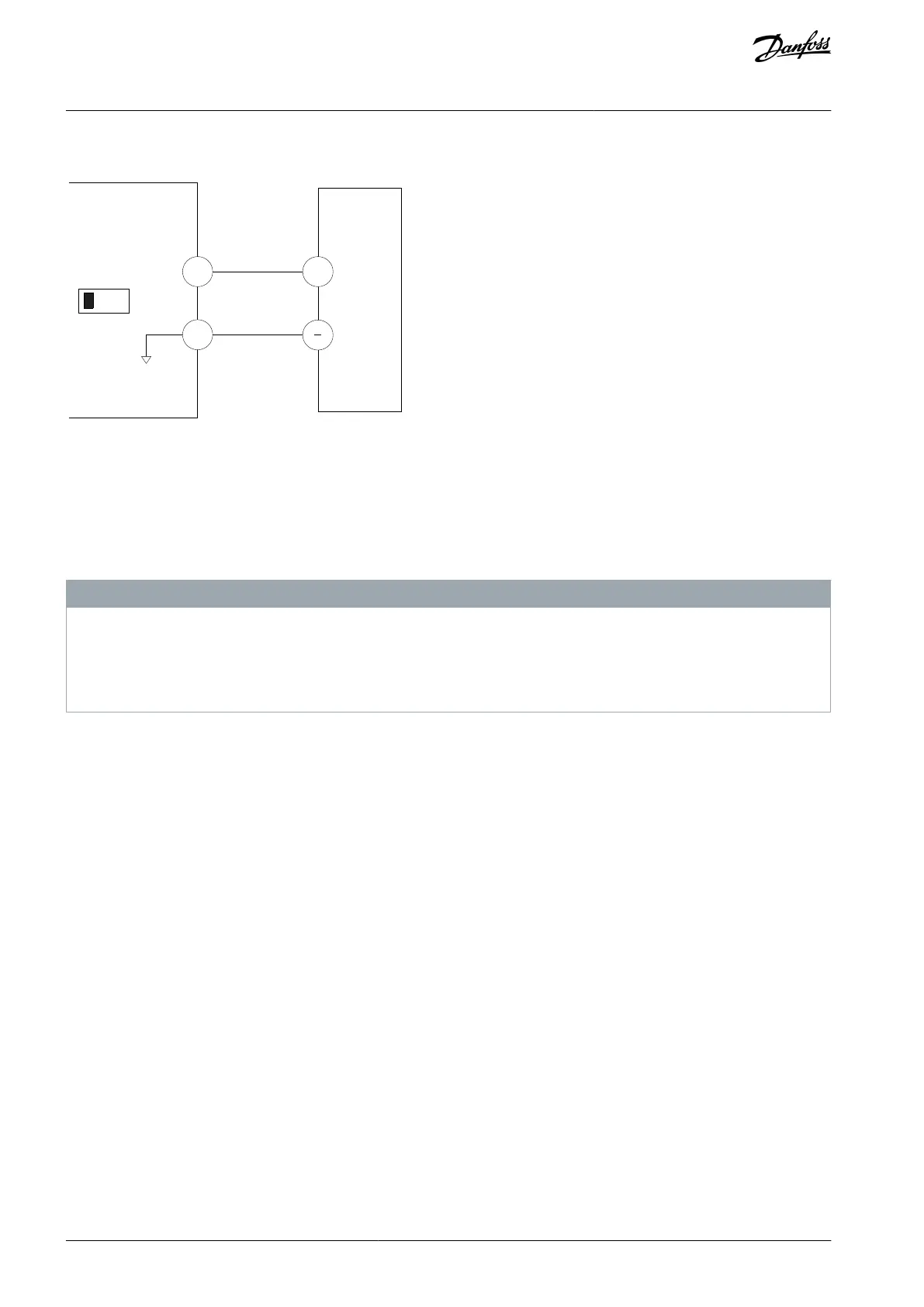

Illustration 57: Wiring Example for External Device Providing 0–10 V Control Signal
7.2.4 Entering System Information
The following steps are used to enter basic system information into the drive. Recommended parameter settings are intended for
start-up and checkout purposes. Application settings vary.
Although these steps assume that an induction motor is used, a permanent magnet motor can also be used. For more information
on specic motor types, see the product-specic Programming Guide.
N O T I C E
SOFTWARE DOWNLOAD
For commissioning via a PC, install VLT
®
Motion Control Tool MCT 10 set-up software. A basic version, which is sucient for most
applications, is available for download. An advanced version, which can commission multiple drives at once, can be ordered.
See https://www.danfoss.com/en/service-and-support/downloads/?sort=title_asc&lter=download-type%3Dtools.
Procedure
Press [Main Menu] on the LCP.
Select 0–** Operation/Display and press [OK].
Select 0–0* Basic Settings and press [OK].
Select parameter 0-03 Regional Settings and press [OK].
Select [0] International or [1] North America as appropriate and press [OK]. (This action changes the default settings for some
basic parameters).
Press [Quick Menus] on the LCP and then select 02 Quick Setup.
If needed, change the following parameter settings. Motor data is found on the motor nameplate.
Parameter 0-01 Language (English)
Parameter 1-20 Motor Power [kW] (4.00 kW)
Parameter 1-22 Motor Voltage (400 V)
Parameter 1-23 Motor Frequency (50 Hz)
Parameter 1-24 Motor Current (9.00 A)
Parameter 1-25 Motor Nominal Speed (1420 RPM)
Parameter 5-12 Terminal 27 Digital Input (Coast Inverse)
Parameter 3-02 Minimum Reference (0.000 RPM)
Parameter 3-03 Maximum Reference (1500.000 RPM)
Parameter 3-41 Ramp 1 Ramp up Time (3.00 s)
Parameter 3-42 Ramp 1 Ramp Down Time (3.00 s)
Parameter 3-13 Reference Site (Linked to Hand/Auto)
Parameter 1-29 Automatic Motor Adaptation (AMA) (O)
AQ357954340588en-000201 / 130R0881100 | Danfoss A/S © 2020.09
Commissioning
VLT® Refrigeration Drive FC 103
Operating Guide
