Datamax A-4310 User Manual

Label Formatting Command Functions
110 Class Series Programmer’s Manual
A Set Format Attribute
This command specifies the type of format operation and remains in effect until another format
command is specified or another label format has begun (<STX>L). Each label format defaults to
Attribute 2 (Transparent Mode).
Syntax:
An
Where:
n
- Is attribute mode 1, 2, 3, or 5; see table below.
The default is 1, (XOR Mode).
Sample:
<STX>L
A3
141100001000100DATAMAX<CR>
141100001100110DATAMAX<CR>
E
The sample sets the printer to Opaque Mode and produces one label.
n

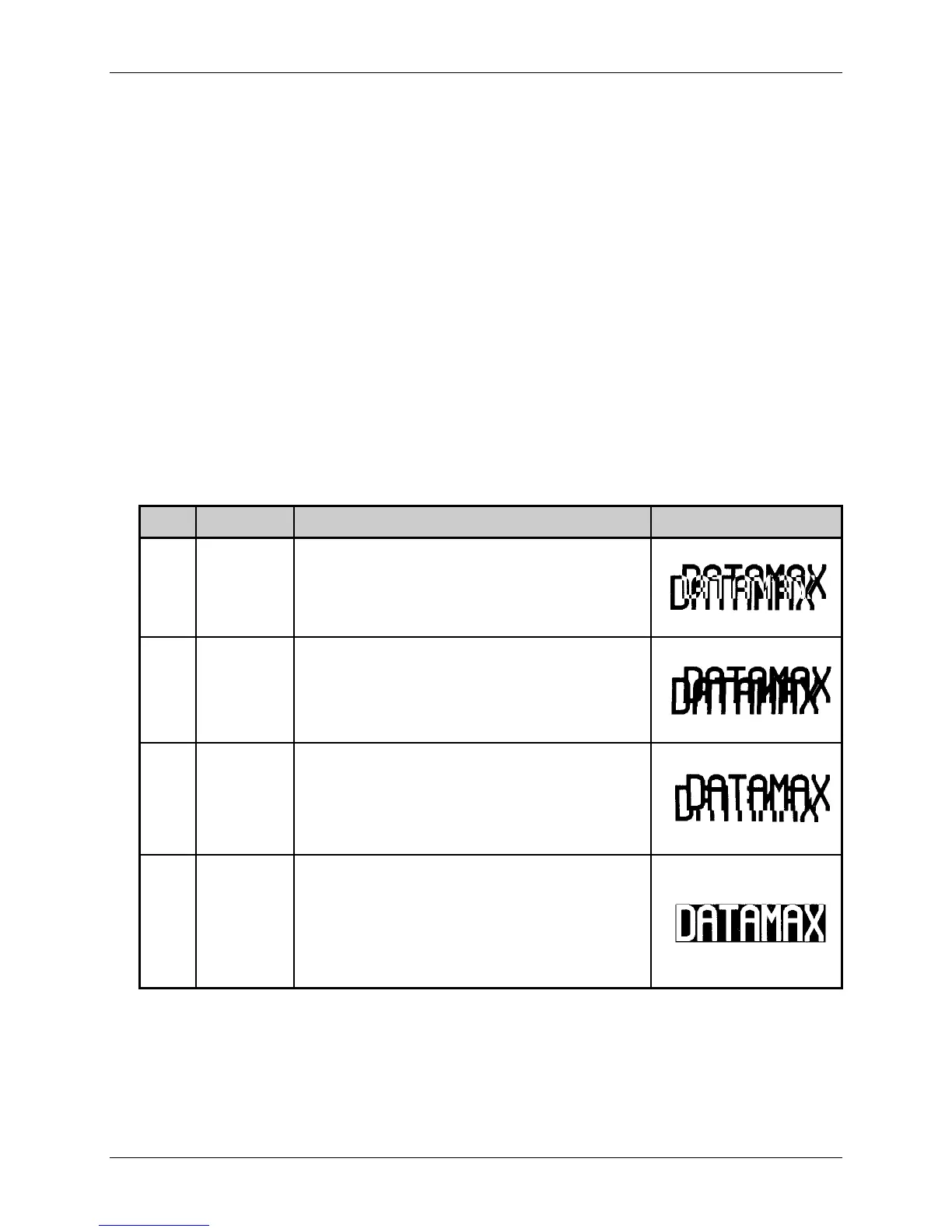

Attribute Description Example
1
XOR
Mode
In this mode, the region where text strings, images or
bar codes intersect will not be printed. (An odd
number of overlapping objects will print.)
2
Transparent
Mode
This is the default mode; the intersecting regions of
text strings, images, and bar codes will print, allowing
the user to print fields on top of one another.
3
Opaque
Mode
Interacting text is obliterated by the text formatted
last. Each character cell is treated as opaque. This
mode is effective only in rotation 1. See Record
Structure Types.
5
Inverse
Mode
This mode allows inverse (white on black) printing
(e.g., a proportionally sized border and background
are printed similar to photographic negative). If text or
image fields overlap in this mode, the effect will be
similar to the XOR mode.
Table 6-1: Format Attributes

Datamax A-4310 Specifications

General

Print Resolution	300 dpi
Print Speed	10 ips
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Print Technology	Thermal Transfer
Memory	16 MB DRAM / 8 MB Flash
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Tickets
Maximum Print Length	99 inches
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, Postnet, PDF417
Operating Temperature	40°F to 104°F (4°C to 40°C)
Print Width	4.16" (105.7 mm)
Media Width	1.0" to 4.65" (25.4 mm to 118.1 mm)
Media Thickness	0.0025" to 0.010" (0.0635 mm to 0.254 mm)

Summary

Overview

Who Should Use This Manual

Identifies the intended audience for this manual, focusing on programmers creating label software.

Scope of the Programmer's Manual

Explains the manual's coverage of DPL commands for Datamax printers and firmware versions.

Control Code Command Functions

Attention-Getters Explained

Describes standard ASCII control labels representing one-character control codes for commands.

Alternate Control Code Modes

Explains available alternate modes for transmitting control codes when standard codes are unavailable.

Immediate Command Functions

SOH # Reset Command

Resets the printer to default settings, clearing buffers and DRAM memory.

SOH A Send ASCII Status String

Allows the host to check current printer status by returning an eight-character string.

SOH C Stop/Cancel Command

Clears the print buffer, pauses the printer, and illuminates the Paused/Stop Indicator.

SOH F Send Status Byte

Instructs the printer to send a single status byte representing printer status flags.

System-Level Command Functions

STX A Set Time and Date

Sets the printer's internal time and date, stored in the inch counter.

STX I Input Image Data

Precedes image downloading, allowing the printer to receive image data from a host.

STX M Set Maximum Label Length

Sets the media distance to search for top-of-form before declaring a paper fault.

STX Q Clear All Modules

Clears all Flash and DRAM modules, destroying all stored data.

STX W Request Memory Module Information

Requests a memory module directory listing, showing results based on printer class and firmware.
