Dell 2330d - Laser Printer B/W Service Manual

Manual feed solenoid removal
1. Remove the right side cover. See “Left side cover removal” on page 4-23.
2. Remove the duplex. See “Duplex removal” on page 4-11.
3. Open the front access door, and place the printer on its right side.
Note: Be careful to not mar the finish of the printer.

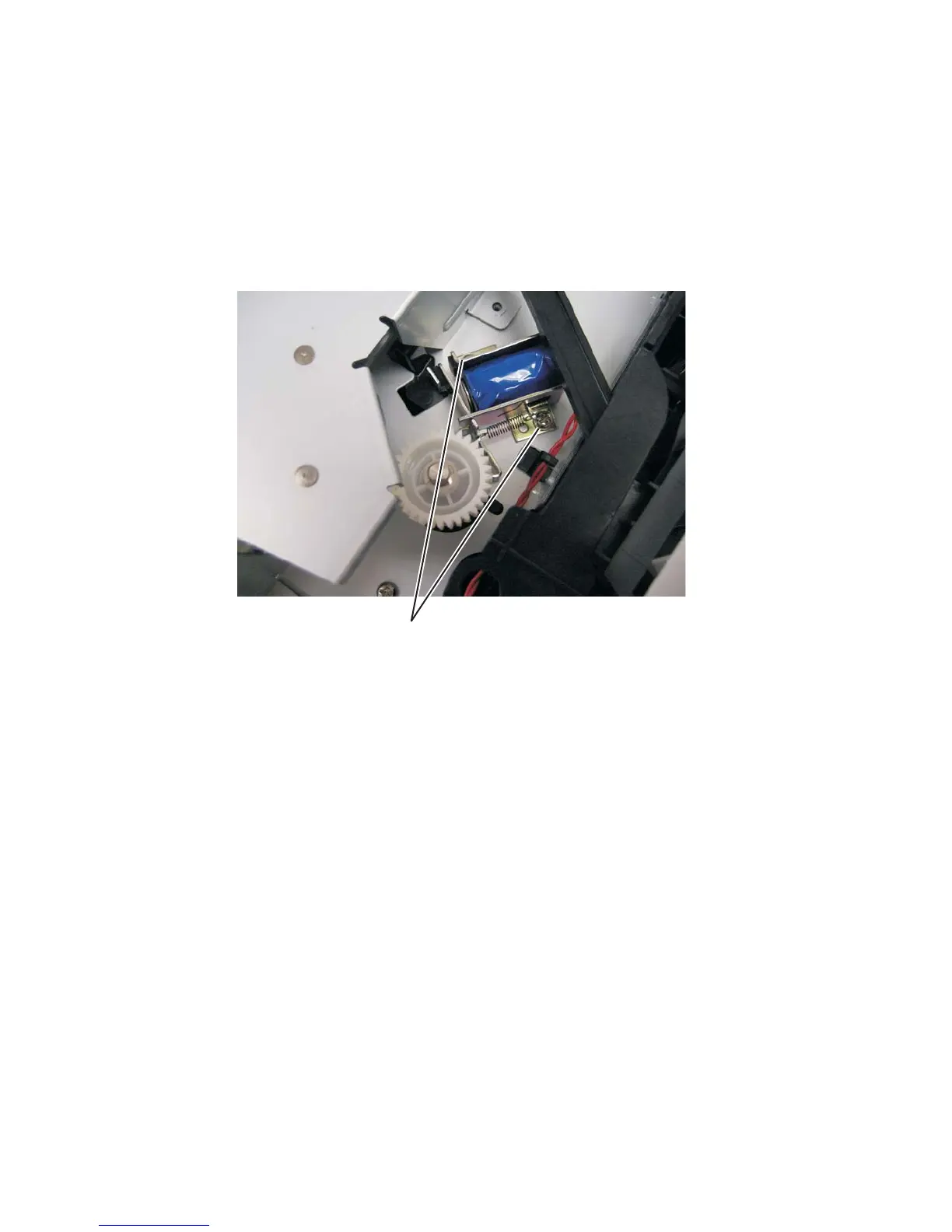

4. Remove the two screws (A).
Note: The picture below shows the E260d, E260dn printer. The manual feed solenoid removal is the same for
all models.
A
4-34

Dell 2330d - Laser Printer B/W Specifications

General

Print Technology	Laser
Print Speed	Up to 35 ppm
Print Resolution	1200 x 1200 dpi
Standard Input Capacity	250 sheets
Processor Speed	400 MHz
Memory	64 MB
Operating System Compatibility	Windows, Mac, Linux
Connectivity	Ethernet
Maximum Paper Size	8.5 x 14 inch
Monthly Duty Cycle	50, 000 pages
