Dell 2330d - Laser Printer B/W Service Manual

Repair information 4-17

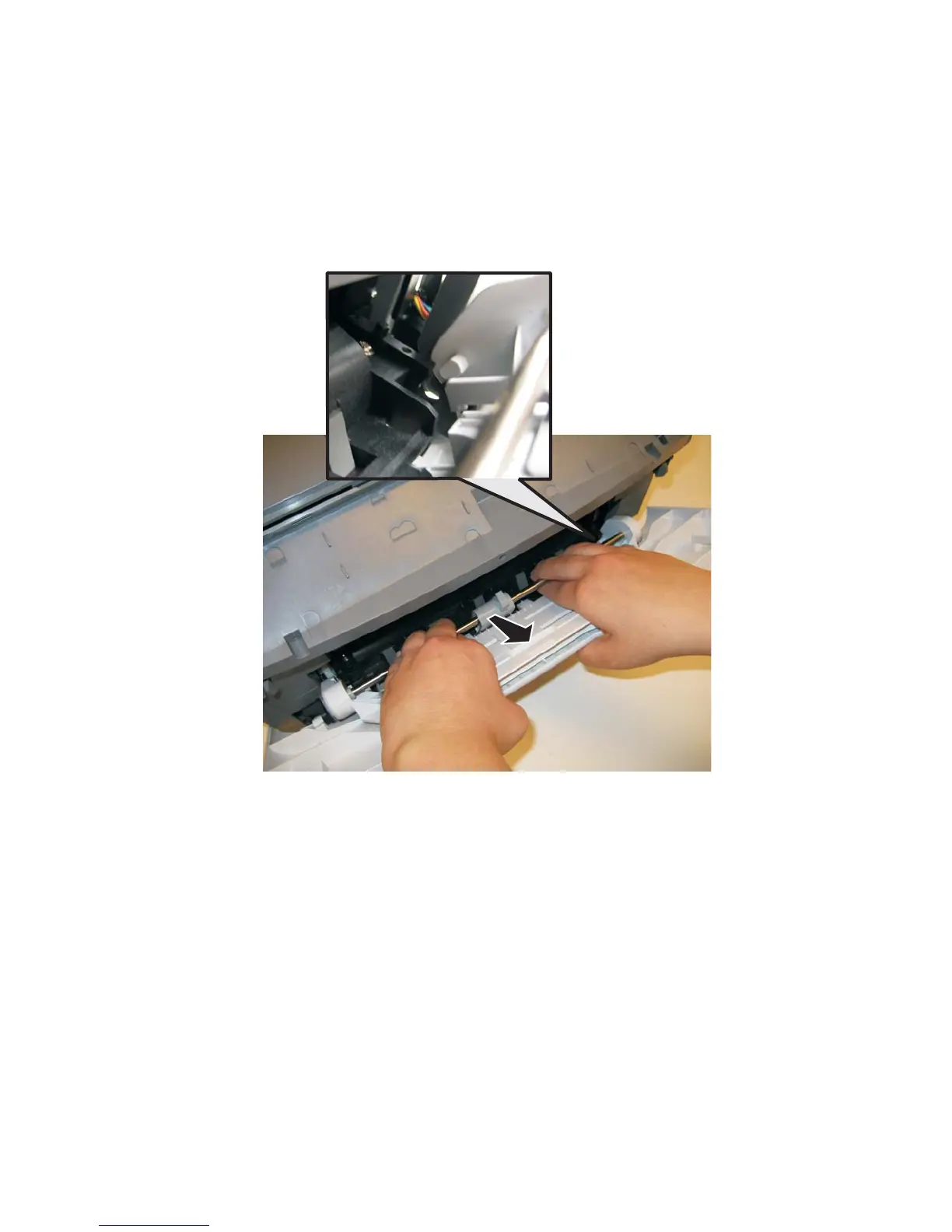

Front access door removal
1. Remove the operator panel. See “Operator panel removal” on page 4-51.
2. Remove the left side cover. See “Left side cover removal” on page 4-23.
3. Remove the upper front guide assembly. See “Upper front guide assembly removal” on page 4-64,
steps 1-3.
4. Close the front access door.
5. While closing the MPF cover, pull up on the MPF by the steel shaft until the MPF lifts from its hinges.

Dell 2330d - Laser Printer B/W Specifications

General

Print Technology	Laser
Print Speed	Up to 35 ppm
Print Resolution	1200 x 1200 dpi
Standard Input Capacity	250 sheets
Processor Speed	400 MHz
Memory	64 MB
Operating System Compatibility	Windows, Mac, Linux
Connectivity	Ethernet
Maximum Paper Size	8.5 x 14 inch
Monthly Duty Cycle	50, 000 pages
