Dell 2330d - Laser Printer B/W Service Manual

Repair information 4-51

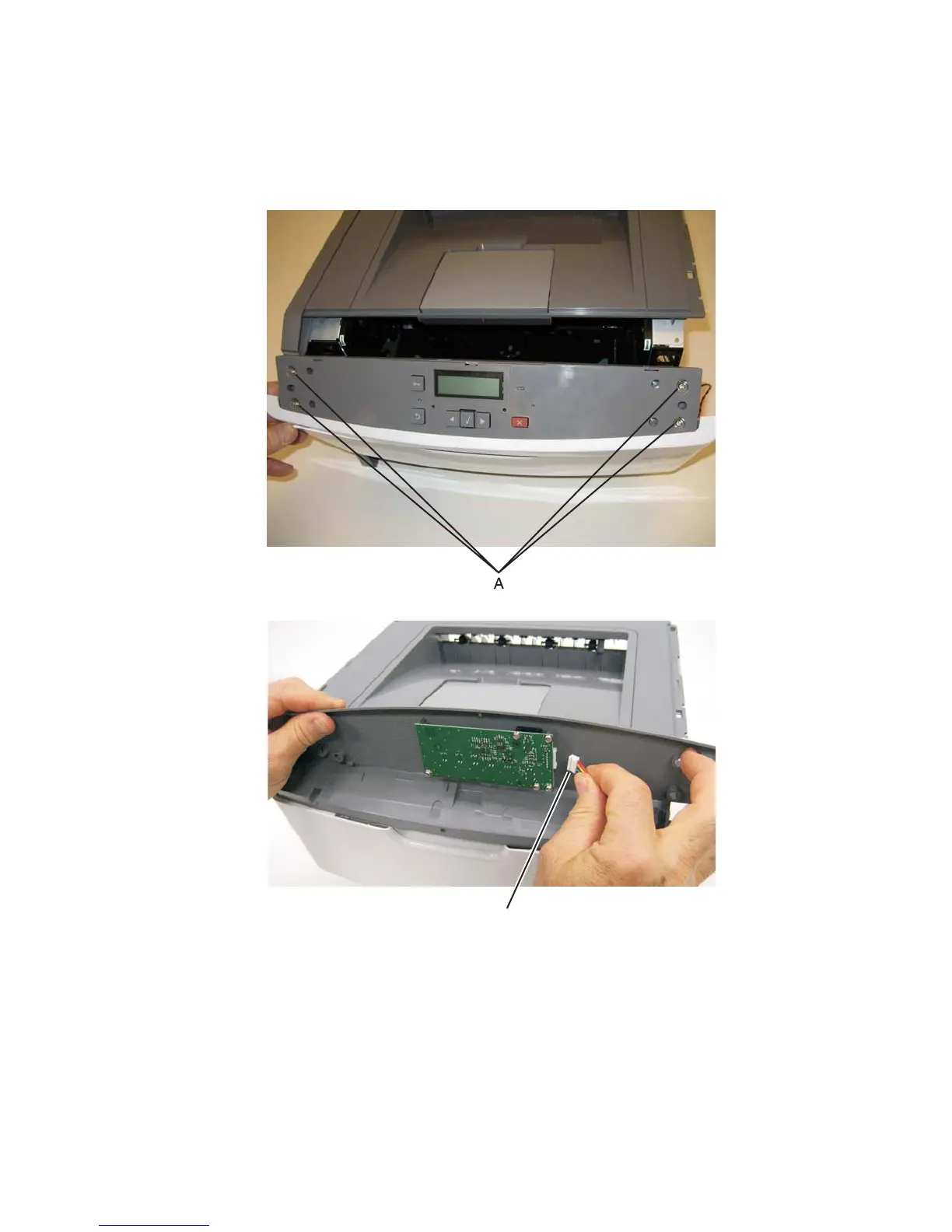

Operator panel removal
1. Remove the nameplate. See “Nameplate removal” on page 4-50.
2. Remove the bezel. See “Bezel removal” on page 4-5.
3. Remove the four screws (A) from the display plate.
4. Lift the operator panel cover, and disconnect the operator panel cable (B).
5. Remove the operator panel.
B

Dell 2330d - Laser Printer B/W Specifications

General

Print Technology	Laser
Print Speed	Up to 35 ppm
Print Resolution	1200 x 1200 dpi
Standard Input Capacity	250 sheets
Processor Speed	400 MHz
Memory	64 MB
Operating System Compatibility	Windows, Mac, Linux
Connectivity	Ethernet
Maximum Paper Size	8.5 x 14 inch
Monthly Duty Cycle	50, 000 pages
