Dell 2330d - Laser Printer B/W Service Manual

Multipurpose feeder (MPF) feed clutch removal
1. Remove the left side cover. See “Left side cover removal” on page 4-23.
2. Remove the duplex. See “Duplex removal” on page 4-11.

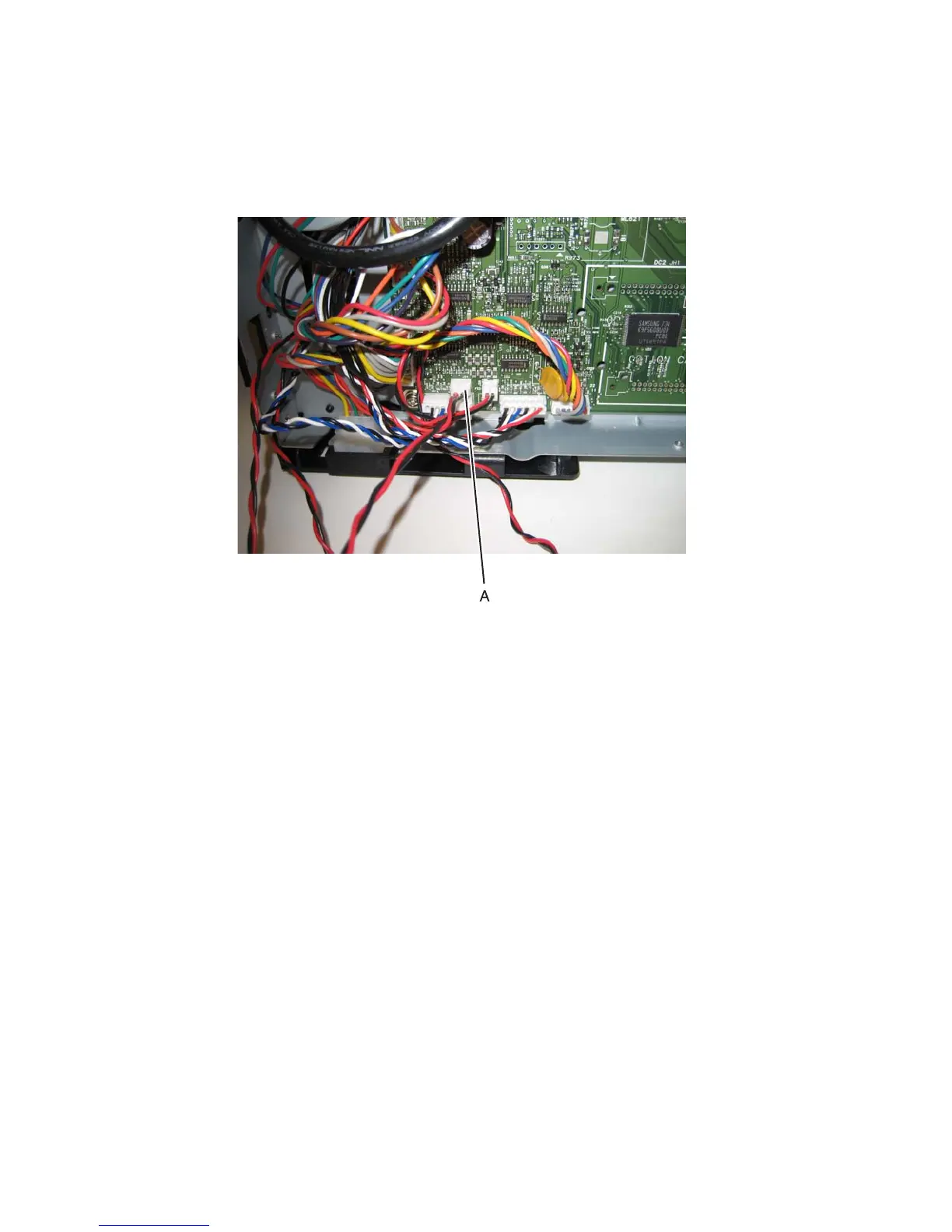

3. Disconnect the cable (A) from the controller board.
4. Place the printer on its right side.
Note: Be careful to not damage any cables or mar the finish of the printer.
4-48

Dell 2330d - Laser Printer B/W Specifications

General

Print Technology	Laser
Print Speed	Up to 35 ppm
Print Resolution	1200 x 1200 dpi
Standard Input Capacity	250 sheets
Processor Speed	400 MHz
Memory	64 MB
Operating System Compatibility	Windows, Mac, Linux
Connectivity	Ethernet
Maximum Paper Size	8.5 x 14 inch
Monthly Duty Cycle	50, 000 pages
