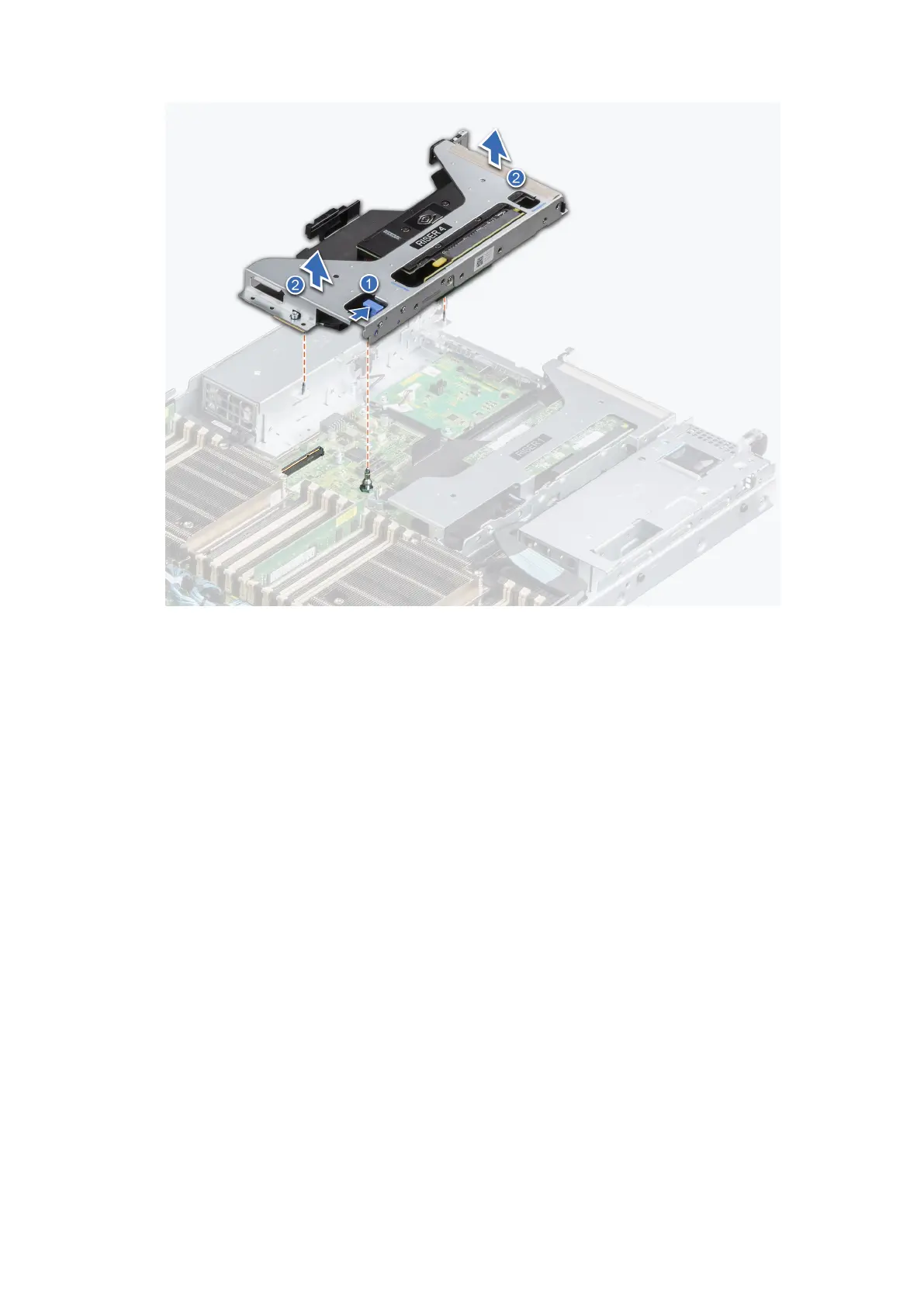

Figure 85. Removing the expansion card riser (Riser 4)
Next steps
1. Replace the expansion card riser.
Installing the expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If removed, install the expansion cards into the expansion card risers.
Steps
1. Holding the edges or the touch points, align the holes on the expansion card riser with the guides on the system board.
2. Lower the expansion card riser into place and press the touch points until the expansion card riser connector is fully seated
on the system board connector.
Installing and removing system components
105
