Inside the system

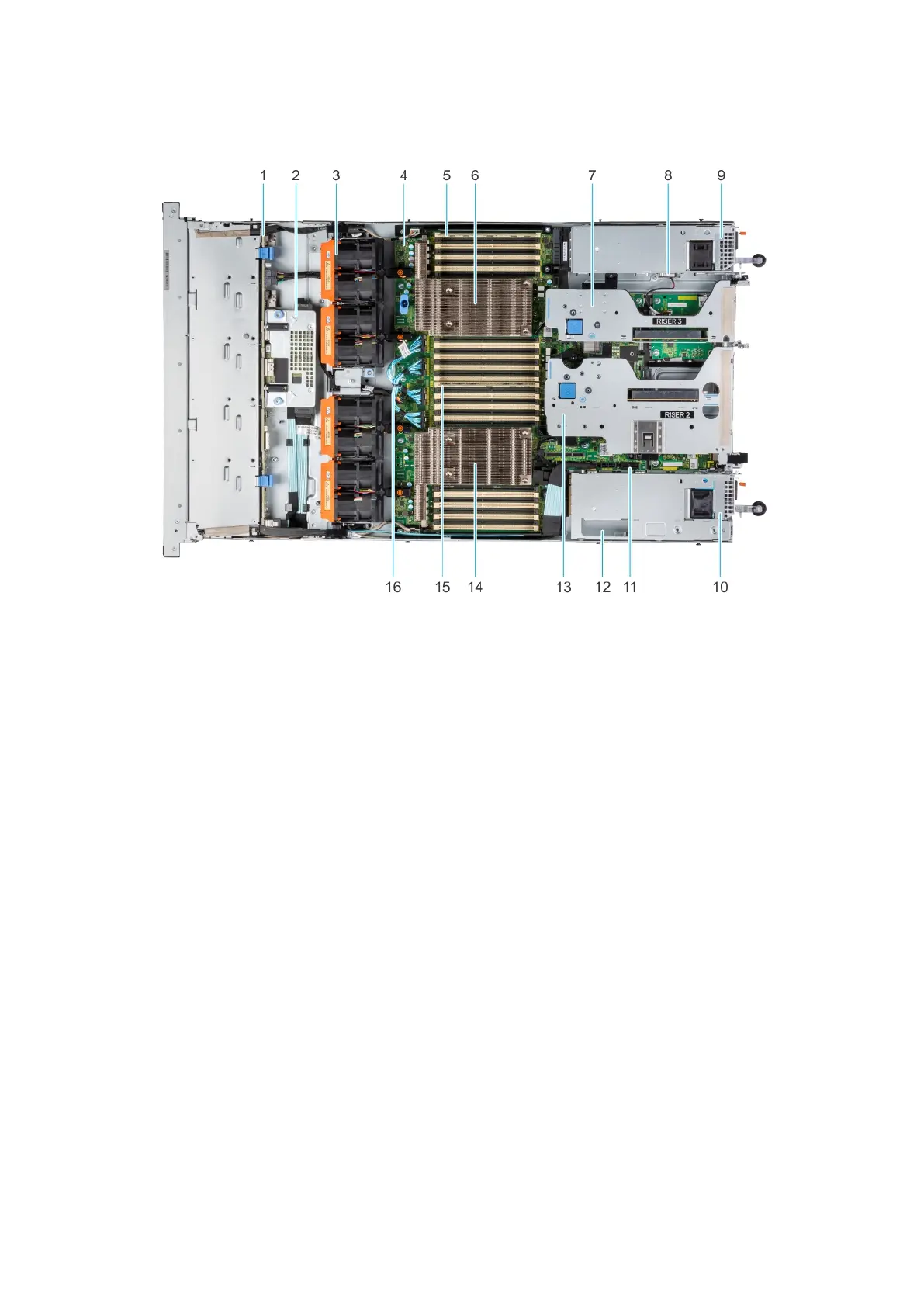

Figure 10. Inside the system
1.
Drive backplane 2. Rear mounting front PERC module
3. Dual fan module (4) 4. System board
5. Memory DIMM socket for processor 2 (B1) 6. Heat sink for processor 2
7. Riser 3 8. Intrusion switch
9. Power supply unit (PSU 2) 10. Power supply unit (PSU 1)
11. IDSDM/Internal USB card port 12. BOSS slot
13. Riser 2 14. Heat sink for processor 1
15. Memory DIMM socket for processor 1 (A1) 16. xGMI cables
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The information tag is located on the front of the system that includes system information such as Service Tag, Express
Service Code, Manufacture date, NIC, MAC address, QRL label, and so on. If you have opted for the secure default access
to iDRAC, the Information tag also contains the iDRAC secure default password. If you have opted for iDRAC Quick Sync
2, the Information tag also contains the OpenManage Mobile (OMM) label, where administrators can configure, monitor, and
troubleshoot the PowerEdge servers.
System overview
17
