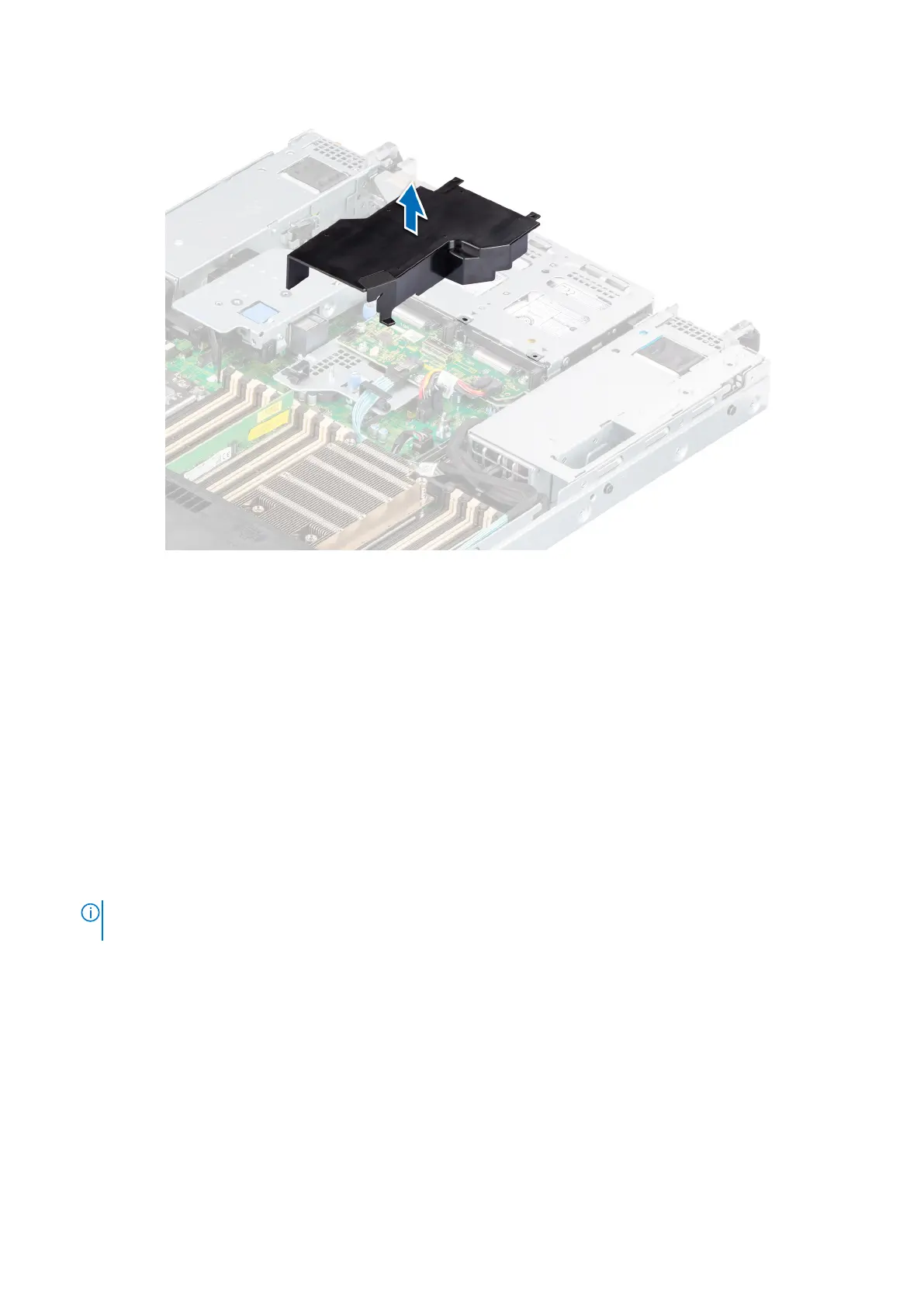

Figure 28. Removing the air shroud from the rear drive module
Next steps
1. Replace the air shroud.
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the slot on the air shroud with the standoff on the system.
2. Lower the air shroud into the system until it is firmly seated.
NOTE:
The air shroud is required for the standard heat sink configuration. For the L-type heat sink configuration, air
shroud is not supported.
