Dell EMC PowerEdge R6525 User Manual

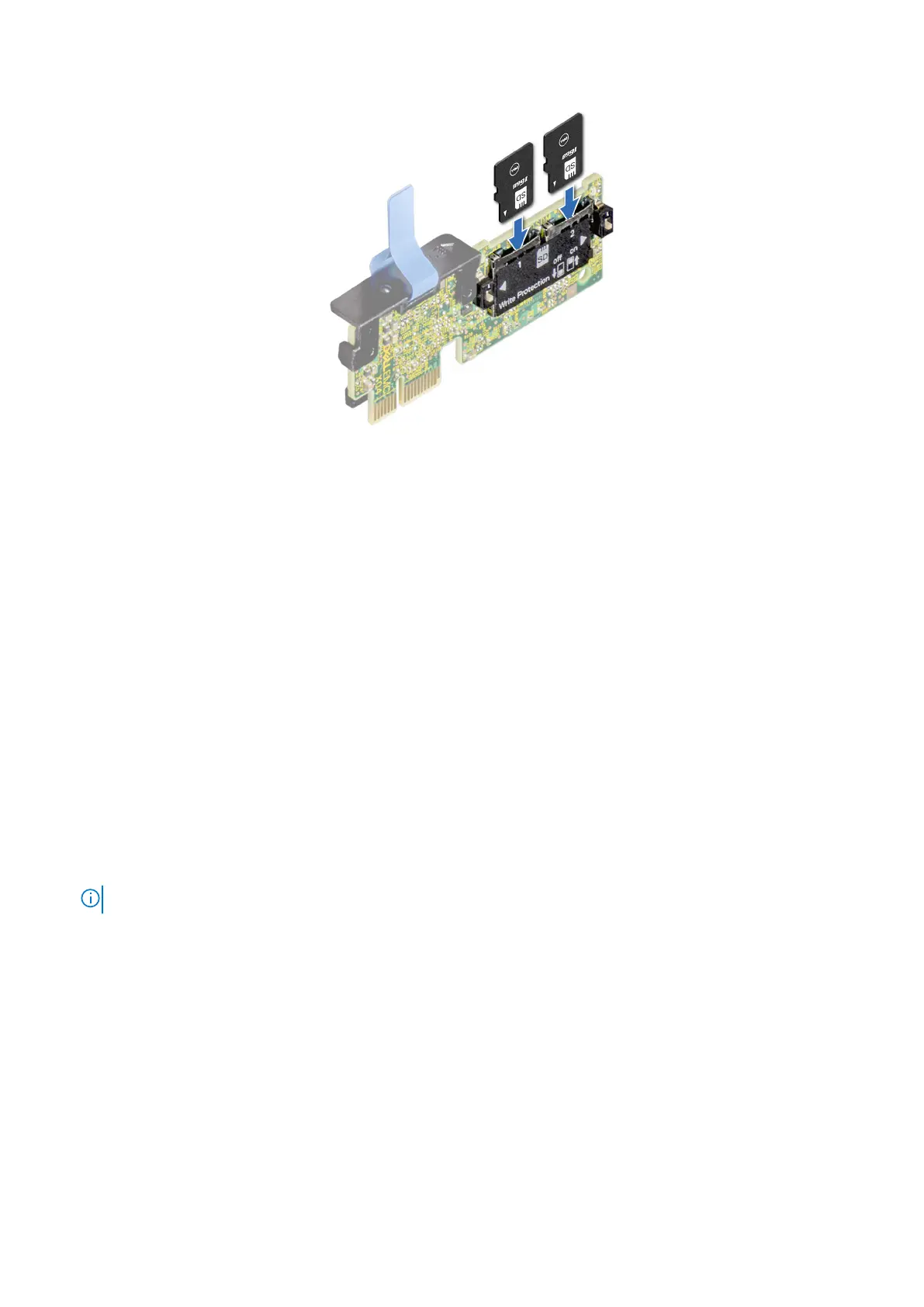

Figure 103. Installing the MicroSD card
Next steps
1. Install the IDSDM module.
2. Follow the procedure listed in After working inside your system.
M.2 SSD module on BOSS-S1 adapter card
Removing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the BOSS card. The BOSS card removal is similar to removing expansion card from the expansion card riser.
Steps
1. Using the Phillips #1 screwdriver, remove the screws securing the M.2 SSD module to the BOSS card.
2. Pull the M.2 SSD module to disconnect from the BOSS card connector.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 119
