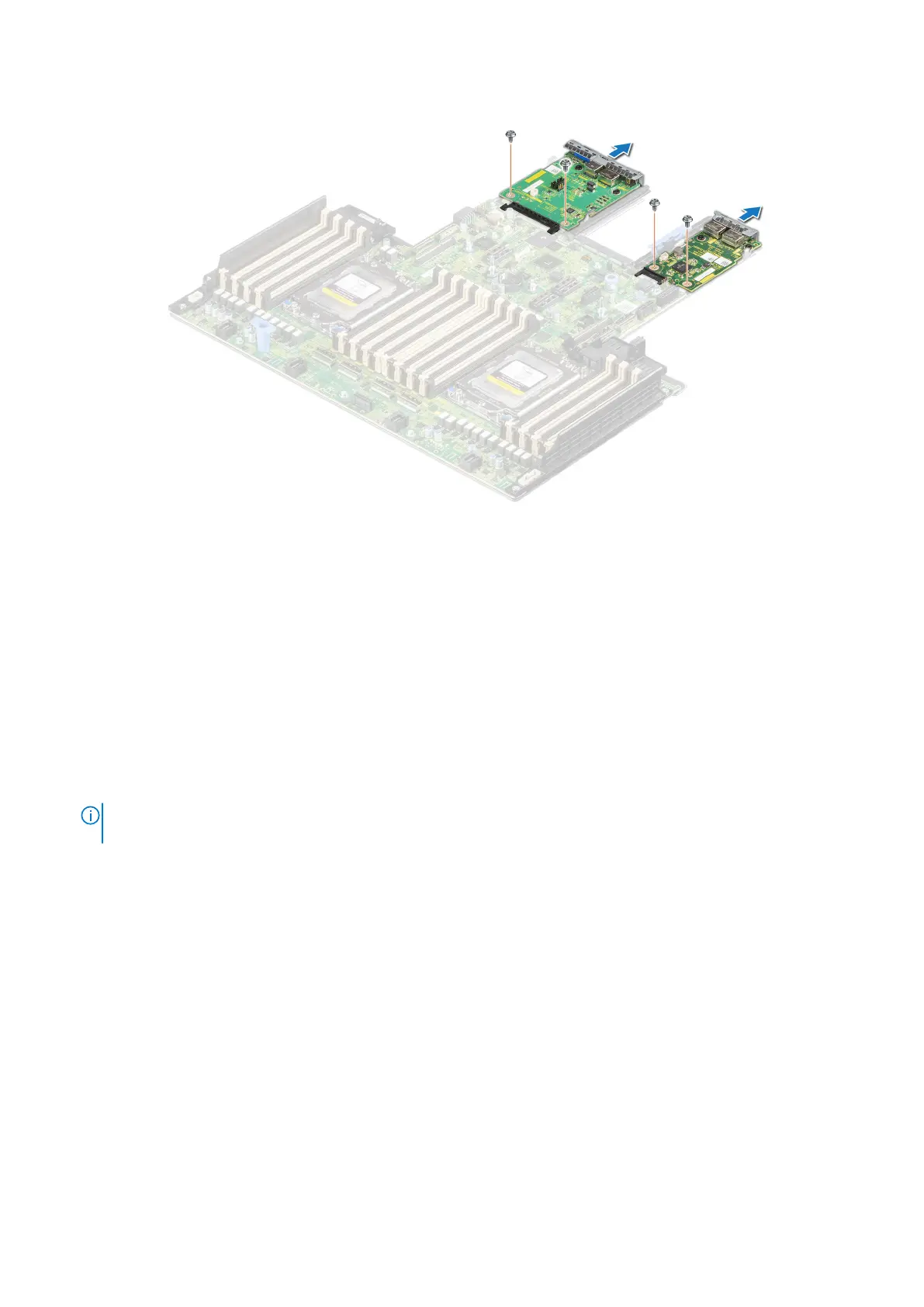

Figure 133. Removing the RIO card
Next steps
1. Replace the RIO card.
Installing the RIO card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the system board.
4. If required, remove the LOM card.
NOTE:
Upgrading the system board with the liquid cooling solution requires the LOM card to be replaced with the RIO
card.
Steps
1. Align the connectors and slots on RIO card with the connector and standoffs on the system board.
2. Press the RIO card until firmly seated on the system board connector.
3. Using a Phillips #2 screwdriver, secure the RIO card to the system board with the two screws.
Installing and removing system components
147
