4. Using the Phillips #1 screwdriver, tighten the screws to secure the left control panel to the system.

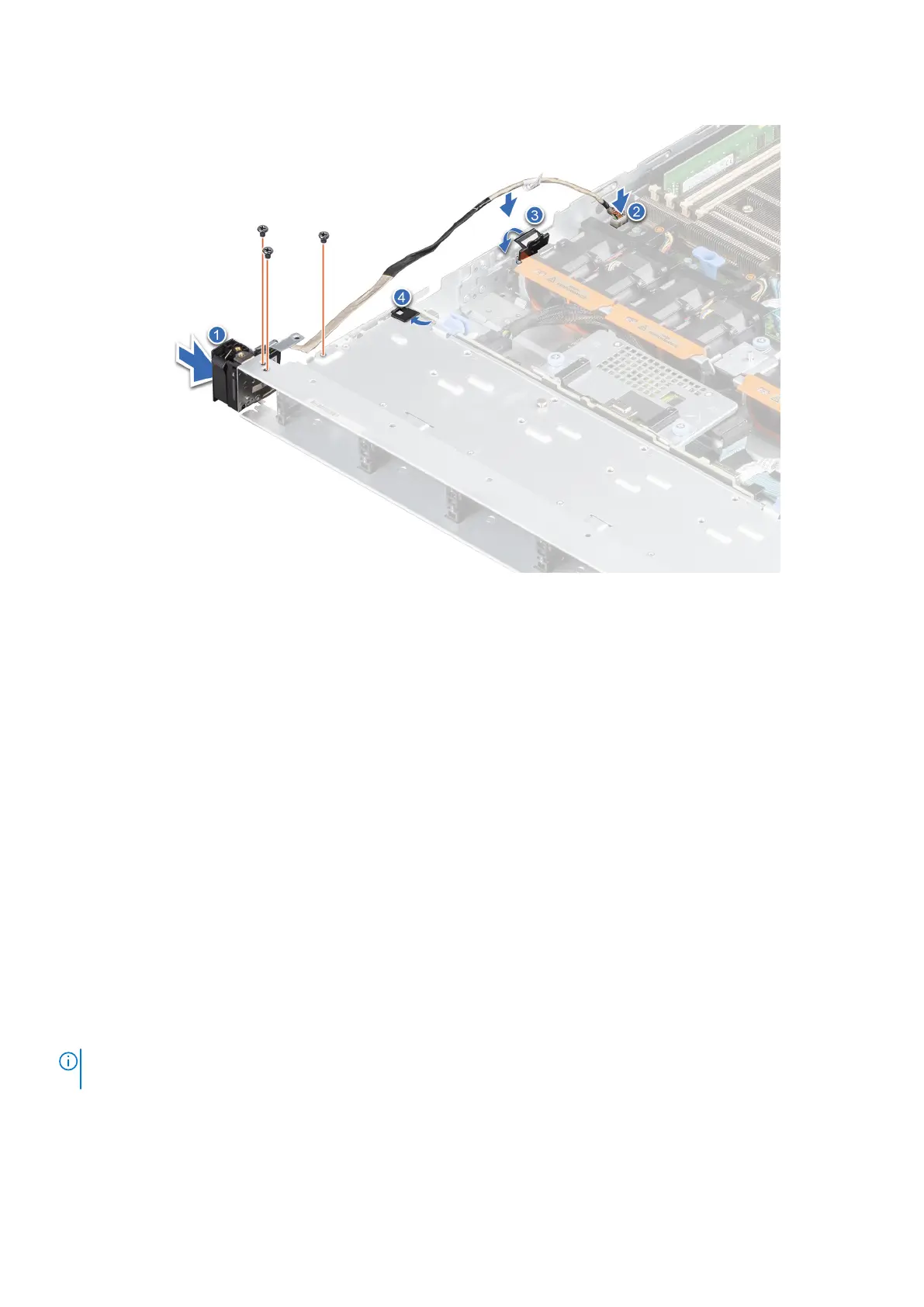

Figure 24. Installing the left control panel
Next steps
1. Install the drive backplane cover.
2. If removed, install the air shroud.
3. Follow the procedure listed in After working inside your system.
VGA module
Removing the VGA module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If installed, remove the front bezel.
4. Remove the backplane cover.
5. If installed, remove the air shroud.
6. Disconnect the VGA cable from the connector on the system board and open the cable latch.
7. Disconnect the right control panel cable from the system board and move it away to see the VGA module screw on the
system.
NOTE:
Ensure that you note the routing of the cables as you remove them from the system board. Route the cable
properly when you replace it to prevent the cable from being pinched or crimped
Steps
1. Using Phillips #2 screwdriver, remove the screw on the VGA module.
2. Slide the VGA module out of the system.
36
Installing and removing system components
