Dell Latitude D630 User Manual

122 Adding and Replacing Parts
NOTICE: To avoid damaging the WLAN card, never place cables on top of or under the card.
NOTE: Your WLAN card may have two or three connectors, depending on the type of card you ordered.
NOTE: For more specific information about which cable to connect to which connector, see the documentation
that came with your WLAN card.
c
Connect the antenna cables to the WLAN card, ensuring that you route the cables correctly.
Mobile Broadband Card
NOTE: Mobile Broadband cards may not be available in all regions.
If you ordered a Mobile Broadband card with your computer, the card is already installed.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
1 Follow the procedures in "Before You Begin" on page 109.
2 Remove the hinge cover (see "Hinge Cover" on page 111).
3 Remove the keyboard (see "Keyboard" on page 111).

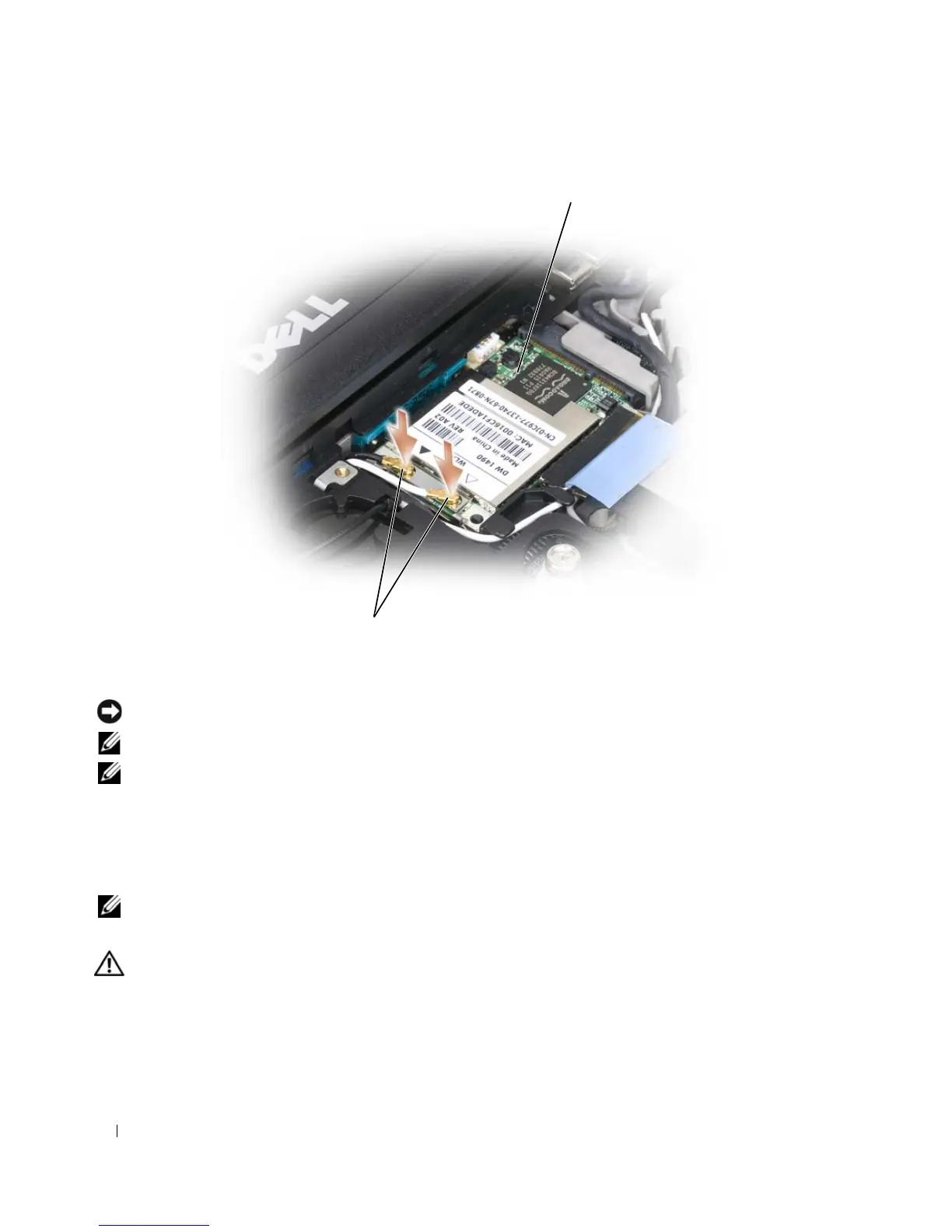

1 WLAN card 2 antenna cable connectors
1
2

Dell Latitude D630 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black, Grey
Memory slots	2x SO-DIMM
Internal memory	2 GB
Memory clock speed	667 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
3D	No
AC adapter included	Yes
Disc types supported	CD, DVD
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	-
Total storage capacity	80 GB
Number of HDDs installed	1
Pixel pitch	0.2373 x 0.2373 mm
Display diagonal	14.1 \
Display brightness	220 cd/m²
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Maximum on-board graphics card memory	- GB
On-board graphics card dynamic frequency (max)	- MHz
Speaker power	2 W
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Operating shock	143 G
Operating altitude	-15.2 - 3048 m
Non-operating shock	163 G
Operating vibration	0.66 G
Non-operating altitude	-15.2 - 10668 m
Non-operating vibration	1.3 G
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	ENERGY STAR
Tcase	- °C
Bus type	FSB
Stepping	M0
Tjunction	100 °C
Processor cache	2 MB
Processor cores	2
Processor model	T7250
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo T7000 Series
Processor socket	Socket 478
Processor codename	Merom
Processing Die size	143 mm²
Processor frequency	2 GHz
Processor cache type	L2
Configurable TDP-down	- W
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	800 MHz
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	10
Number of Processing Die Transistors	291 M
Processor code	SLA49
Processor ARK ID	31728
Processor package size	35 x 35 mm
Graphics & IMC lithography	- nm

Weight and Dimensions

Depth	238 mm
Width	337 mm
Height	32.3 mm
Weight	2270 g
