Steps
1. Using the pull tab, disconnect the camera cable from the camera module.
2. Using a plastic scribe, pry the camera module from the display assembly.
NOTE: Start prying the camera module in a sequential order 1>2>3 as indicated on the display back cover.
3. Lift the camera module from the display assembly.
Installing the camera module (with plastic chassis)
CAUTION: The information in this section is intended for authorized service technicians only.
NOTE: This procedure is applicable for systems shipped with a plastic chassis only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

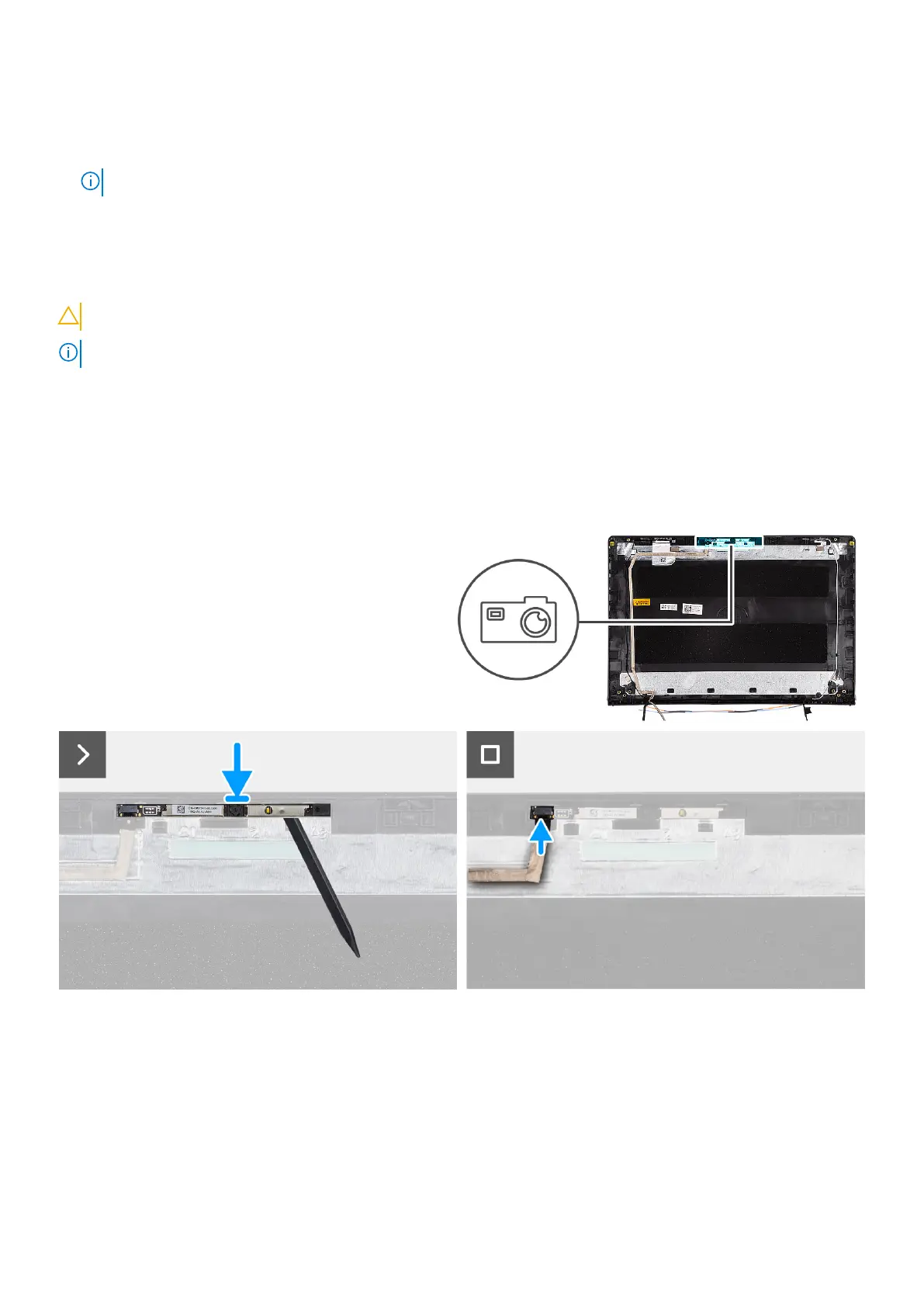

The following images indicate the location of the camera module (in a system shipped with plastic chassis) and provide a visual
representation of the installation procedure.
Steps
1. Adhere the camera module in its slot on the display assembly.
2. Connect the camera cable to the camera module.
Next steps
1. Install the eDP cable.
2. Install the display panel.
3. Install the hinges.
120
Removing and installing Field Replaceable Units (FRUs)
