About this task

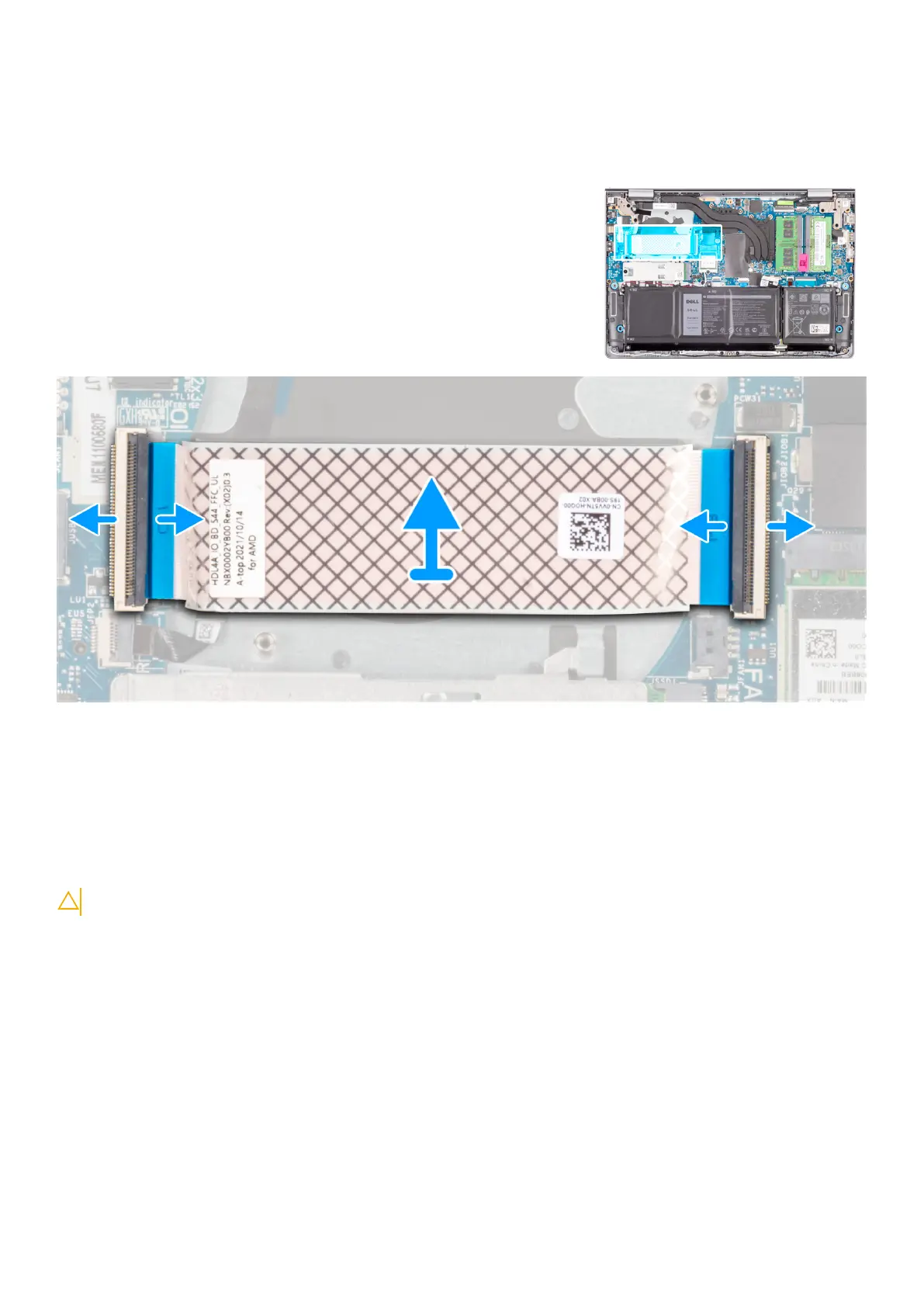

The following image indicates the location of the Input/Output daughter board FFC and provides a visual representation of the
removal procedure.
Steps
1. Open the latch and disconnect the I/O daughter board cable from the I/O board.
2. Open the latch and disconnect the I/O daughter board cable from the system board.
3. Lift the I/O daughter board cable off the palm-rest and keyboard assembly.
Installing the Input/Output daughter board FFC
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the I/O daughter board FFC and provide a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs)
75
