Steps

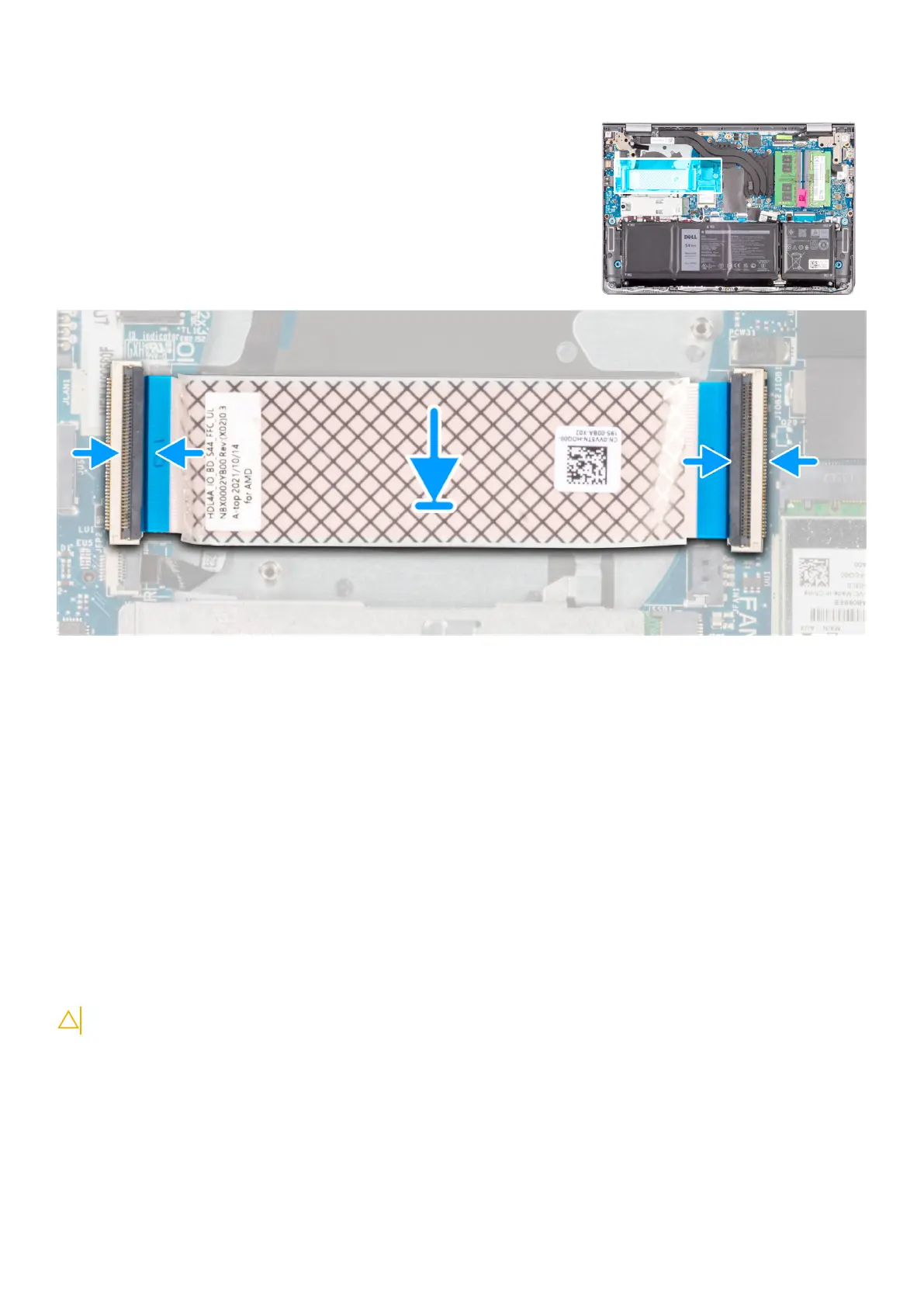

1. Place the I/O daughter board FFC on the palm-rest and keyboard assembly.
2. Connect the I/O daughter board FFC the connector on the I/O board.
3. Connect the I/O daughter board FFC the connector on the system board.
Next steps
1. Install the fan.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the M.2 2230 solid state drive or M.2 2280 solid state drive (whichever applicable).
5. Remove the wireless card.
76
Removing and installing Field Replaceable Units (FRUs)
To Next Page
