Steps

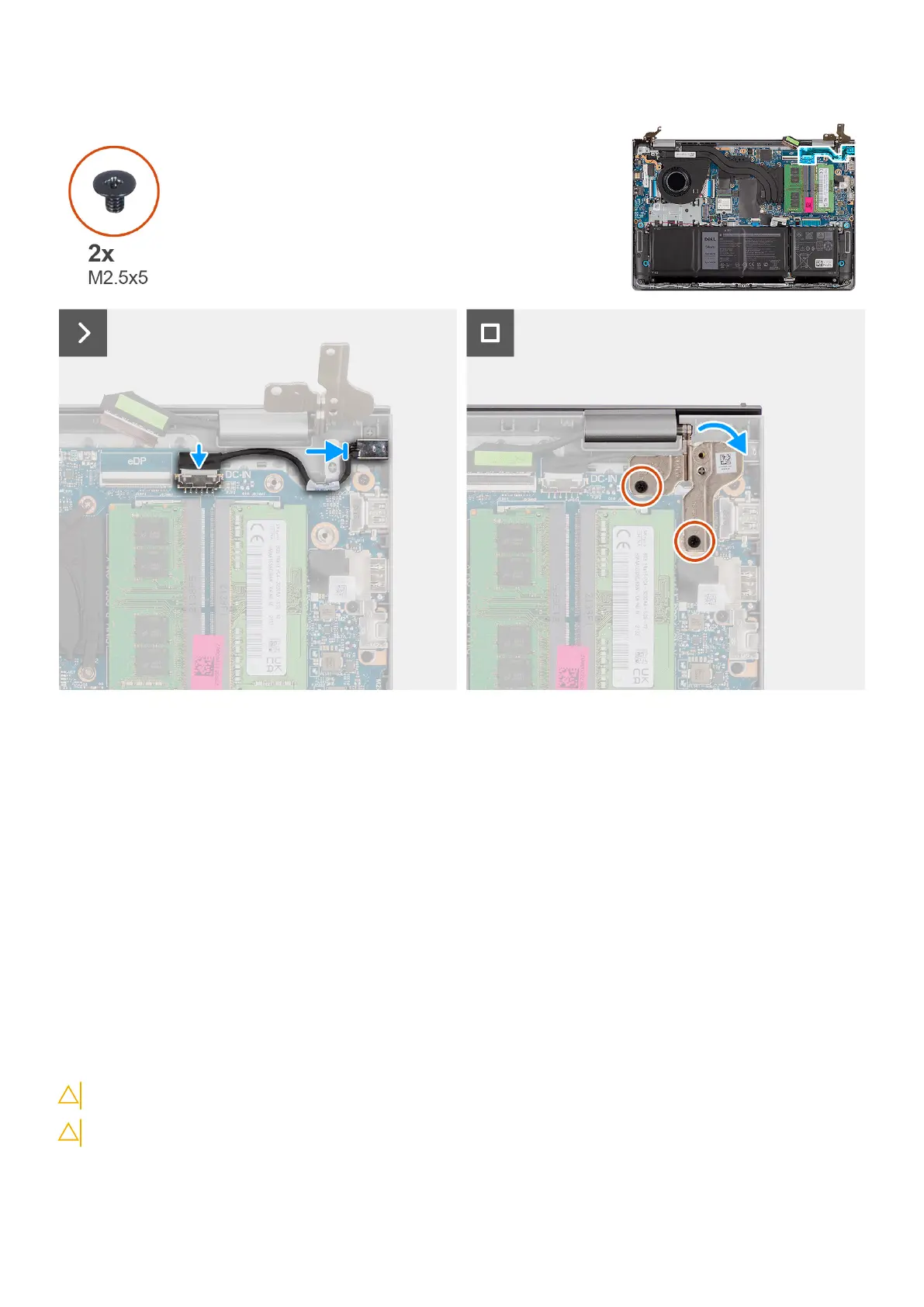

1. Using the alignment post, place the power-adapter port into its slot on the palm-rest and keyboard assembly.
2. Connect the power-adapter port cable to the connector on the system board.
3. Fold the right hinge down and install the two (M2.5x5) screws to secure it to the palm-rest and keyboard assembly.
Next steps
1. Install the wireless card.
2. Install the M.2 2230 solid state drive or M.2 2280 solid state drive (whichever applicable).
3. Install the base cover.
4. Install the SD card.
5. Follow the procedure in After working inside your computer.
Display assembly
Removing the plastic display assembly
CAUTION: The information in this section is intended for authorized service technicians only.
CAUTION: The maximum operating angle for the display-panel hinge is 135 degrees.
78 Removing and installing Field Replaceable Units (FRUs)
