Major components of Inspiron 16 Plus 7630

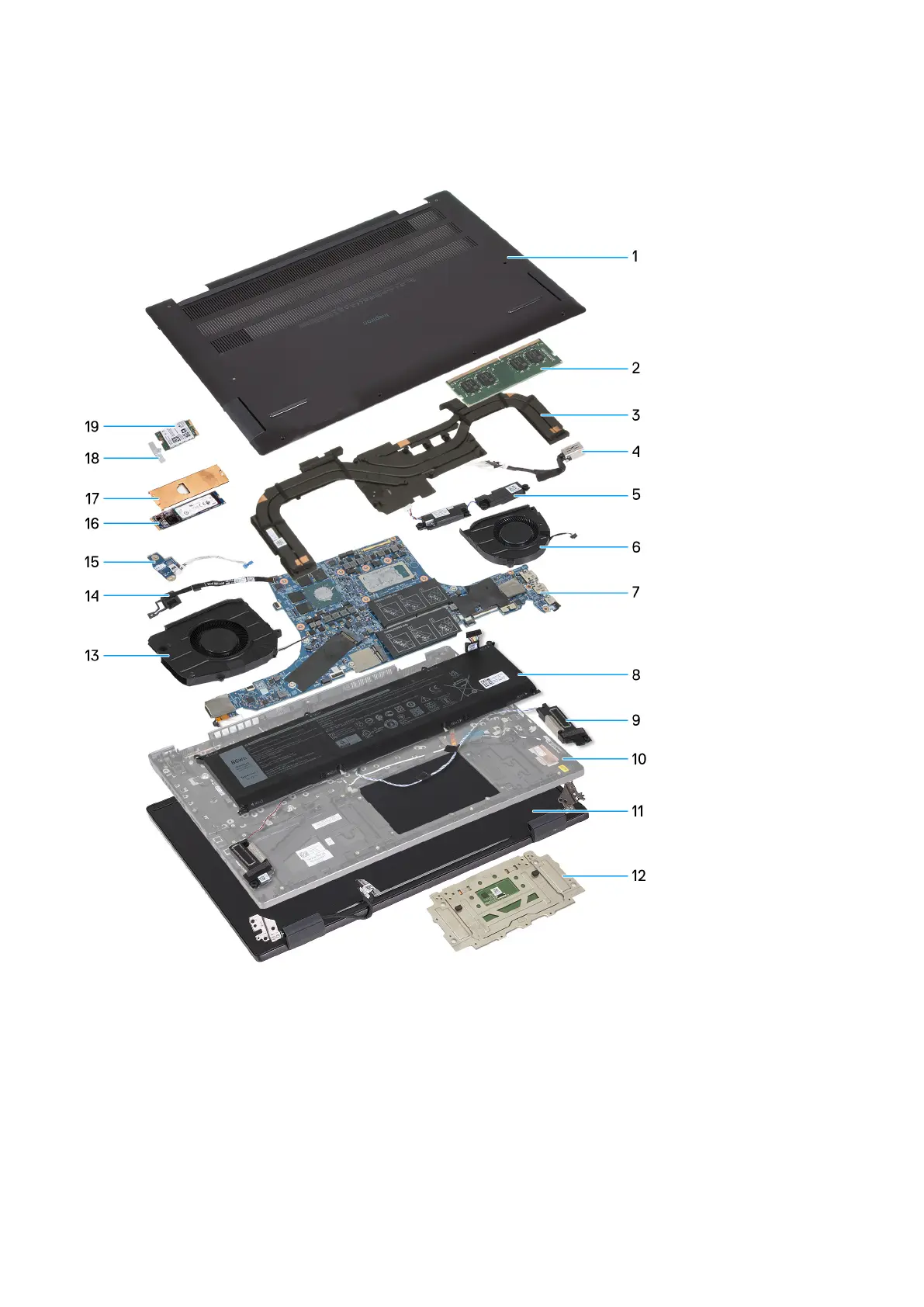

The following image shows the major components of Inspiron 16 Plus 7630.
1. Base cover 2. Memory module
3. Heat sink 4. Power-adapter cable
5. Speakers (tweeters) 6. Right fan
7. System board 8. Battery
9. Speakers (woofers) 10. Palm-rest and keyboard assembly
11. Display assembly 12. Touchpad with touchpad bracket
13. Left fan 14. Power-button with optional fingerprint-reader cable
15. Power-button board 16. M.2 2280 solid-state drive
17. M.2 solid-state drive thermal shield 18. M.2 wireless card
19. M.2 wireless card bracket
