1. Peel back the Mylar covering the right fan cable.
2. Disconnect the right-fan cable from the its connector on the system board.
3. Remove the two screws (M2x5) that secure the right fan to the palm-rest and keyboard assembly.
4. Lift the right fan off the palm-rest and keyboard assembly.
Installing the right fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

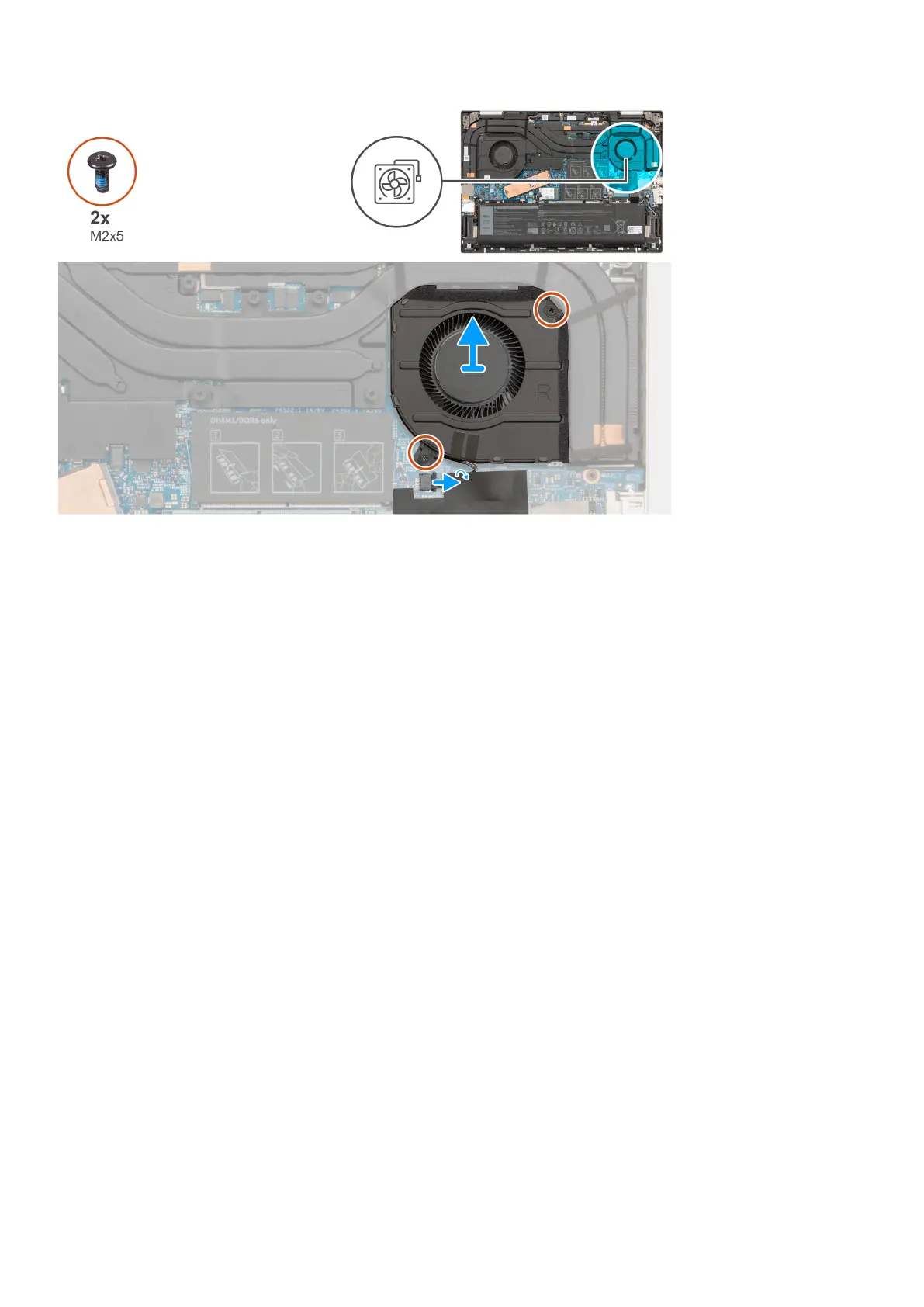

The following image(s) indicate the location of the right fan and provides a visual representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
