NOTE: Repeat steps 1 to 4 for the second memory module being installed into your computer.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Fans
Removing the left fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
2. Remove the base cover.
About this task

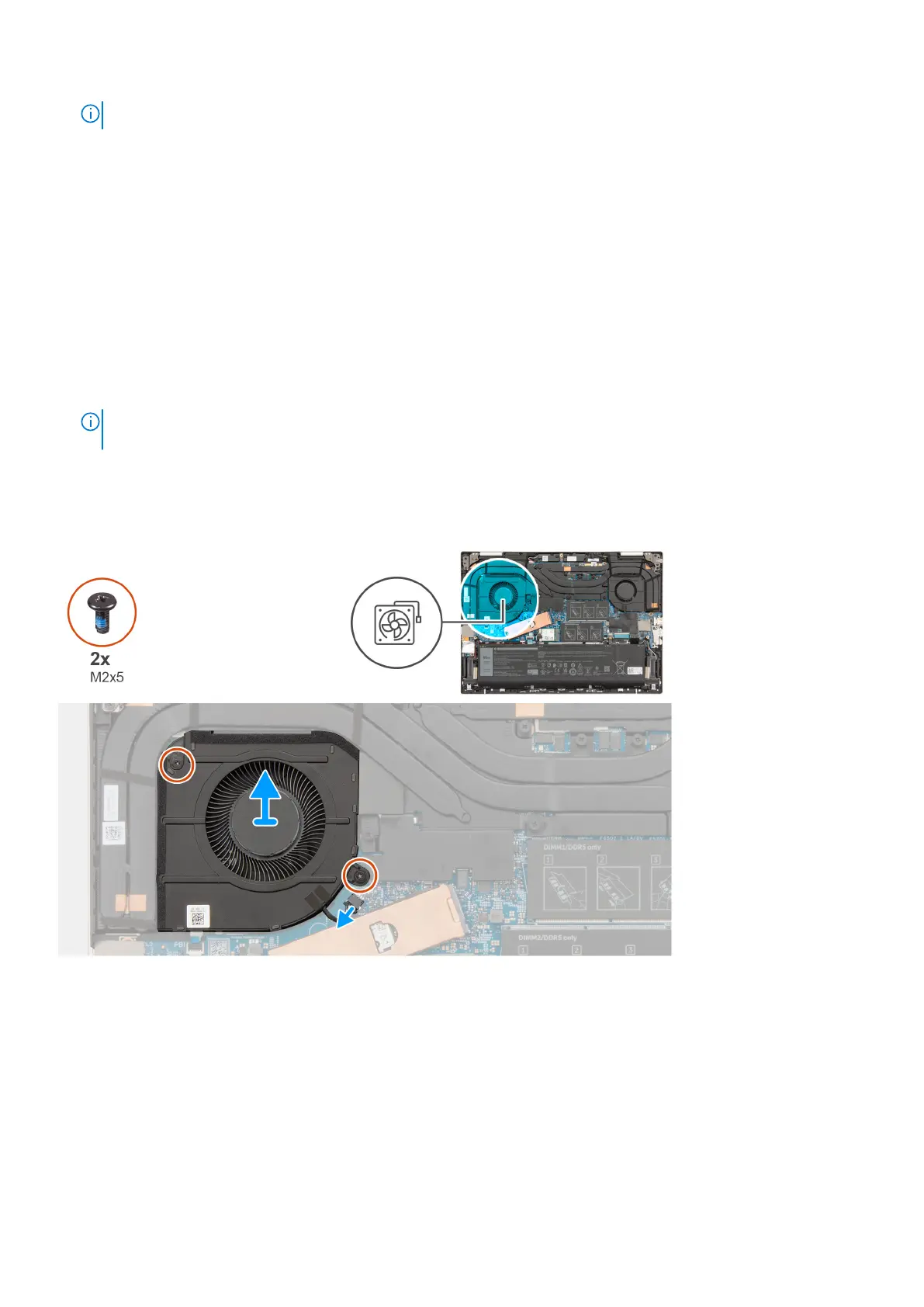

The following image(s) indicate the location of the left fan and provides a visual representation of the removal procedure.
Steps
1. Disconnect the left-fan cable from its connector on the system board.
2. Remove the two screws (M2x5) that secure the left fan to the palm-rest and keyboard assembly.
3. Lift the left fan off the palm-rest and keyboard assembly.
Installing the left fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
Removing and installing Customer Replaceable Units (CRUs)
49
