Steps
1. In reverse sequential order (7>6>5>4>3>2>1), loosen the seven captive screws that secure the heat sink to the system
board.
2. Lift the heat sink off the system board.
Installing the heat sink
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

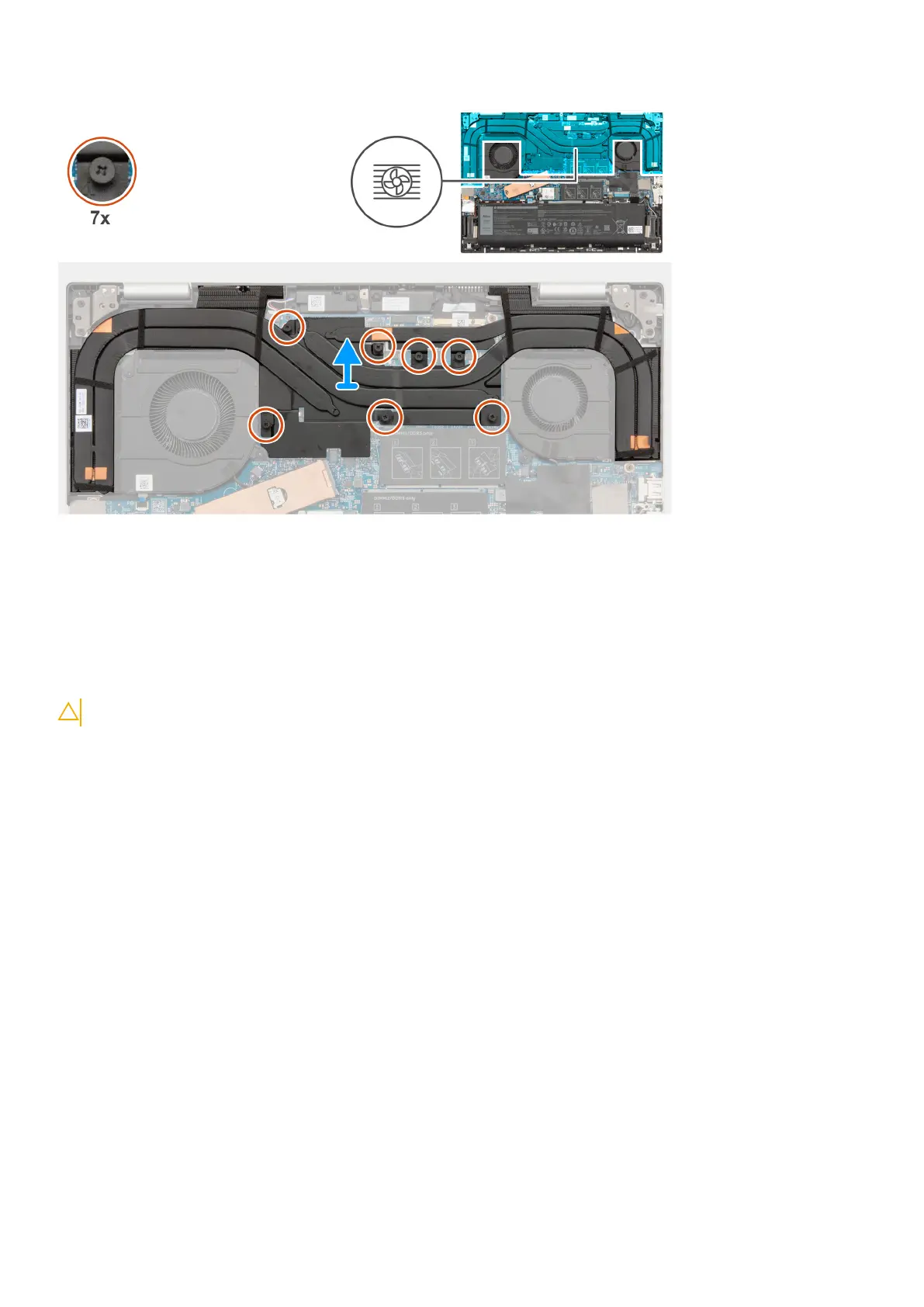

The following image(s) indicate the location of the heat sink and provides a visual representation of the installation procedure.
66
Removing and installing Field Replaceable Units (FRUs)
To Next Page
