Removing the speakers (tweeters)
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
2. Remove the base cover.
About this task

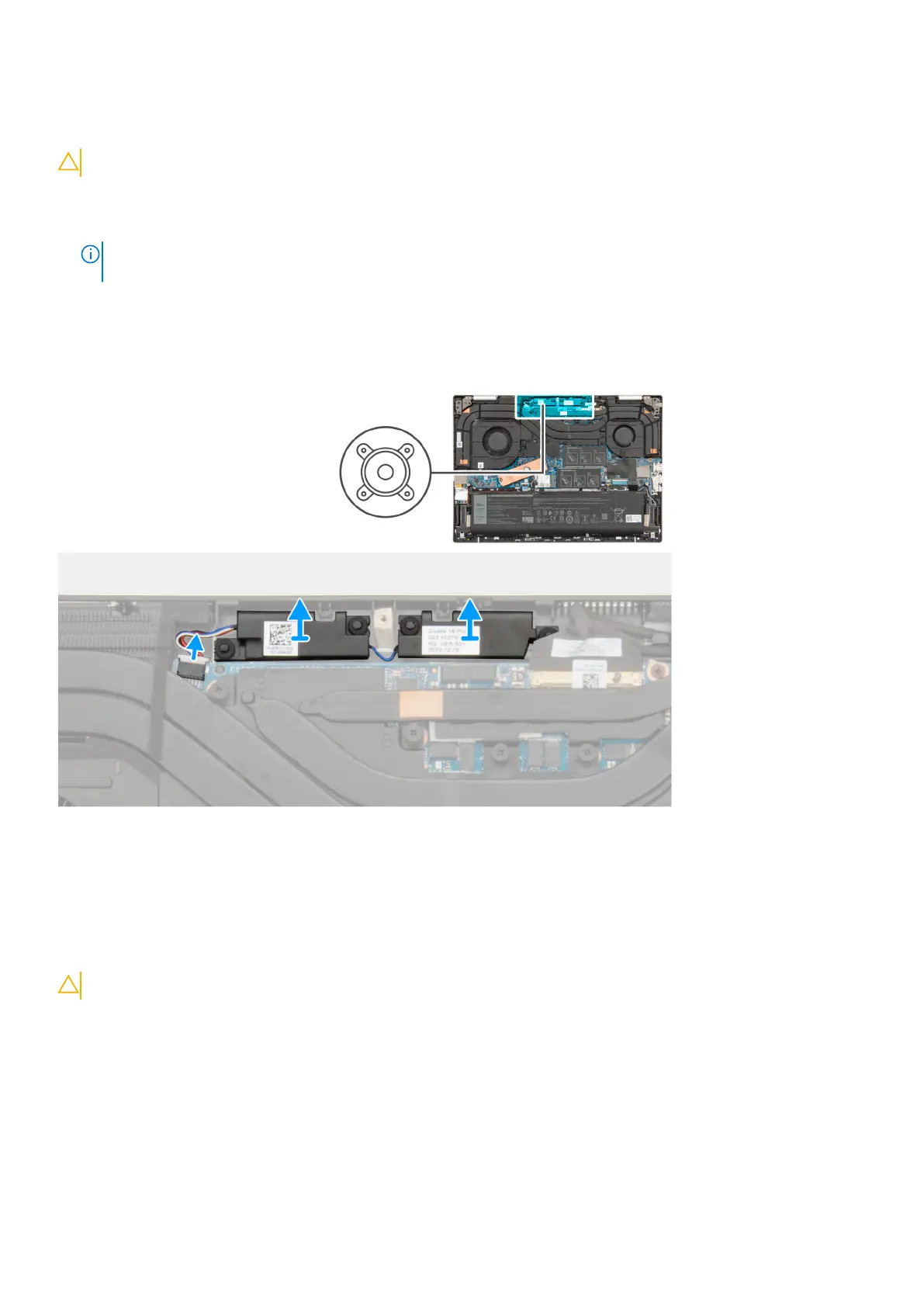

The following image(s) indicate the location of the speakers (tweeters) and provides a visual representation of the installation
procedure.
Steps
1. Disconnect the speakers (tweeters) cable from its connector on the system board.
2. Lift the speakers (tweeters) and their cables off the palm-rest and keyboard assembly.
Installing the speakers (tweeters)
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the speakers (tweeters) and provides a visual representation of the installation
procedure.
64
Removing and installing Field Replaceable Units (FRUs)
