Steps
1. Flip over the battery.
2. Peel the adhesive tape that secures the battery cable to the connector on the battery.
3. Disconnect the battery cable from its connector on the battery.
4. Peel the battery cable away from the battery.
Installing the battery cable
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

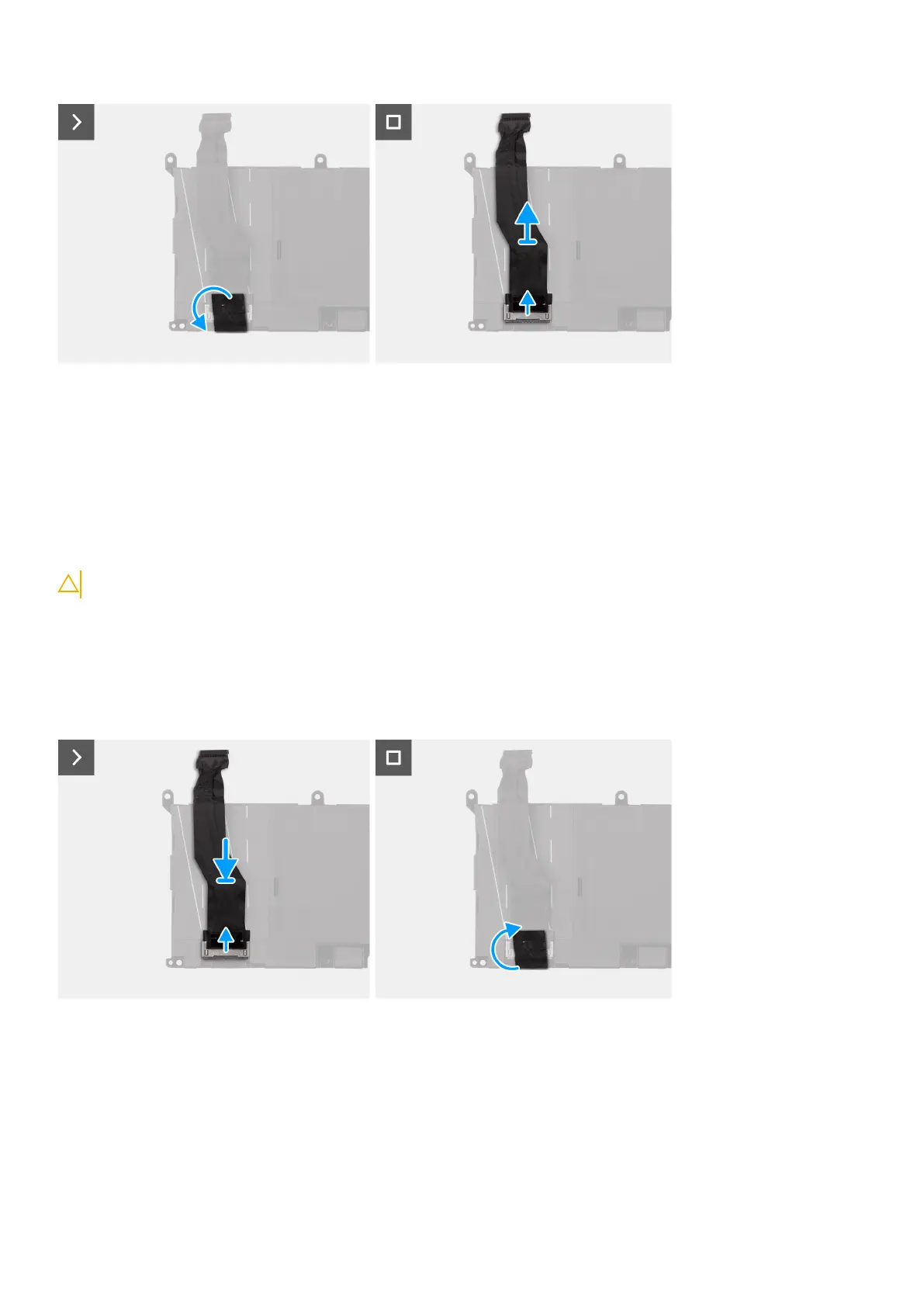

The following image indicates the location of the battery cable and provides a visual representation of the installation procedure.
Installing the battery cable
Steps
1. Connect the battery cable to its connector on the battery.
2. Using the markings on the battery, adhere the battery cable to the battery.
3. Adhere the tape that secures the battery cable to its connector on the battery.
Next steps
1. Install the battery.
56
Removing and installing Field Replaceable Units (FRUs)
