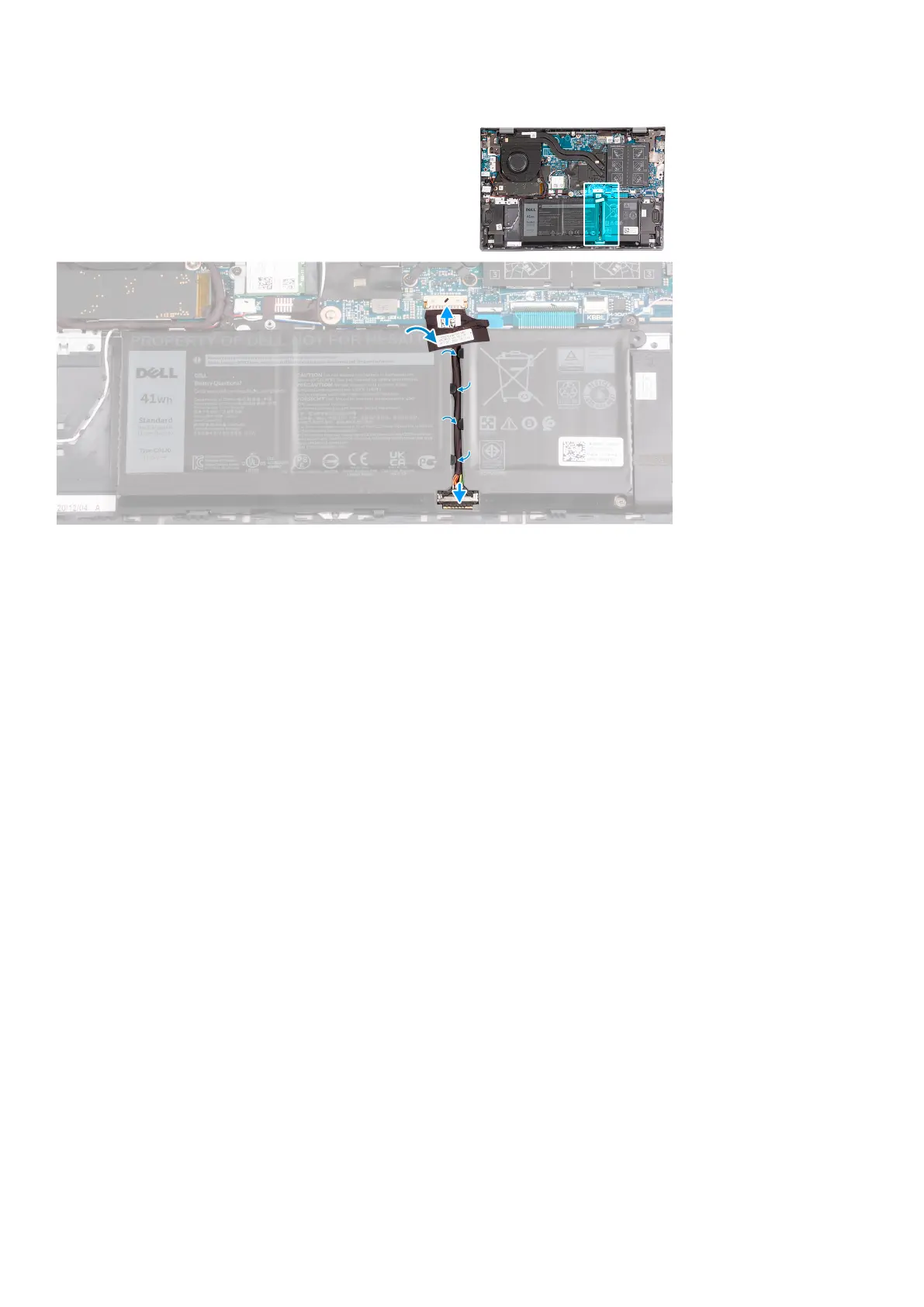

Steps
1. Connect the battery cable to the 3-cell battery.
2. Route the battery cable through the routing guides on the 3-cell battery.
3. Connect the battery cable to the system board.
4. Adhere the tape that secures the battery cable to the 3-cell battery.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the 4-cell battery cable
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image(s) indicate the location of the 4-cell battery cable and provides a visual representation of the removal
procedure.
Removing and installing components
17
