Steps
1. Peel the tape that secures the display-cable connector latch to the system board.
2. Lift the latch and disconnect the display-cable from the connector on the system board.
3. Remove the two screws (M2.5x4) that secure the right-display hinge to the system board.
4. Pry open the right-display hinge at an angle of 90 degrees.
5. Remove the two screws (M2.5x4) that secure the left-display hinge to the I/O board.
6. Pry open the left-display hinge at an angle of 90 degrees.
7. Gently lift the palm-rest and keyboard assembly off the display assembly
CAUTION:
To avoid damaging the display, do not slide the palm-rest and keyboard assembly over the display
assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

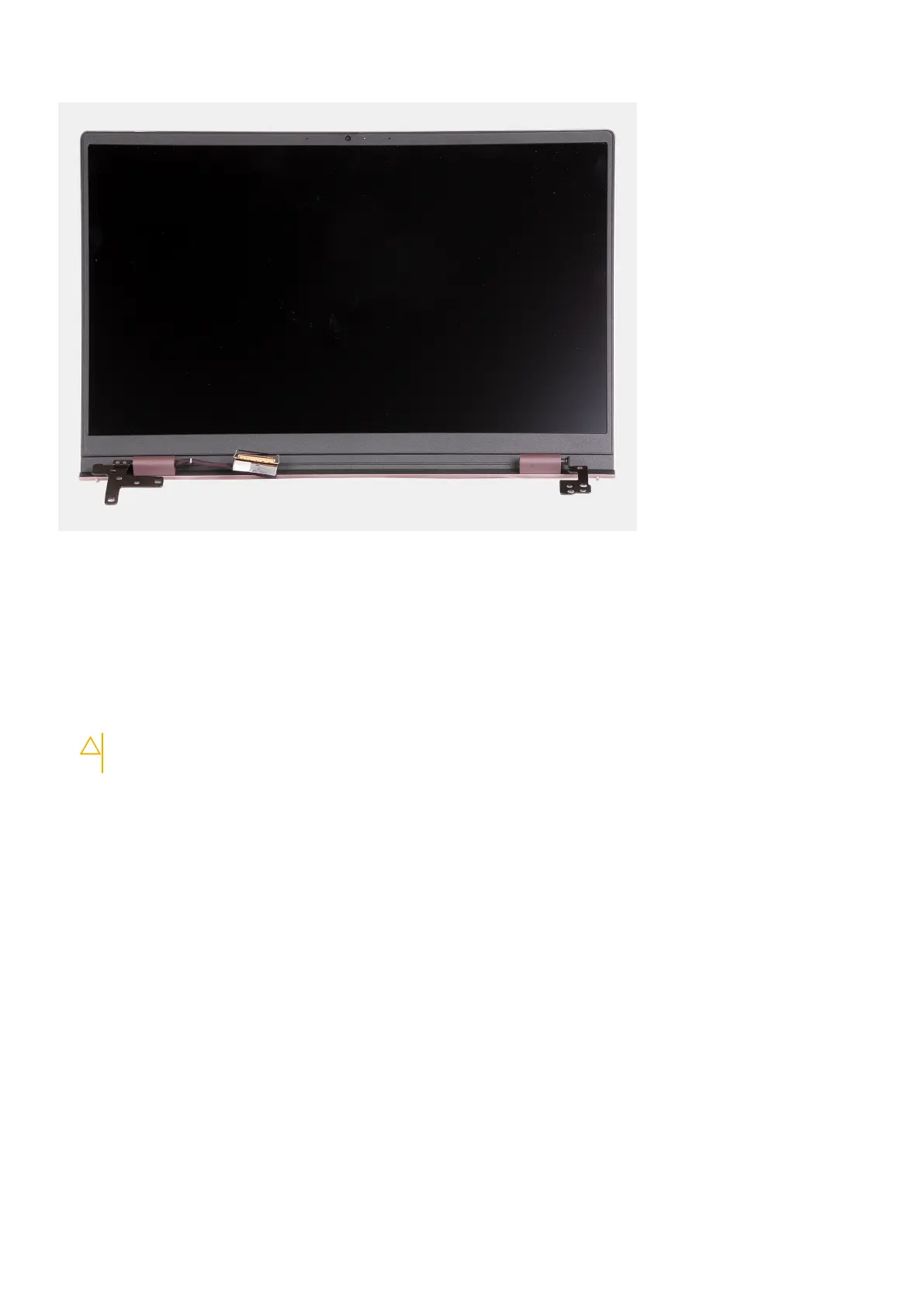

The following image(s) indicate the location of the display assembly and provides a visual representation of the installation
procedure.
