Steps

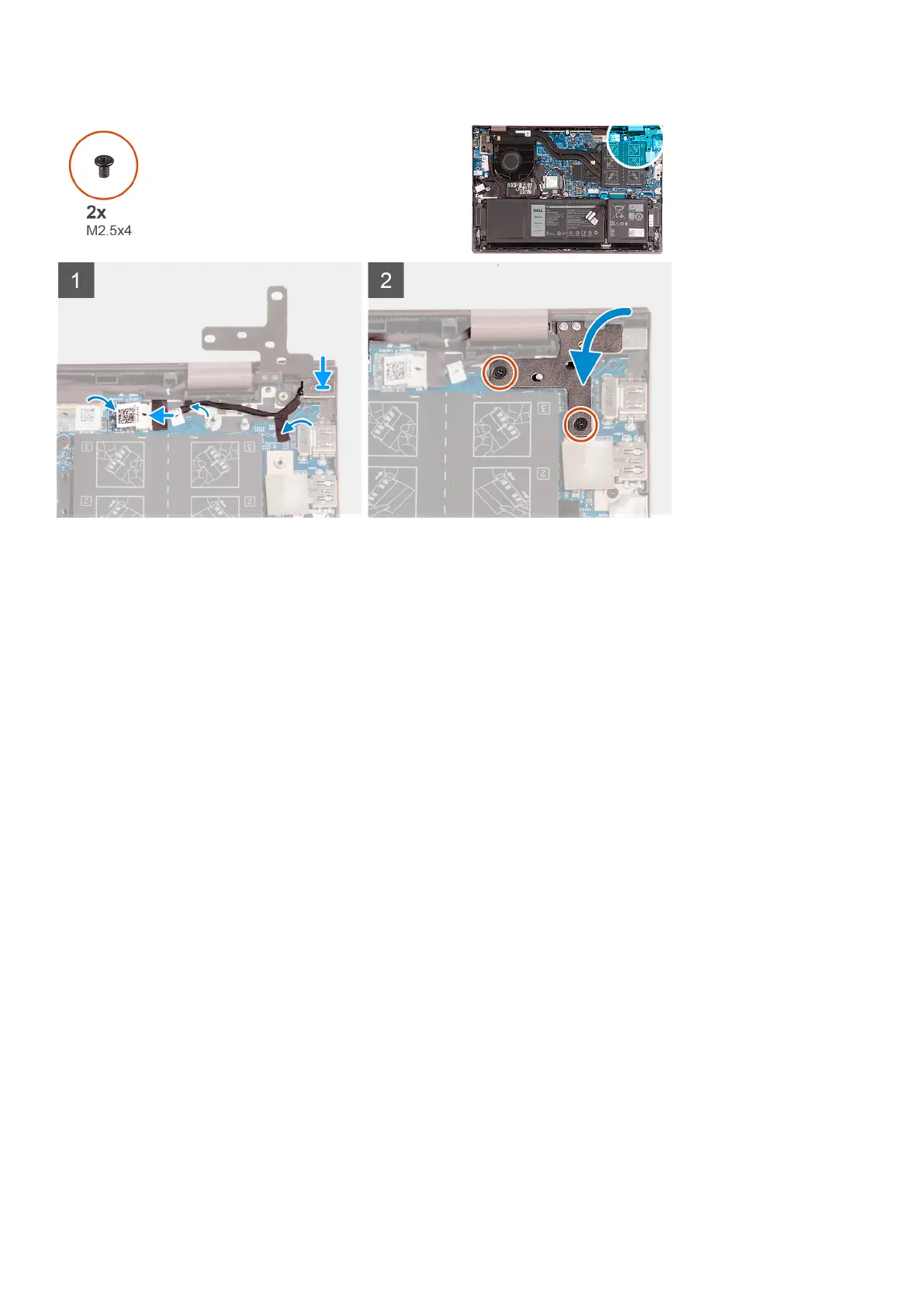

1. Connect the power-adapter port cable to the system board.
2. Adhere the tape that covers the power-adapter port connector on the system board.
3. Route the power-adapter port cable through the routing guides on the palm-rest and keyboard assembly.
4. Place the power-adapter port into the slot on the palm-rest and keyboard assembly.
5. Close the right-display hinge and align the screw holes on the right-display hinge with the screw holes on the system board.
6. Replace the two screws (M2.5x4) that secures the right-display hinge to the system board.
Next steps
1. Install the base cover.
2. Exit Service Mode.
3. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the base cover.
About this task
The following image(s) indicate the location of the display assembly and provides a visual representation of the removal
procedure.
Removing and installing components
37
