Steps
1. Using the alignment posts, place the left and right speakers on the palm-rest and keyboard assembly.
NOTE: Ensure that the alignment posts are threaded through the rubber grommets on the speaker.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Connect the speaker cable to the connector on the system board.
4. Adhere the tape that secures the speaker cable to the palm-rest and keyboard assembly.
5. Connect the touchpad cable to the system board and close the latch.
6. Connect the keyboard cable to the system board and close the latch.
7. Connect the keyboard-backlight cable to the system board and close the latch.
8. Place the I/O-board and antenna cables back into place and adhere the tapes that secure them to the palm-rest and
keyboard assembly.
Next steps
1. Install the 3-cell battery or the 4-cell battery, whichever applicable.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the 3-cell battery or the 4-cell battery, whichever applicable.
About this task

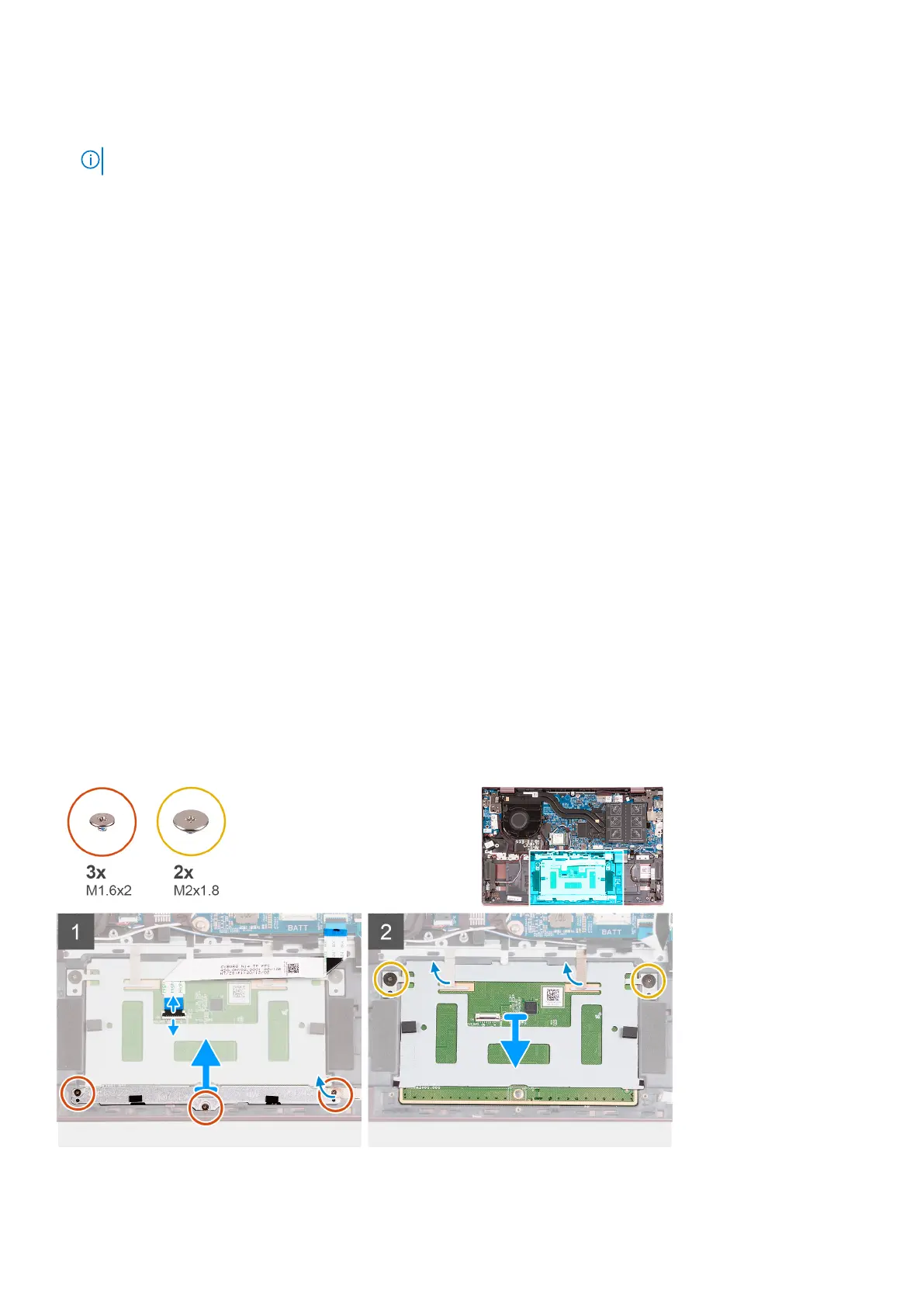

The following image(s) indicate the location of the touchpad and provides a visual representation of the removal procedure.
Removing and installing components
45
