● If the battery gets stuck inside your computer as a result of swelling, do not try to release it as puncturing,
bending, or crushing a lithium-ion battery can be dangerous. In such an instance, contact Dell technical
support for assistance. See www.dell.com/contactdell.
● Always purchase genuine batteries from www.dell.com or authorized Dell partners and resellers.
Removing the 3-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

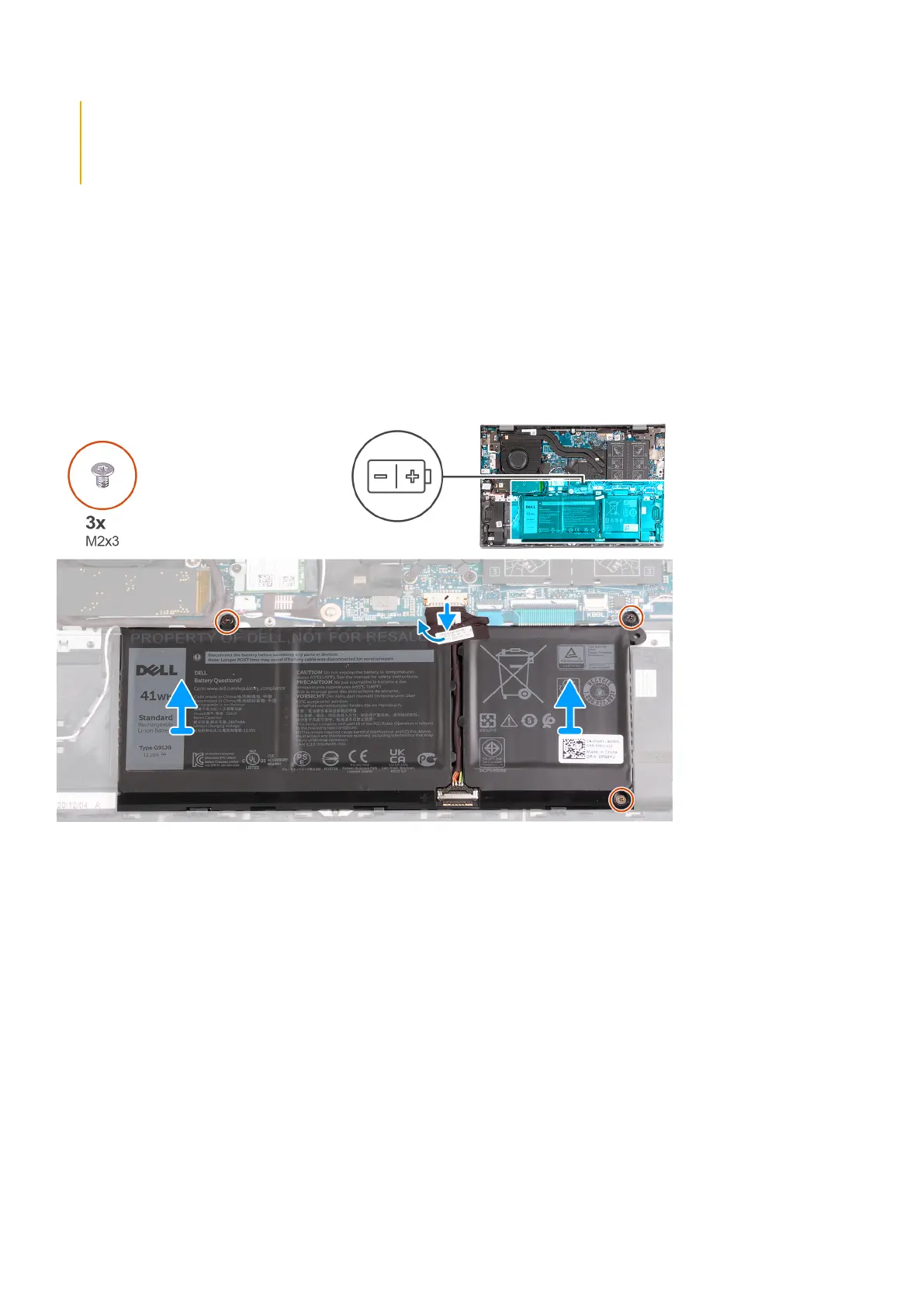

The following image(s) indicate the location of the 3-cell battery and provides a visual representation of the removal procedure.
Steps
1. Peel the tape that secures the battery cable to the 3-cell battery.
2. Disconnect the battery cable from the system board.
3. Remove the three screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
4. Lift the battery off the palm-rest and keyboard assembly.
Installing the 3-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the 3-cell battery and provides a visual representation of the installation
procedure.
20
Removing and installing components
