2. Lif the I/O-board cable and antenna cables and move them out of the way.
3. Lift the latch and disconnect the touchpad cable from the system board.
4. Lift the latch and disconnect the keyboard cable from the system board.
5. Lift the latch and disconnect the keyboard-backlight cable from the system board.
6. Disconnect the speaker cable from the system board.
7. Peel off the tape that secures the speaker cable to the palm-rest and keyboard assembly.
8. Remove the speaker cables from the routing guides on the palm-rest and keyboard assembly.
9. Lift the speakers along with their cables off the palm-rest and keyboard assembly.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

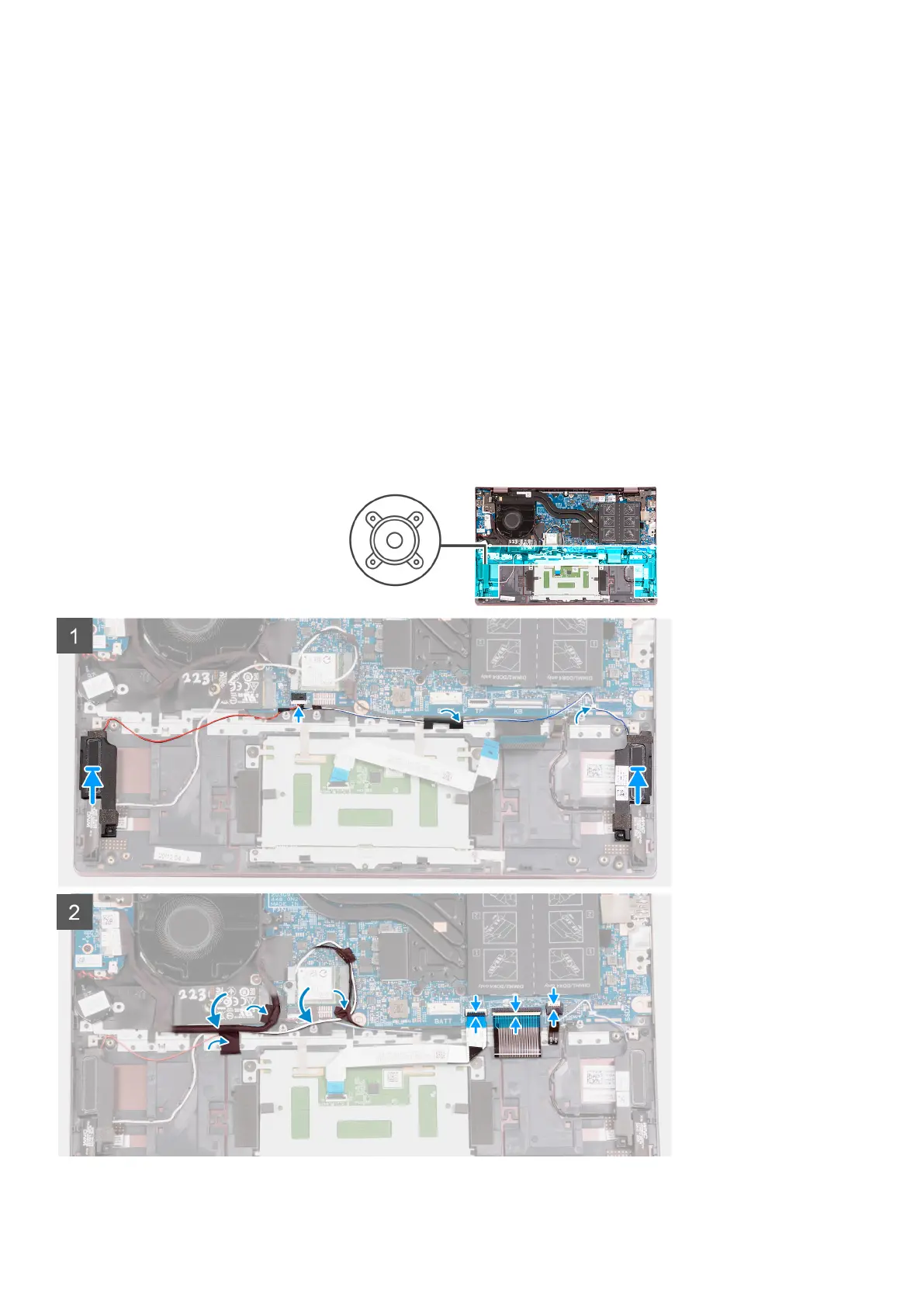

The following image(s) indicate the location of the speakers and provides a visual representation of the installation procedure.
44 Removing and installing components
