Steps

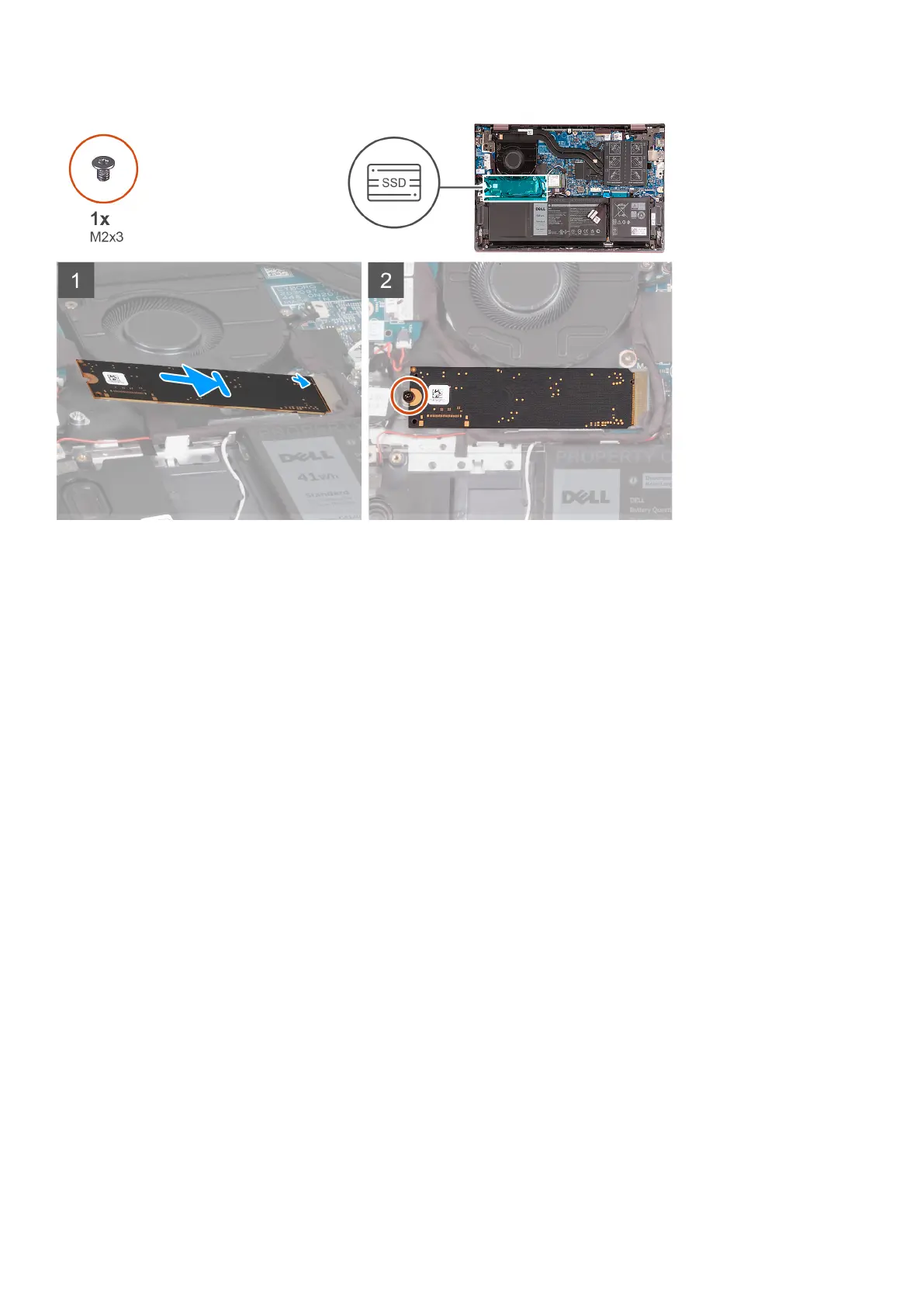

1. Align the notch on the M.2 2280 solid-state drive with the tab on the M.2 card slot on the system board.
2. Slide the M.2 2280 solid-state drive into the M.2 card slot on the system board.
3. Replace the screw (M2x3) that secures the M.2 2280 solid-state drive to the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Exit Service Mode.
3. Follow the procedure in After working inside your computer.
Installing the solid-state drive mounting bracket
About this task
The following image provides a visual representation of the procedure to install the solid-state drive mounting bracket when
replacing a M.2 2230 solid-state drive with a M.2 2280 solid-state drive.
Removing and installing components
29
