Steps
1. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly.
2. Replace the three screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
3. Connect the battery cable to the system board.
4. Adhere the tape that secures the battery cable to the 3-cell battery.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the 4-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

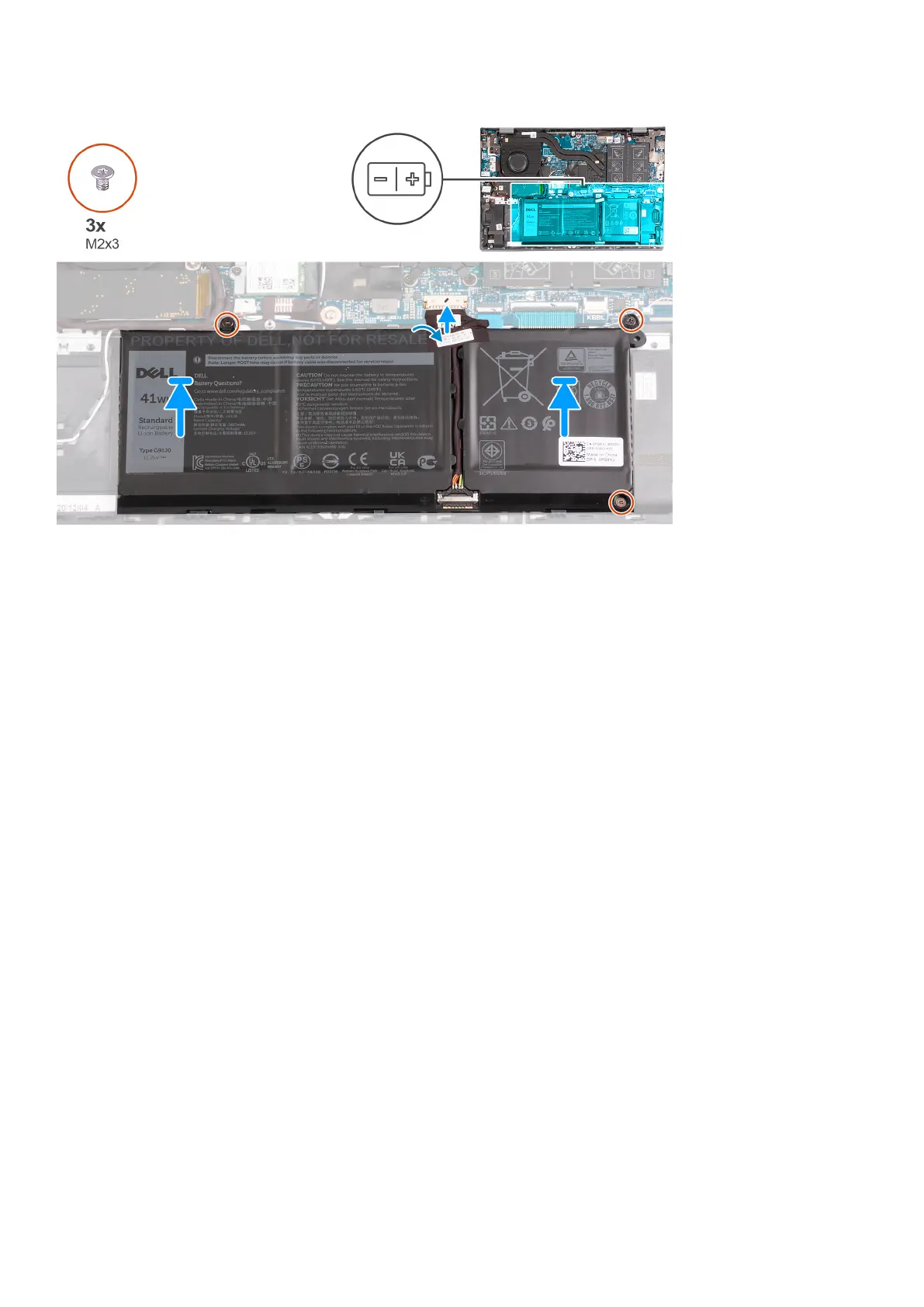

The following image(s) indicate the location of the 4-cell battery and provides a visual representation of the removal procedure.
Removing and installing components
21
