Installing hard drive assembly
Steps
1. Insert the hard drive assembly into the slot on the computer.
2. Replace the screws to secure the hard drive assembly to the computer.
3. Connect the hard drive cable to the connector on the system board.
4. Install the:
a. battery
b. base cover
5. Follow the procedures in After working inside your system.
Coin cell battery
Removing the coin cell battery
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

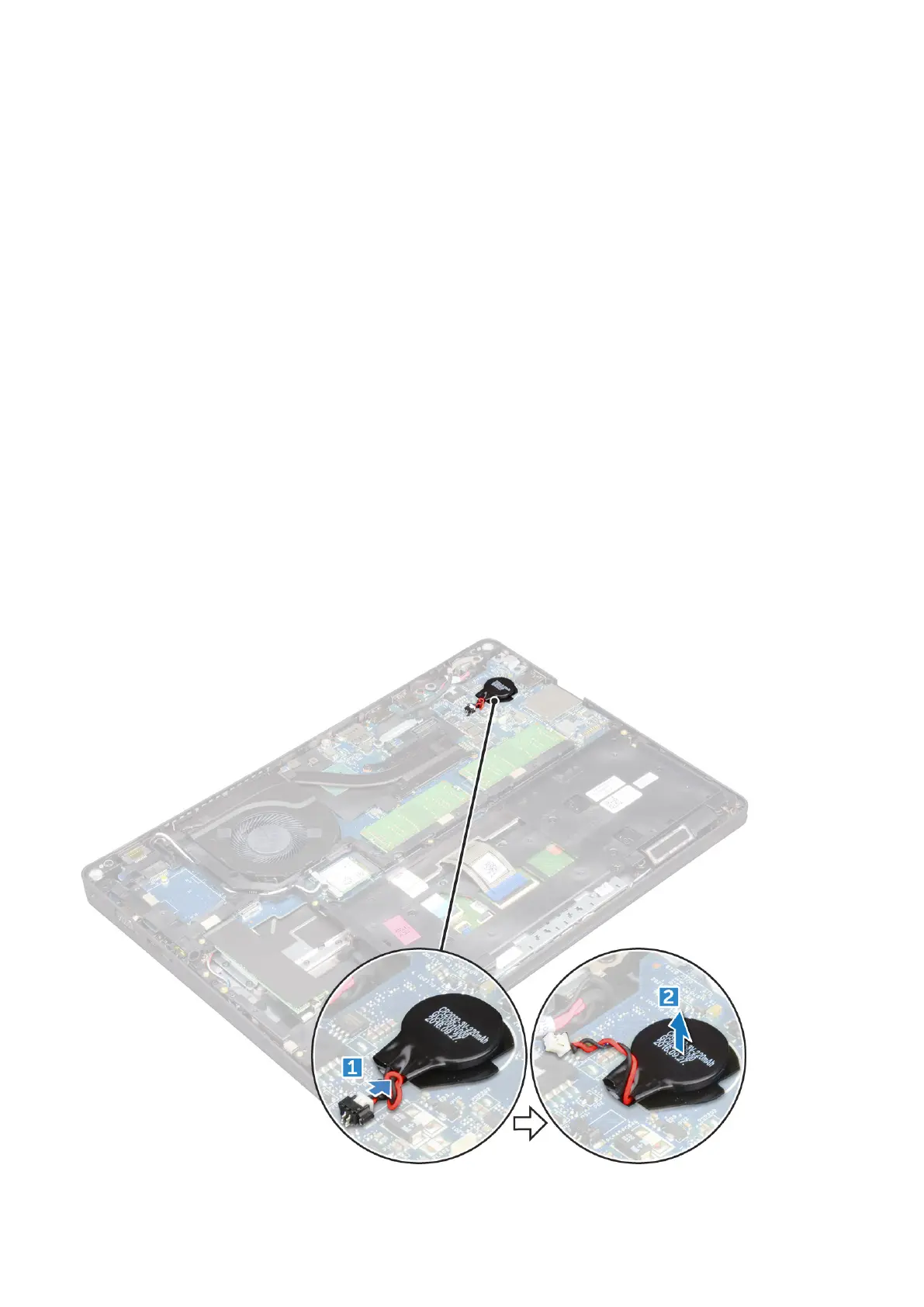

3. To remove the coin cell battery:
a. Disconnect the coin cell battery cable from the connector on the system board [1].
b. Lift the coin cell battery to release from the adhesive and lift it away from the system board [2].
Removing and installing components
25
