Installing display panel
Steps

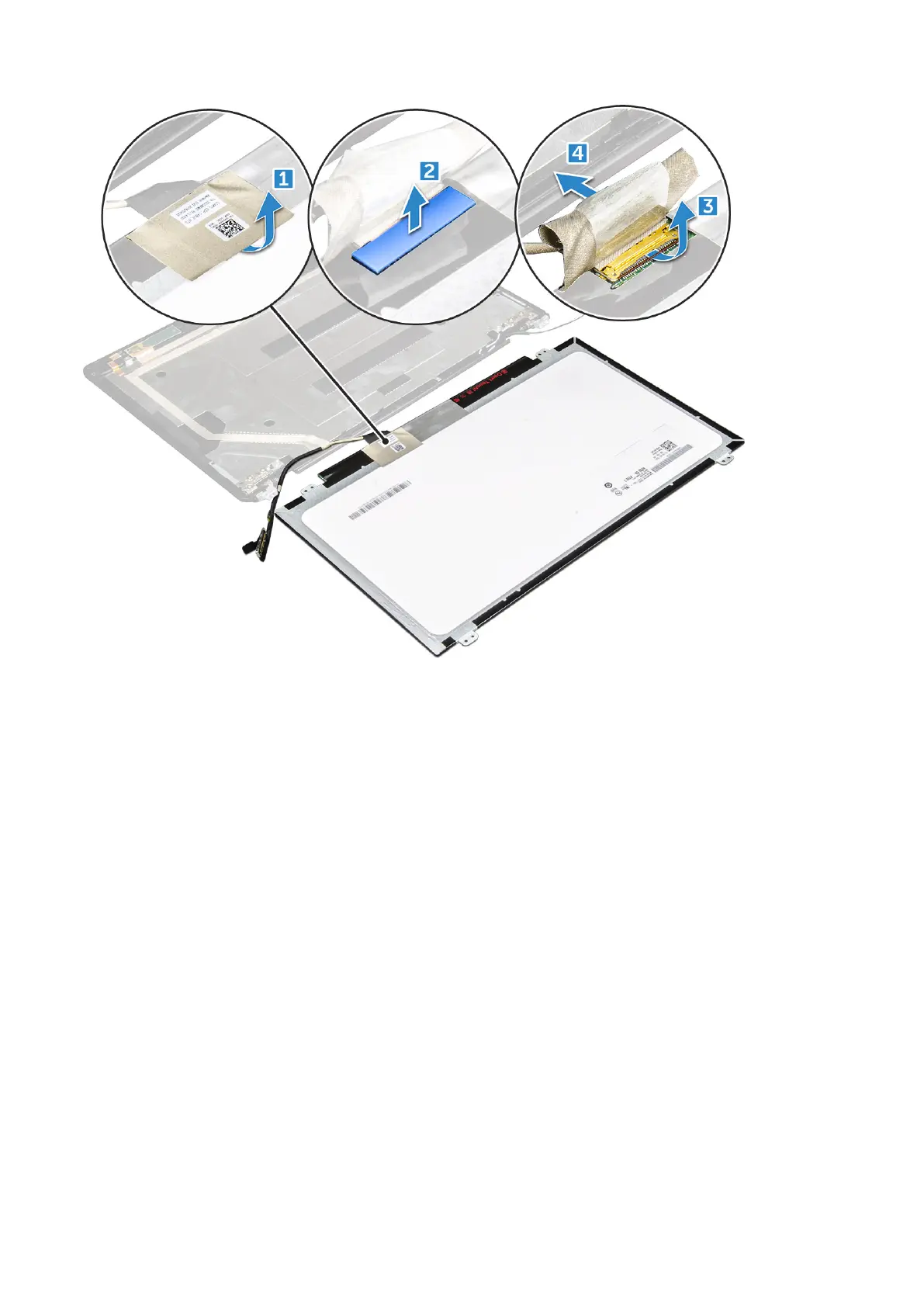

1. Connect the eDP cable to the connector and affix the blue tape.
2. Affix the adhesive tape to secure the eDP cable.
3. Replace the display panel to align with the screw holders on the display assembly.
4. Tighten the M2*3 screws to secure the display panel to the display assembly.
5. Install the:
a. display bezel
b. display assembly
c. WWAN card(optional)
d. WLAN card
e. display hinge cover
f. battery
g. base cover
6. Follow the procedure in After working inside your computer.
