b. hinge cover
c. display bezel
d. display assembly
e. display hinge cover
f. WLAN card
g. WWAN card(optional)
h. battery
i. base cover
3. Follow the procedure in After working inside your computer.
Display back cover assembly
Removing the display back cover assembly
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. WLAN
d. WWAN card (optional)
e. display hinge cover
f. display assembly
g. display bezel
h. display panel
i. eDP cable
j. camera

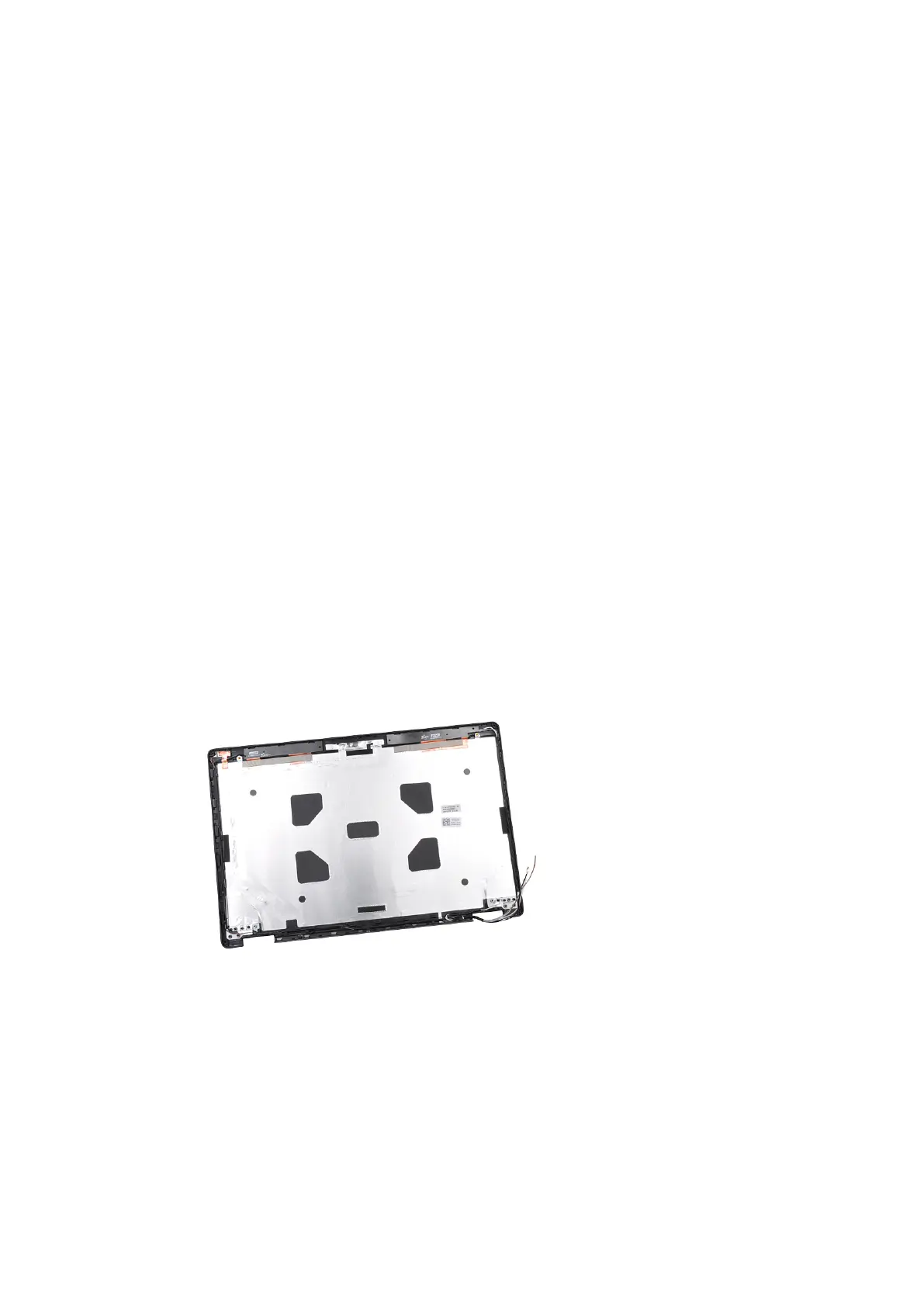

The display back cover assembly is the remaining component, after removing all the
components.
Installing the display back cover assembly
Steps
1. Place the display back cover assembly on a flat surface.
2. Install the:
a. camera
b. eDP cable
c. display panel
54
Removing and installing components
