I/O bracket
Removing the I/O bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
4. Remove the system-board shield.
5. Remove the I/O cover.
6. Remove the bottom cover.
About this task

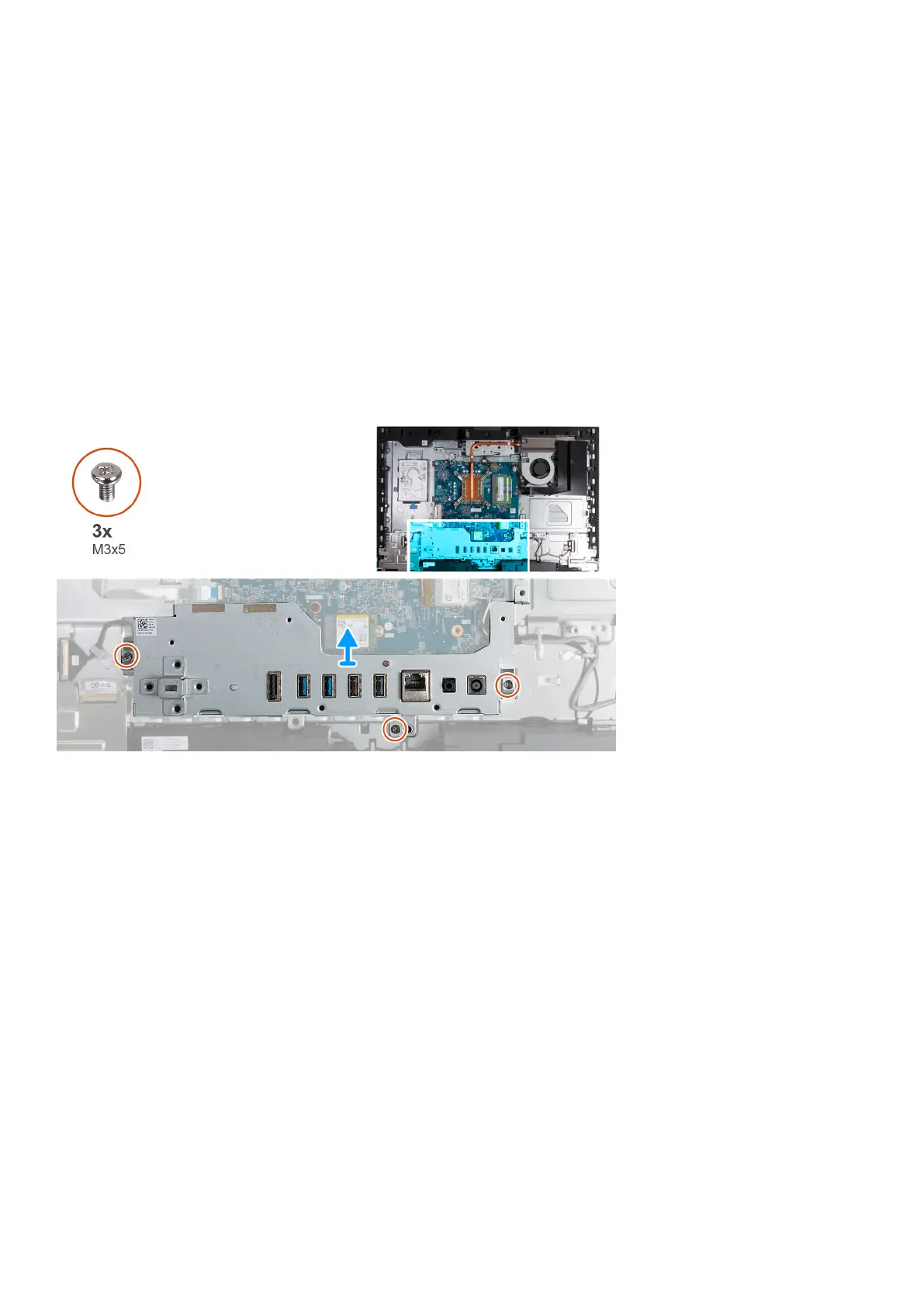

The following image(s) indicate the location of the I/O bracket and provides a visual representation of the removal procedure.
Steps
1. Remove the three screws (M3x5) that secure the I/O bracket to the display-assembly base.
2. Lift the I/O bracket off the display-assembly base.
Installing the I/O bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the I/O bracket and provides a visual representation of the installation
procedure.
132
Removal and installation procedures for Energy Efficient processors
