About this task

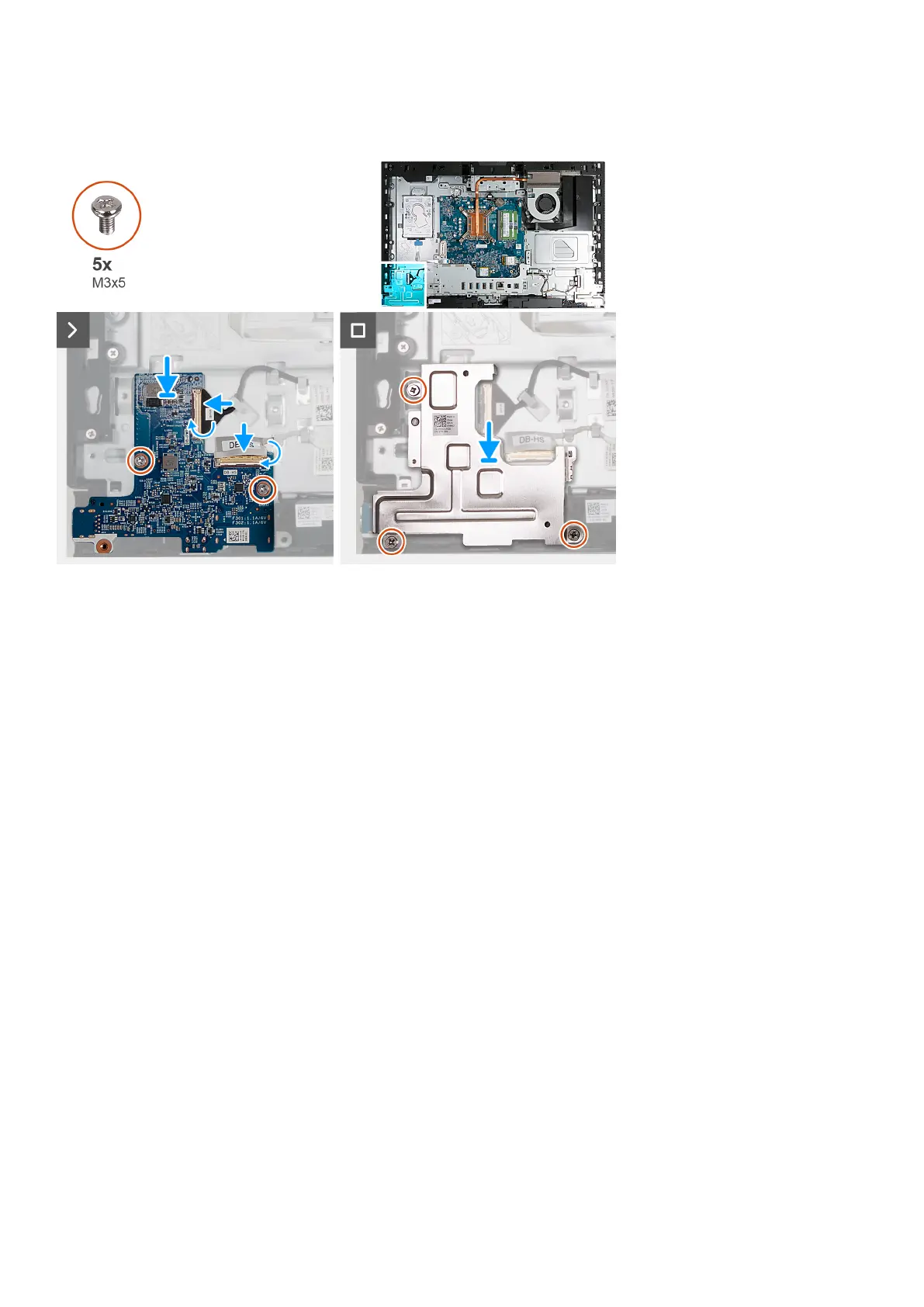

The following image(s) indicate the location of the audio board and provides a visual representation of the installation procedure.
Steps
1. Place the audio board on the display-assembly base.
2. Align the screw holes on the audio board with the screw holes on the display-assembly base.
3. Replace the two screws (M3x5) that secure the audio board to the display-assembly base.
4. Connect the power cable (DB-PWR) to the audio board and close the latch.
5. Connect the high-speed cable (DB-PWR) to the audio board and close the latch.
6. Place the audio-board shield on the display-assembly base.
7. Align the screw holes on the audio-board shield with the screw holes on the display-assembly base.
8. Replace the three screws (M3x5) that secure the audio-board shield to the display-assembly base.
Next steps
1. Install the I/O bracket.
2. Install the bottom cover.
3. Install the I/O cover.
4. Install the system-board shield.
5. Install the back cover.
6. Install the stand.
7. Follow the procedure in After working inside your computer.
Display-assembly base
Removing the display-assembly base
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
