Steps

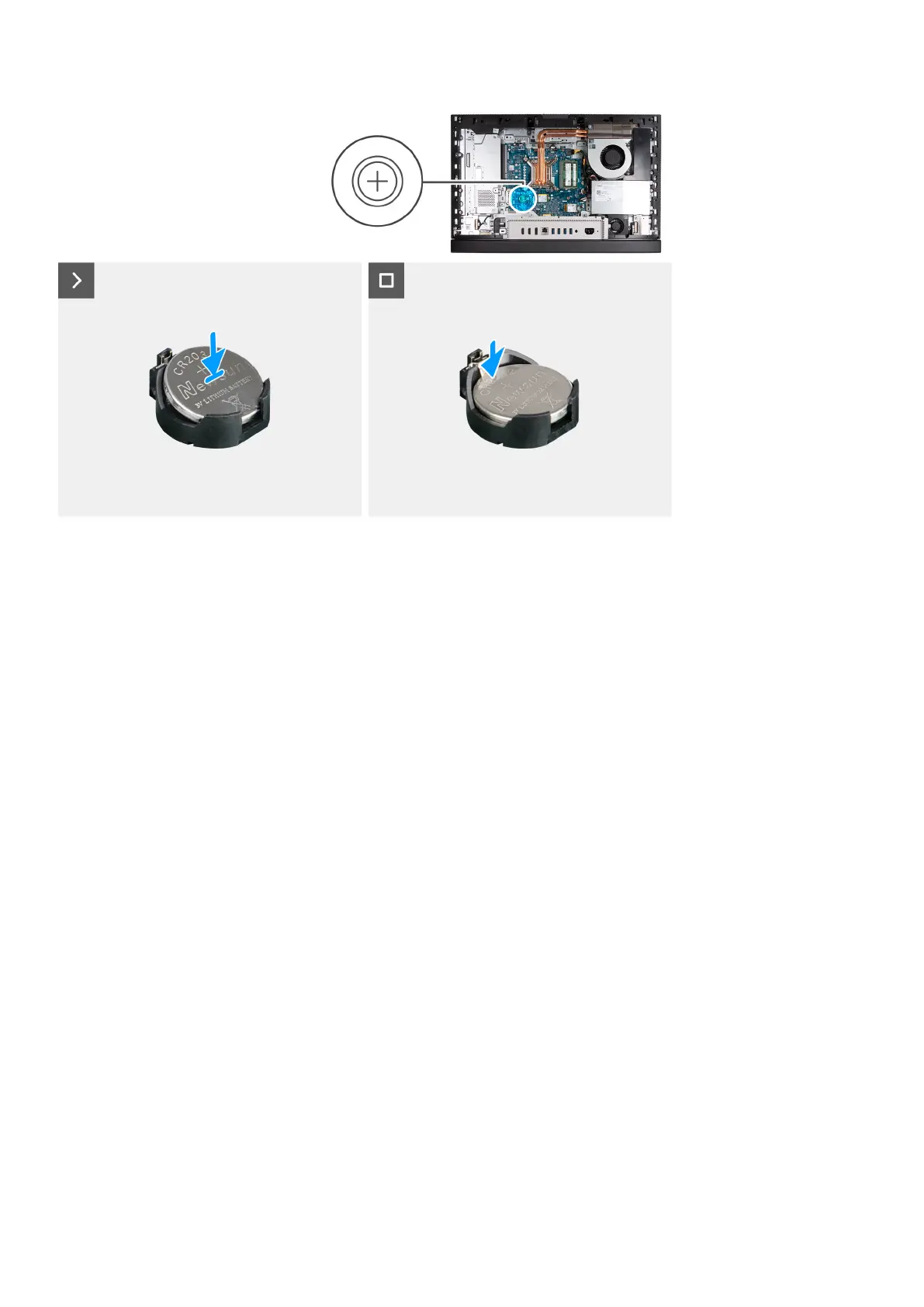

With the positive-side (+) facing up, insert the coin-cell battery into the battery socket on the system board and snap the
battery into place.
Next steps
1. Install the system-board shield.
2. Install the back cover.
3. Install the stand.
4. Follow the procedure in After working inside your computer.
I/O cover
Removing the I/O cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
4. Remove the system-board shield.
About this task
The following image(s) indicate the location of the I/O cover and provides a visual representation of the removal procedure.
Removal and installation procedures for High Performance processors
65
