About this task

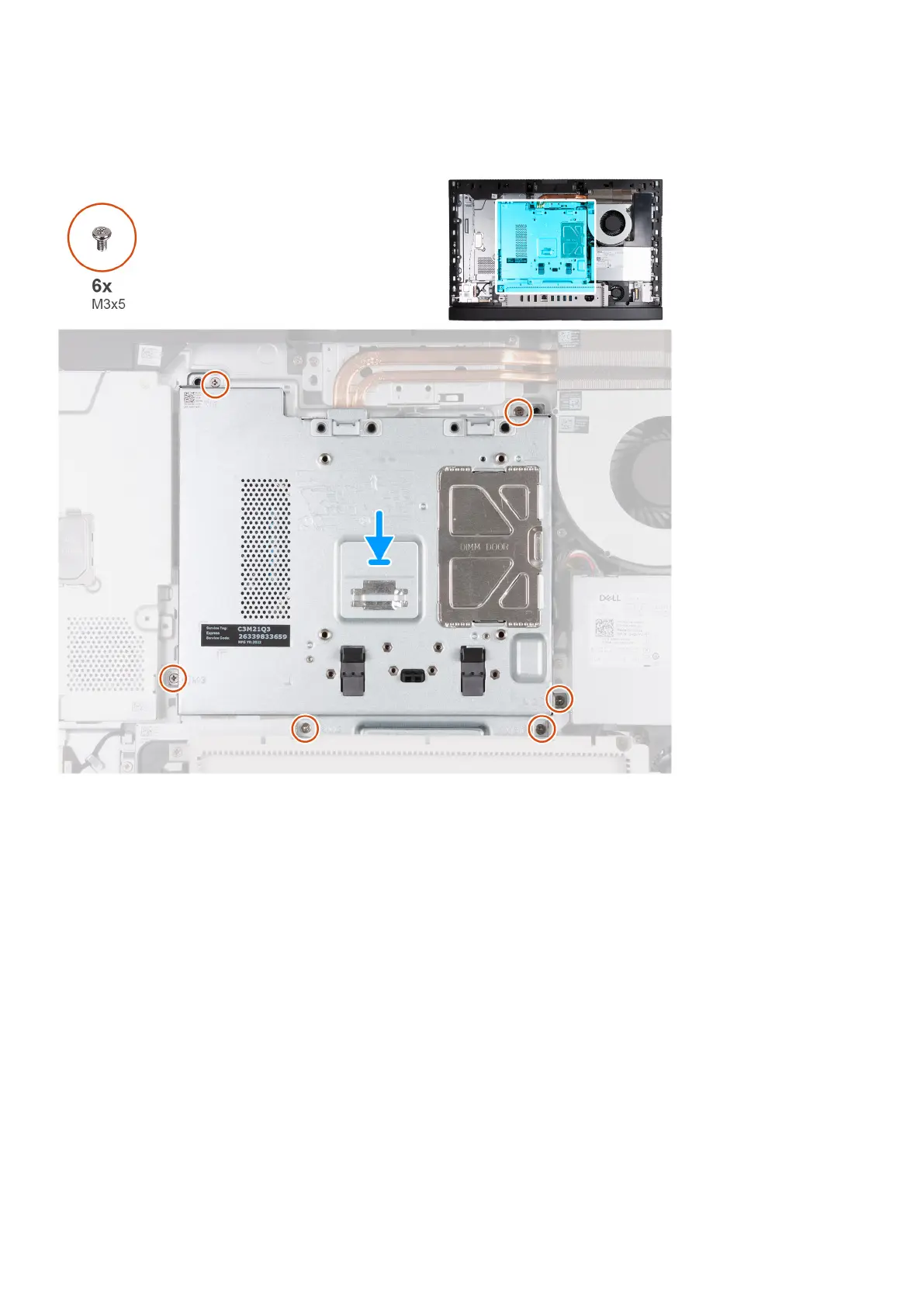

The following image(s) indicate the location of the system-board shield and provides a visual representation of the installation
procedure.
Steps
1. Place the system-board shield on the display-assembly base.
2. Align the screw holes on the system-board shield with the screw holes on the display-assembly base.
3. Replace the six screws (M3x5) that secure the system-board shield to the display-assembly base.
Next steps
1. Install the back cover.
2. Install the stand.
3. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
Removal and installation procedures for High Performance processors
51
