Steps

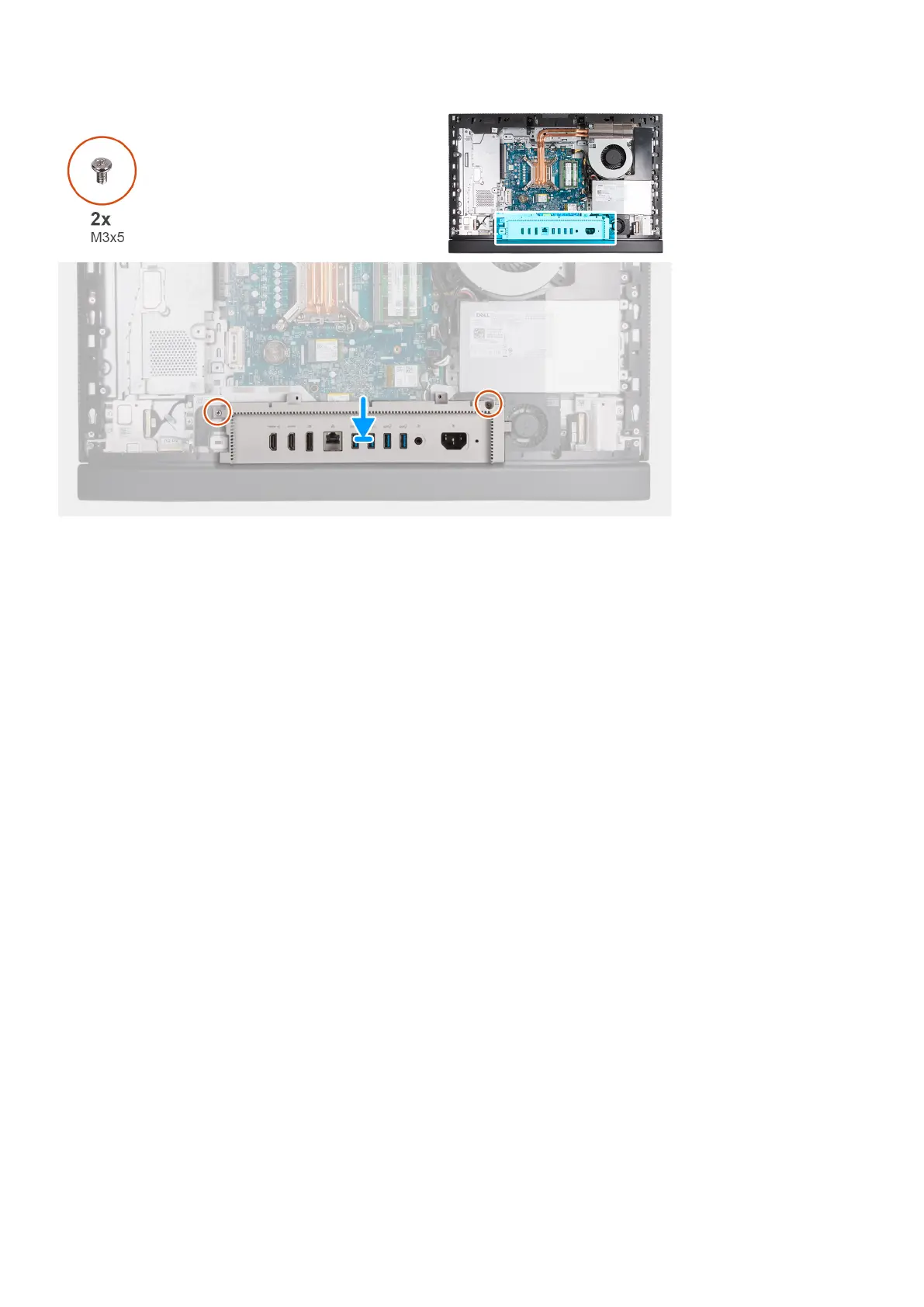

1. Place and align the I/O cover with the display-assembly base.
2. Align the I/O slots on the I/O cover with the I/O ports and the screw holes on the I/O cover with the screw holes on the
display-assembly base.
3. Replace the two screws (M3x5) that secure the I/O cover to the display-assembly base.
Next steps
1. Install the system-board shield.
2. Install the back cover.
3. Install the stand.
4. Follow the procedure in After working inside your computer.
Bottom cover
Removing the bottom cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
4. Remove the system-board shield.
5. Remove the I/O cover.
About this task
The following image(s) indicate the location of the bottom cover and provides a visual representation of the removal procedure.
Removal and installation procedures for High Performance processors
67
