Audio board
Removing the audio board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
4. Remove the system-board shield.
5. Remove the I/O cover.
6. Remove the bottom cover.
7. Remove the I/O bracket.
About this task

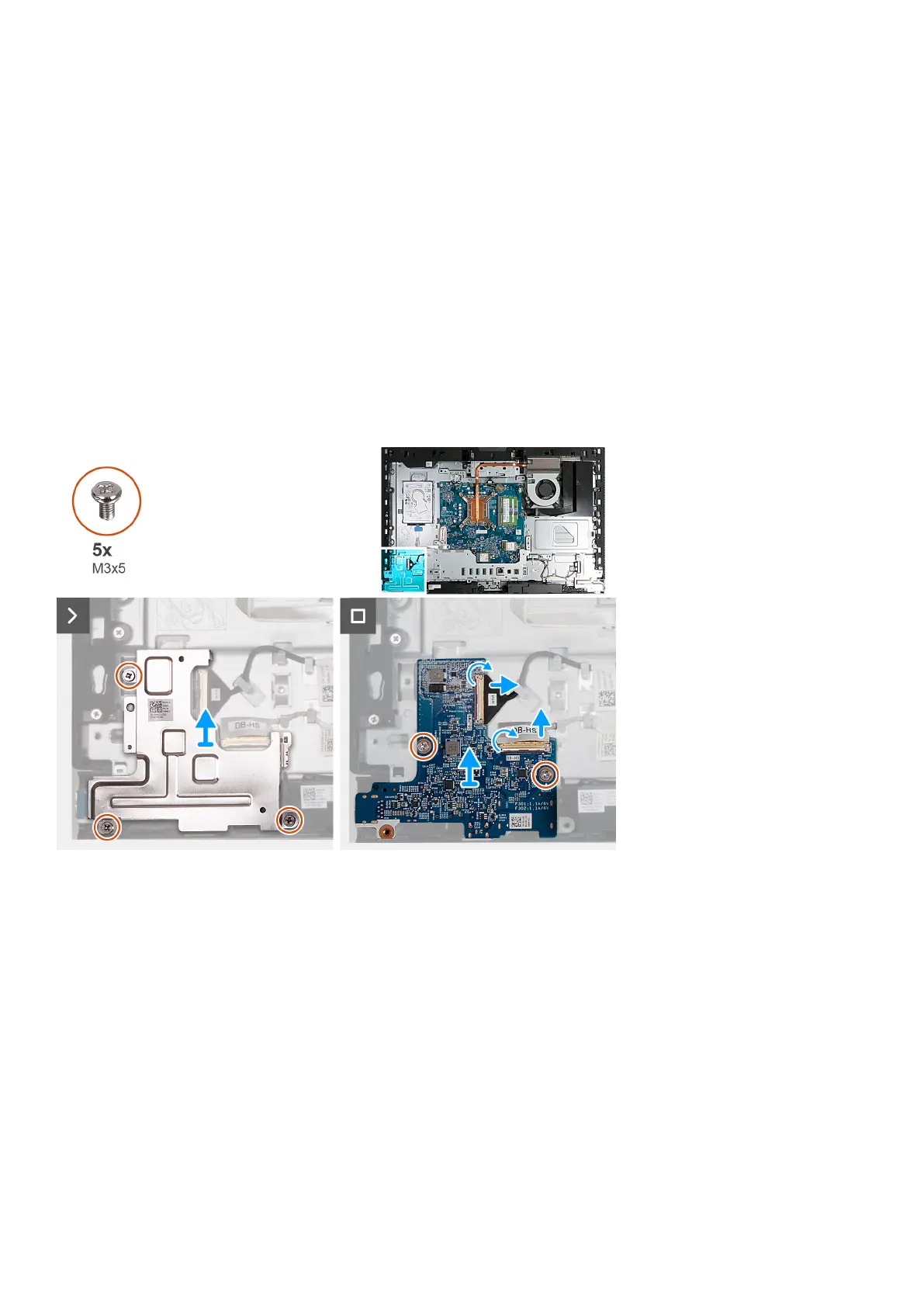

The following image(s) indicate the location of the audio board and provides a visual representation of the removal procedure.
Steps
1. Remove the three screws (M3x5) that secure the audio-board shield to the display-assembly base.
2. Lift the audio-board shield off the display-assembly base.
3. Lift the latch and disconnect the audio cable (DB-AUDIO) from the audio board.
4. Disconnect the speaker cable (INT SPKR) from the audio board.
5. Remove the two screws (M3x5) that secure the audio board to the display-assembly base.
6. Lift the audio board off the display-assembly base.
Installing the audio board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
Removal and installation procedures for Energy Efficient processors
149
