Delta DVP-ES2 Manual

1 Analog Input Module DVP04AD-E2
 For current input Mode6: 0.
5μA = 16mA/32,000
Adopt the Equation of current input Mode4/Mode5, substitute Gain for 19200 (12mA) and Offset for 6400
(4mA)
Equation:

640019200
640032000
)(20
)(
16000











mA
mAX
Y
Y=Digital output, X= Current input

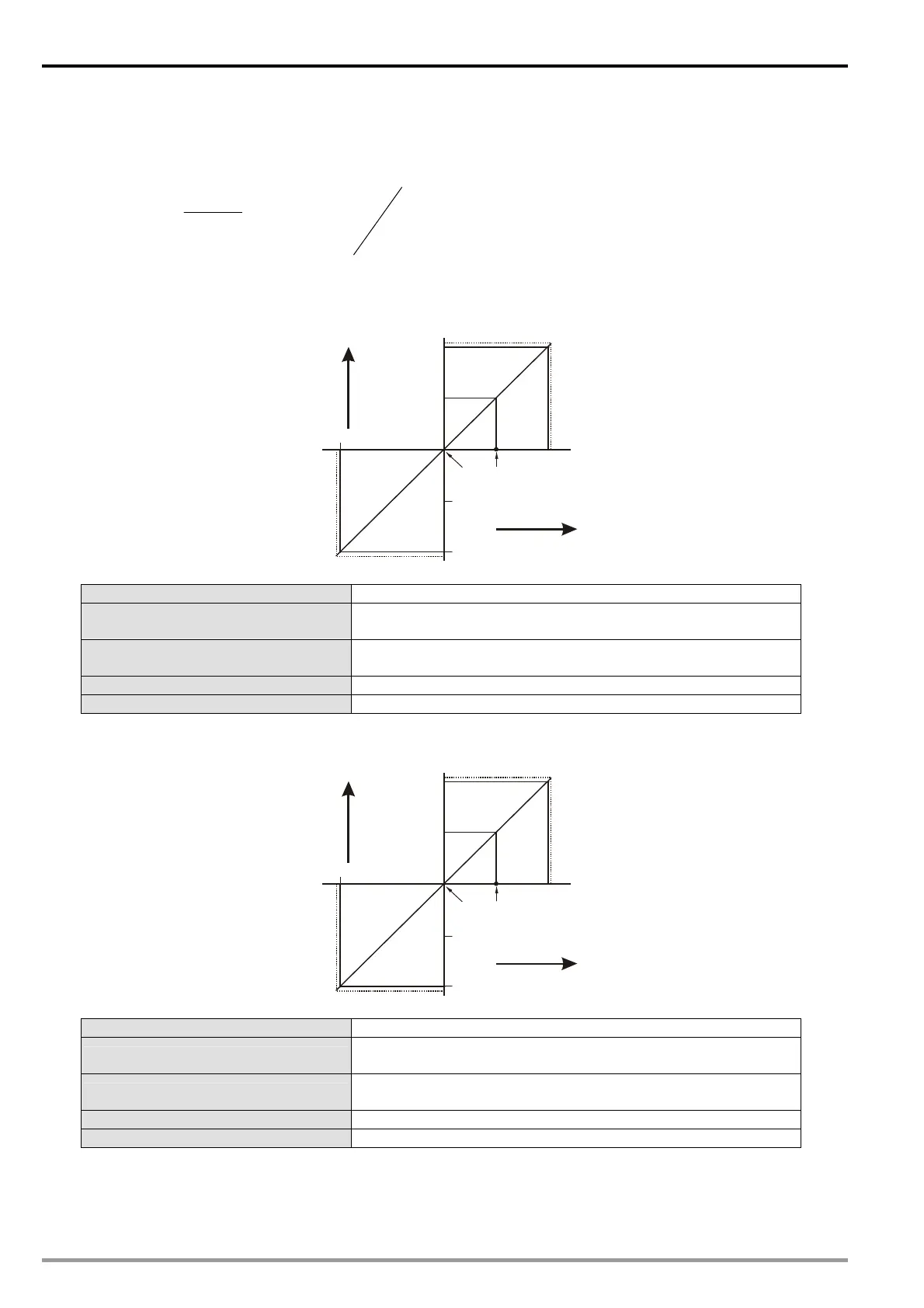

1.7.1 Voltage Input Mode
 Mode 0 (H’0000): (-10V ~ +10V)
Voltage input
+32000
+16000
-16000
10V
-32000
-10V
5V
0
Gain
Offset
Digital
output
+32384
-32384
Mode 0 of CR#2~ CR#5 -10V ~ +10V, Gain = 5V (16,000), Offset = 0V (0).
Gain (CR#28 ~ CR#31)
The corresponding voltage input value when the digital output
value = 16,000.
Offset (CR#34 ~ CR#37)
The corresponding voltage input value when the digital output
value = 0.
Range of digital conversion -32,000 ~ +32,000
Max./Min. output range of digital data -32,384 ~ +32,384
 Mode 1 (H’0001): (-5V ~ +5V)
Voltage input
+32000
+16000
-16000
5V
-32000
-5V
2.5V
0
Gain
Offset
Digital
output
+32384
-32384
Mode 1 of CR#2~ CR#5 -5V ~ +5V, Gain = 2.5V (16,000), Offset = 0V (0).
Gain (CR#28 ~ CR#31)
The corresponding voltage input value when the digital output
value = 16,000.
Offset (CR#34 ~ CR#37)
The corresponding voltage input value when the digital output
value = 0.
Range of digital conversion -32,000 ~ +32,000
Max./Min. output range of digital data -32,384 ~ +32,384
DVP-ES2 Module Manual
1-10
