Delta DVP-ES2 Manual

3 Mixed Analog Input/Output Module DVP06XA-E2

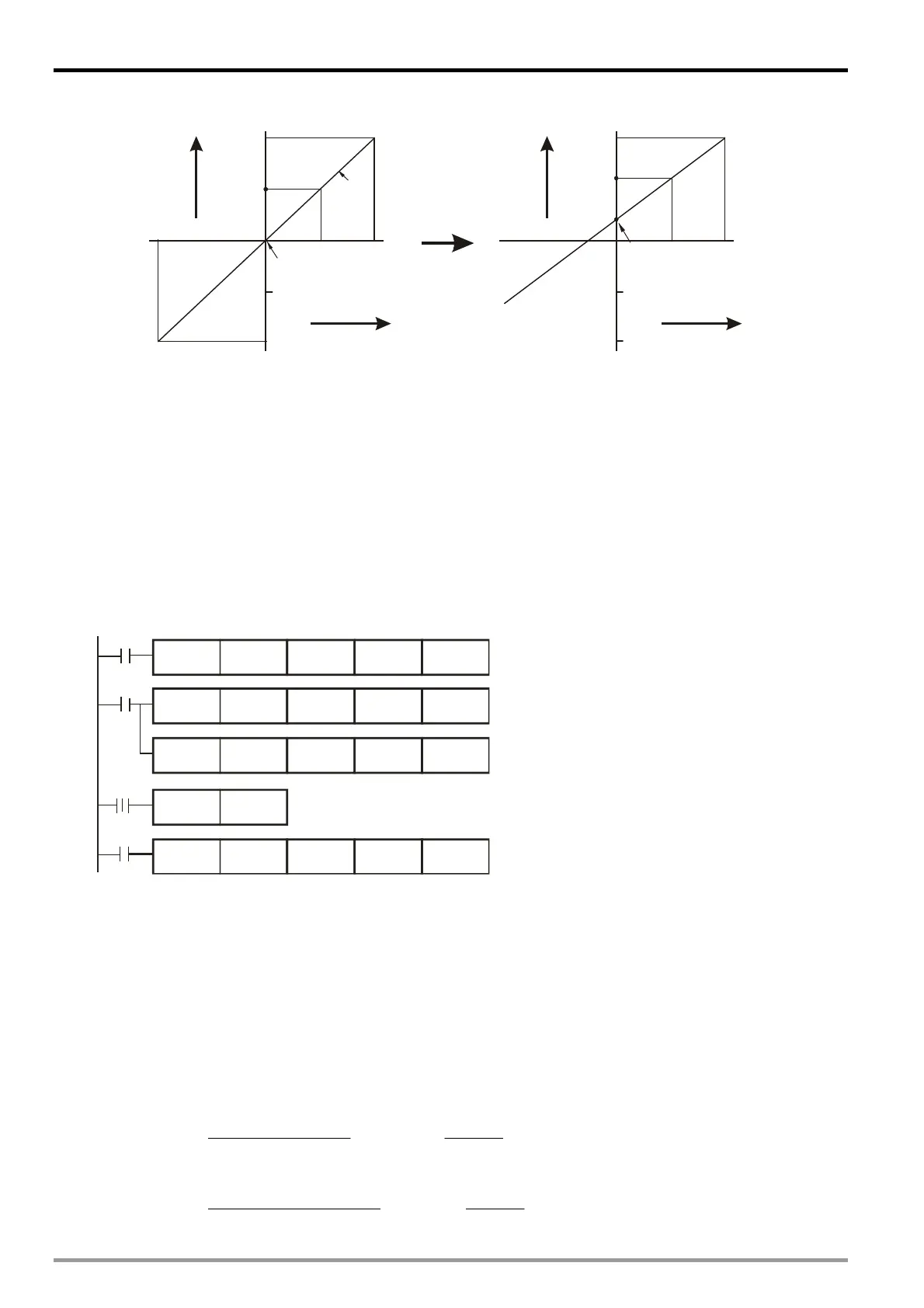

2. Adjusted Curve
10V
+32,000
0
Offset
5V
Gain
+16,000
Voltage
output
Mode 0
Digital input
-10V
-5V
-32,000
10V
+32,000
0
Offset
6V
Gain
+16,000
Voltage
output
Digital input
-10V
-5V
-32,000
2V
3. Devices
 X0 = On: Set the output mode of the signals at CH5 as mode 0.
 X1 = On: Set Offset value of CH5 as 2V (6,400) and Gain value as 6V (19,200).
 M0 = On: Disable CH5 set value changing.
4. Program explanation
 When X0 = On, set CR#6 as K0 (H’0000) and the signal output mode at CH5 as mode 0 (voltage output
mode).
 When X1 = On, write K6400 (Offset value of CH5) into CR#32 and K19,200 (Gain value of CH5) into
CR#38.
 When X1 goes from On to Off, set M0 = On to disable the adjustment on D/A conversion curve. Write
K16 (H’10) into CR#40 b4=1 to disable
CH5set value changing.
5. Program example
Ladder diagram: Explanation:
Set CH5 as mode 0 (voltage output mode)
Set the Offset value of CH5
Set the Gain value of CH5
Disable CH5
set value changing
X0
M0
X1
K0
K38 K1
K0 K40
K1
K0
K1
TOP
K0
K1
M0
TOP
TOP
TOP
X1
SET
H0
K6400
K19200
H10
K6
K32
3.7.7 Adjusting D/A Conversion Curve in Current Output Mode 1 and Mode 2
1.
Description
 Take 06XA CH6 for example. When CR#7 is set as current output mode (mode 1), the Offset value will
be set as 0mA (0) and Gain value as 10mA (10mA/0.625A=16,000), i.e. output current 0mA ~ +20mA
will correspond to values 0 ~ +32,000.
 When CR#7 is set as current output mode (mode 2), the Offset value will be set as 4mA
(4mA/0.625A=6,400) and Gain value as 12mA (12mA/0.625A=19,200), i.e. input current 4mA ~
+20mA will correspond to values 0 ~ +32,000.
 If you cannot use the default current output mode (mode 1 and mode 2), you can make adjustments on
the D/A conversion curve according to your actual needs. For example, set the Offset of CH6 as 6mA
(6mA/0.625A=9,600) and Gain as 13mA (13mA/0.625A=20,800).


















32000
)(20
16000
mA
Offset
OffsetGainX
mAY
Example: If X=16000, Y=?


)(13
32000
)(20
9600
16000
96002080016000
mA
mA
mAY 
















DVP-ES2 Module Manual
3-20
