Delta DVP-ES2 Manual

2 Analog Output Module DVP02DA-E2/DVP04DA-E2

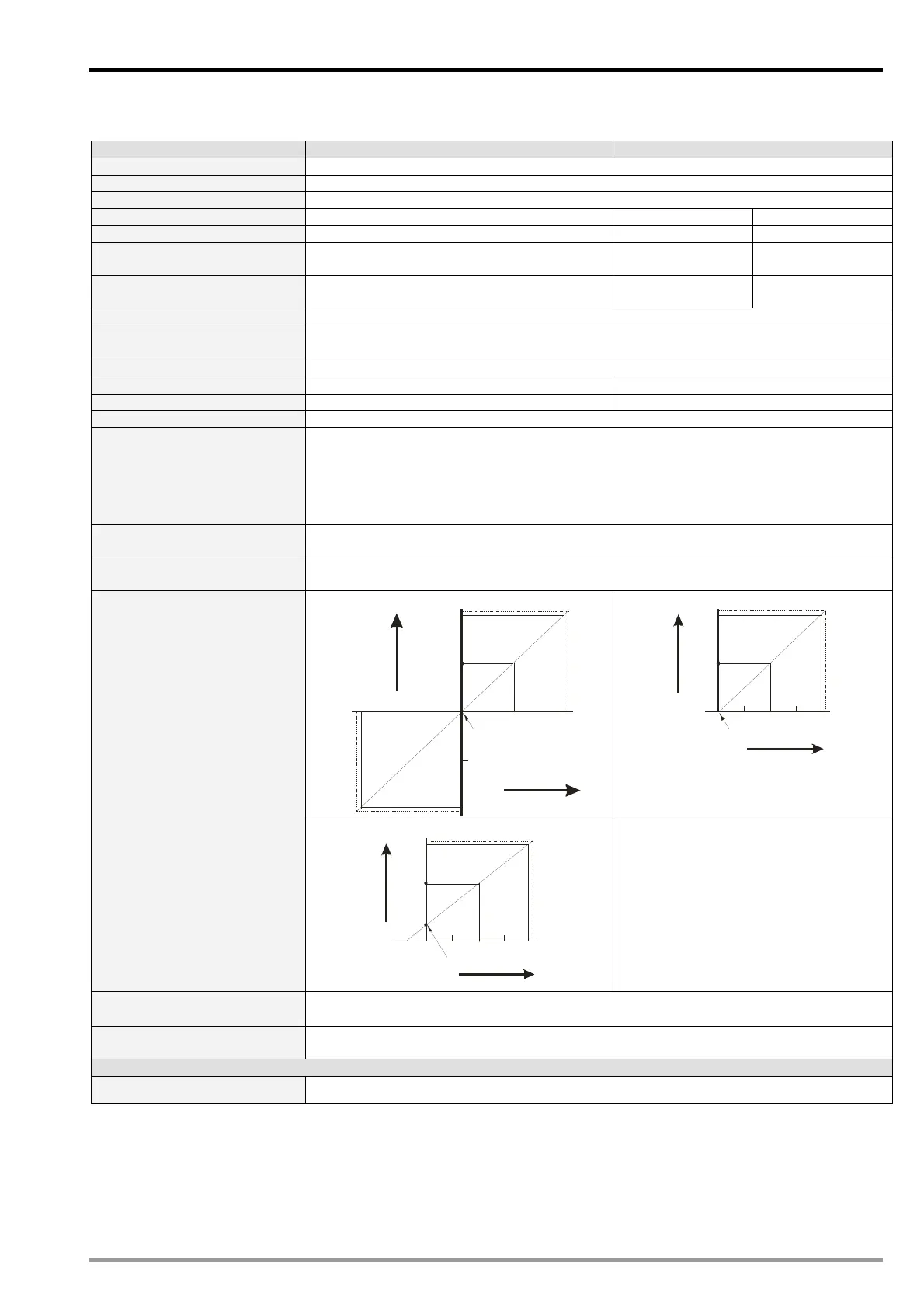

2.5 Specifications
DVP02DA-E2/DVP04DA-E2 Voltage output Current output
Power supply voltage 24 V DC (20.4 ~ 28.8V DC) (-15% ~ +20%)
Connector European standard fixed terminal block (Pin pitch: 5mm)
Analog output channel 2 channels or 4 channels
Range of analog output -10V ~ 10V 0 ~ 20mA 4mA ~ 20mA
Range of digital conversion -32,000 ~ +32,000 0 ~ +32,000 0 ~ +32,000
Max./Min. input range of digital
data
-32,768 ~ +32,767 0 ~ +32,767 -6,400 ~ +32,767
Resolution
14 bits
20V/64000
14 bits
20mA/32000
14 bits
16mA/32000
Output impedance 0.5 or lower
Overall accuracy
0.5% when in full scale (25°C, 77°F);
1% when in full scale within the range of (0 ~ 55°C, 32 ~ 131°F)
Response time 3 ms/ all channels
Max. output current 20mA (1K ~ 2M) -
Tolerance l o a d im pe dance - 0 ~ 500
Digital data format 16 significant bits out of 16 bits are available; in 2’s complement
Isolation
Optical coupler isolation between analog circuits and digital circuits. No isolation among
analog channels.
500VDC between digital circuits and Ground
500VDC between analog circuits and Ground
500VDC between analog circuits and digital circuits
500VDC between 24VDC and Ground
Protection
Voltage output is protected by short circuit. Short circuit lasting for too long may cause
damage on internal circuits. Current output can be open circuit.
Series connection to DVP-PLC
MPU
The modules are numbered from 0 to 7 automatically by their distance from MPU. Maximum
8 modules are allowed to connect to MPU and will not occupy any digital I/O points.
Mode 0 (H’0000): (-10V ~ +10V)
10V
+3 2,000
0
Offset
5V
Gain
+1 6,000
Voltage
output
Digital input
-10 V
-5V
-32 ,0 00
+3 2,767
-32 ,7 68
Mode 1 (H’0001): (0mA ~ +20mA)
20mA
+3 2,000
0
Offset
Gain
+1 6,000
10mA
Current
output
Digita inputl
+3 2,767
D/A conversion curve
(Default: mode 0)
Mode 2 (H’0002): (+4mA ~ +20 mA)
20mA
+3 2,000
0
Offset
4mA
+1 6,000
12mA
Current
outpu t
Digita inputl
Gain
+3 2,767
-6,40 0
Mode -1 (H’FFFF): Channel unavailable.
The channel is disabled. Output voltage =
0; output current = 0.
Operation/storage
1. Operation: 0°C ~ 55°C (temperature), 50 ~ 95% (humidity); pollution degree 2
2. Storage: -25°C ~ 70°C (temperature), 5 ~ 95%（humidity）
Vibration/shock immunity
International standards: IEC61131-2, IEC 68-2-6 (TEST Fc) / IEC61131-2 & IEC 68-2-27
(TEST Ea)
Power Supply
Max. rated power consumption 24V DC (20.4 ~ 28.8V DC) (-15% ~ +20%), 3W, supplied by external power source.
DVP-ES2 Module Manual
2-3
