2 Analog Output Module DVP02DA-E2/DVP04DA-E2
2.1 The D/A Conversion
In industrial automation, many control signals are analog signals. The most frequently adopted range for the signals
are voltage -10V ~ 10V and current 0 ~ 20mA. Therefore, the data in the PLC have to be converted into analog
signals for controlling the peripheral devices.
For example, data -32,000 ~ 32,000 in the PLC are converted into voltage -10V ~ 10V by a D/A module. The output
voltage can therefore be used for controlling the peripheral analog devices.
2.2 Introduction
DVP02DA-E2 (DVP04DA-E2) analog signal output module receives 2 (4) groups of 16-bit digital data from the PLC
MPU and converts the digital data into 2 (4) points analog output signals (voltage or current). You can select voltage
output or current output by the wiring. Range for voltage output: -10V ~ 10V (-32,000 ~ 32,000). Range for current
output: 0 ~ 20mA (0 ~ 32,000).

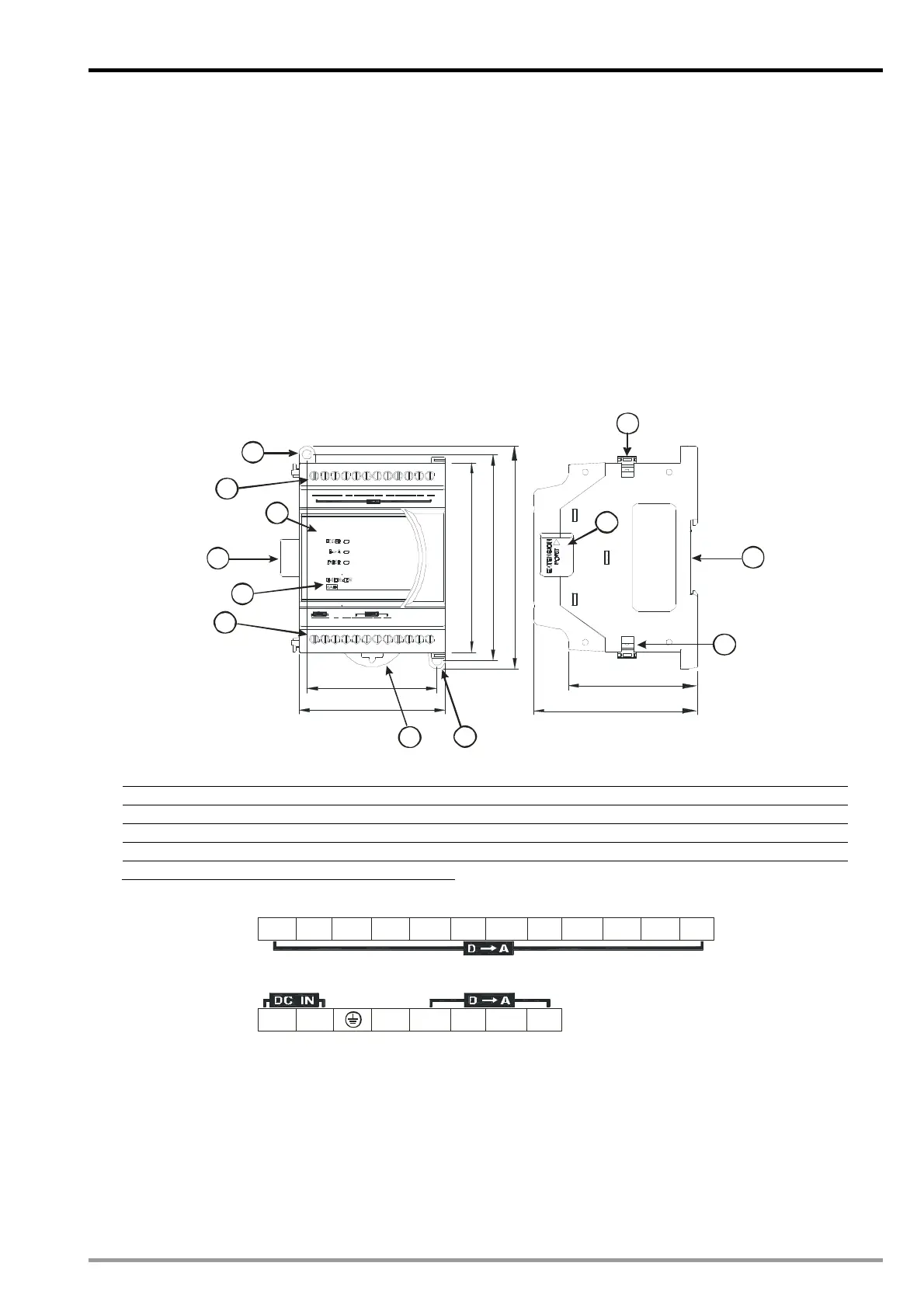

2.3 Product Profile and Outline
2.3.1 DVP04DA-E2
70
62
106
98
78
90
61.5
2
1
4
5
9
6
6
7
7
8
8
3
Unit: mm
1. Connection port for extension unit/module 6. Terminals
2. DIN rail (35mm) 7. Mounting hole
3. Model name 8. Fixing clip for extension unit/module
4. POWER, ERROR, DA indicators 9. Mounting port for extension unit/module
5. DIN rail clip
I/O terminals
IO1VO1 AG FE AGIO2 FE IO3VO3 AGVO2 FE
VO40V24 V FE AGIO4 FE
DVP-ES2 Module Manual
2-1
