Delta DVP-ES2 Manual

1 Analog Input Module DVP04AD-E2
DVP-ES2 Module Manual
1-4
DVP04AD-E2 Voltage input Current input
Mode 4 (H’0004): (-20mA~ +20mA)
+32000
+16000
-16000
20mA
-32000
-20mA
10mA
0
Gain
Offset
Digital
output
Current input
+32384
-32384
Mode 5 (H’0005): (0 ~ +20mA)
+32000
+16000
20mA
10mA
0
GainOffset
Digital
output
Current input
+32384
-384

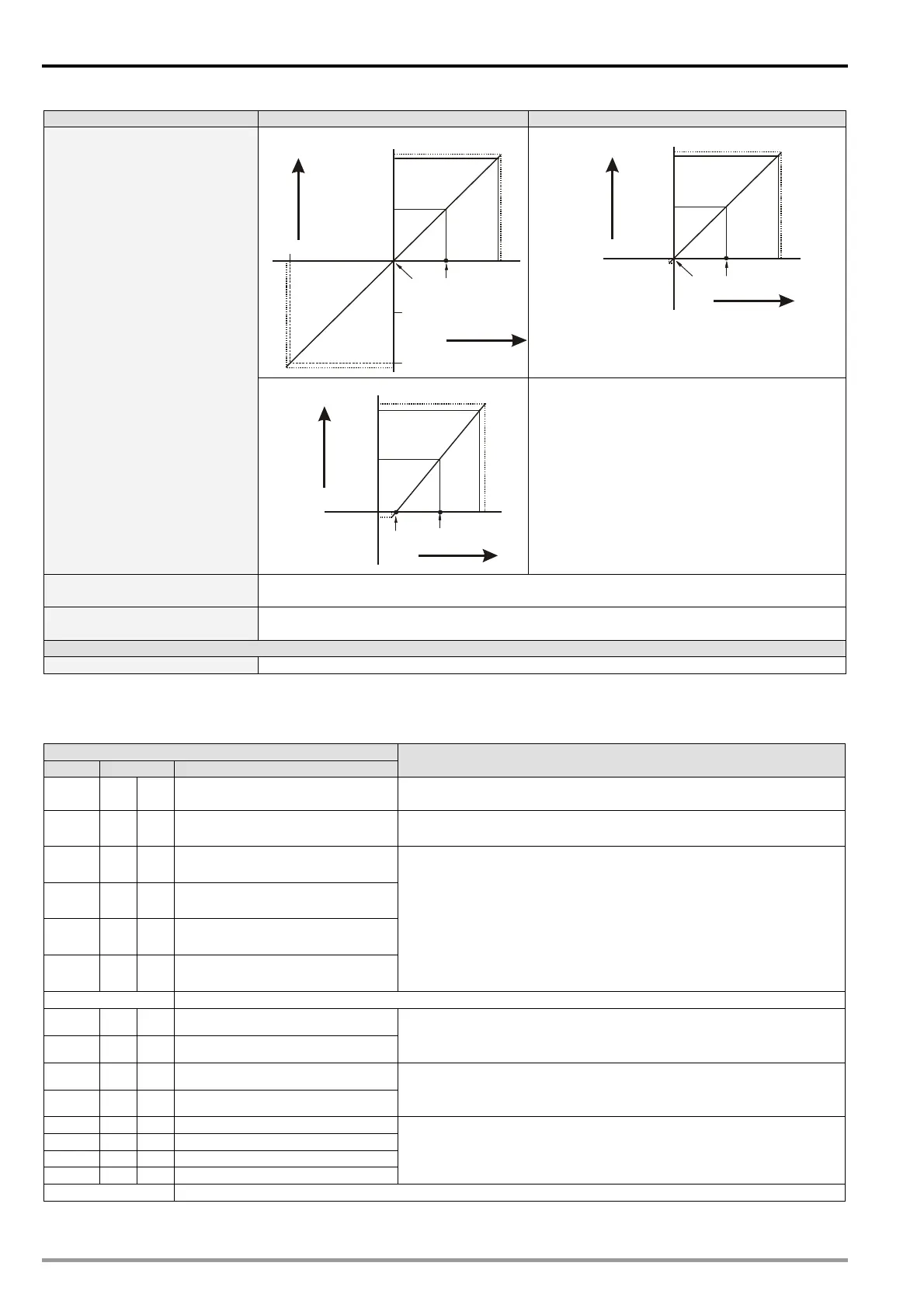

A/D conversion curve
(Default: mode 0)
Mode 6 (H’0006): (+4mA ~ +20mA)
+32000
4mA
0
Offset
20mA
12mA
Gain
+16000
Digital
output
Current input
+32384
-384
Mode -1 (H’FFFF): Channel unavailable. Average
value and present value of input channels will be
displayed as 32,767(H’7FFF).
Operation/storage temperature
1. Operation: 0°C ~ 55°C (temperature), 50 ~ 95% (humidity), pollution degree 2
2. Storage: -25°C ~ 70°C (temperature), 5 ~ 95% (humidity)
Vibration/shock immunity
International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27
(TEST Ea)
Power supply
Max. rated power consumption 24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%), 3W, supplied by external power source
1.6 CR (Control Register)
1.6.1 CR in DVP04AD-E2
DVP04AD-E2
CR# Attrib. Register content
Description
#0 YES R Model name
Set up by the system:
DVP04AD-E2 model code = H’0080
#1 YES R Firmware version Display the current firmware version in hex.
#2 YES R/W CH1 Input mode setting
#3 YES R/W CH2 Input mode setting
#4 YES R/W CH3 Input mode setting
#5 YES R/W CH4 Input mode setting
Input mode: Default = H’0000. Take CH1 for example:
Mode 0 (H’0000): Voltage input (-10V ~ +10V).
Mode 1 (H’0001): Voltage input (-5V ~ +5V).
Mode 2 (H’0002): Voltage input (0V ~ +10V).
Mode 3 (H’0003): Voltage input (0V ~ +5V).
Mode 4 (H’0004): Current input (-20mA ~ +20mA).
Mode 5 (H’0005): Current input (0mA ~ +20mA).
Mode 6 (H’0006): Current input (4mA ~ +20mA).
Mode -1 (H’FFFF): Channel 1 unavailable
#6 ~ #7 Reserved
#8 YES R/W CH1 average times
#9 YES R/W CH2 average times
Set average times in CH1 ~ CH2:
Range = K1 ~ K100
Default = K10
#10 YES R/W CH3 average times
#11 YES R/W CH4 average times
Set average times in CH3 ~ CH4:
Range = K1 ~ K100
Default = K10
#12 NO R CH1 average input value
#13 NO R CH2 average input value
#14 NO R CH3 average input value
#15 NO R CH4 average input value
Average value of input signals at CH1 ~ CH4
#16 ~ #19 Reserved
