The AC switch terminals utilize cage-clamp design terminals and in order to
insure proper connection of wiring, prior to inserting stripped conductors into
switch terminals complete the following procedure to make terminals ready for
connections. For each of the AC switch terminals (L1, L2, L3 and N):
1. Use a flatblade screwdriver loosen the cage-clamps by turning the clamp
screw CCW until the screw reaches limit of rotation)
If an electric screwdriver is utilized insure the torque setting is low enough to
NOT OVER-TORQUE the screw. Once screw bottoms out, do not turn it any further.
2. Verify visually the cage clamp is in the fully open position
3.3.4 AC Switch Terminals –Prewire set-up

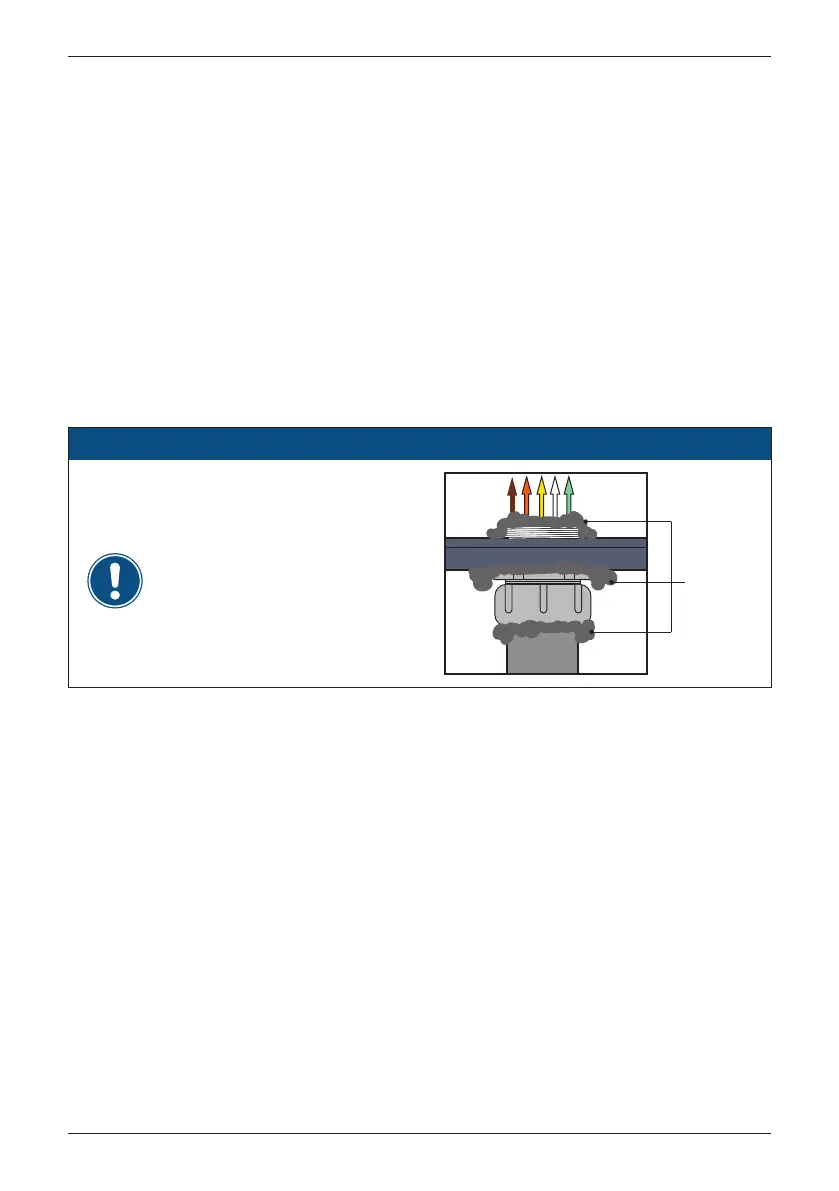

Please seal the conduit from inside
the wiring box by using duct seal to
prevent living creature or moisture
enter the wiring box.
ATTENTION
duct seal
EMT
40
Installation
