3.4.4

Ground bar locations

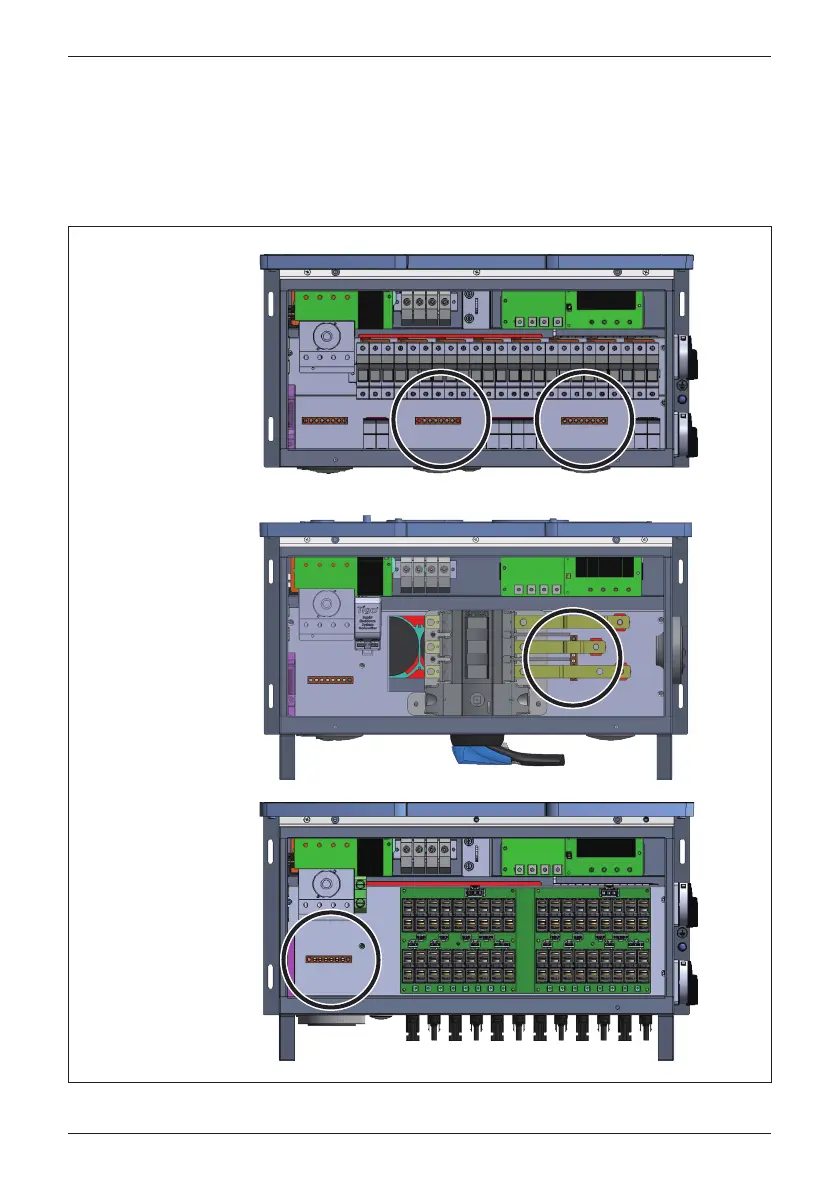

Figure 3-33: Ground bar locations

-120 Model WB

-121 Model WB

-122 Model WB

Figure 3-33 shows the DC grounding bar locations.

The wire gauge of the ground cable: 6AWG ~ 4AWG

Torque grounding cables to 26 lbf-in (3 N•m)

Installation
