4 Commissioning
- Use care to avoid hot surfaces when operating the product!
- Do not perform any task until the unit cools down or appropriate personal
protection gear is worn.
CAUTION : HOT SURFACES, DO NOT TOUCH!
M80/60 series include a front panel 4x20 character LCD display which includes
four programming keys and 2 LEDs (located on the left-hand side of the LCD)
that allow visual display of the inverter’s data and status as shown in Figure 4-1.
Please refer to Table 4-1 for information as to the information provided by the
LED indicators.
Access to various screens and the adjustment of inverter settings are done using
the LCD screen and the four programming buttons directly below the LCD screen,
See Table 4-2 for programming descriptions of operation.
When adjusting settings, LCD panel will change the display cursor from “►” to
“ ”
4.1 Display Operation Introduction

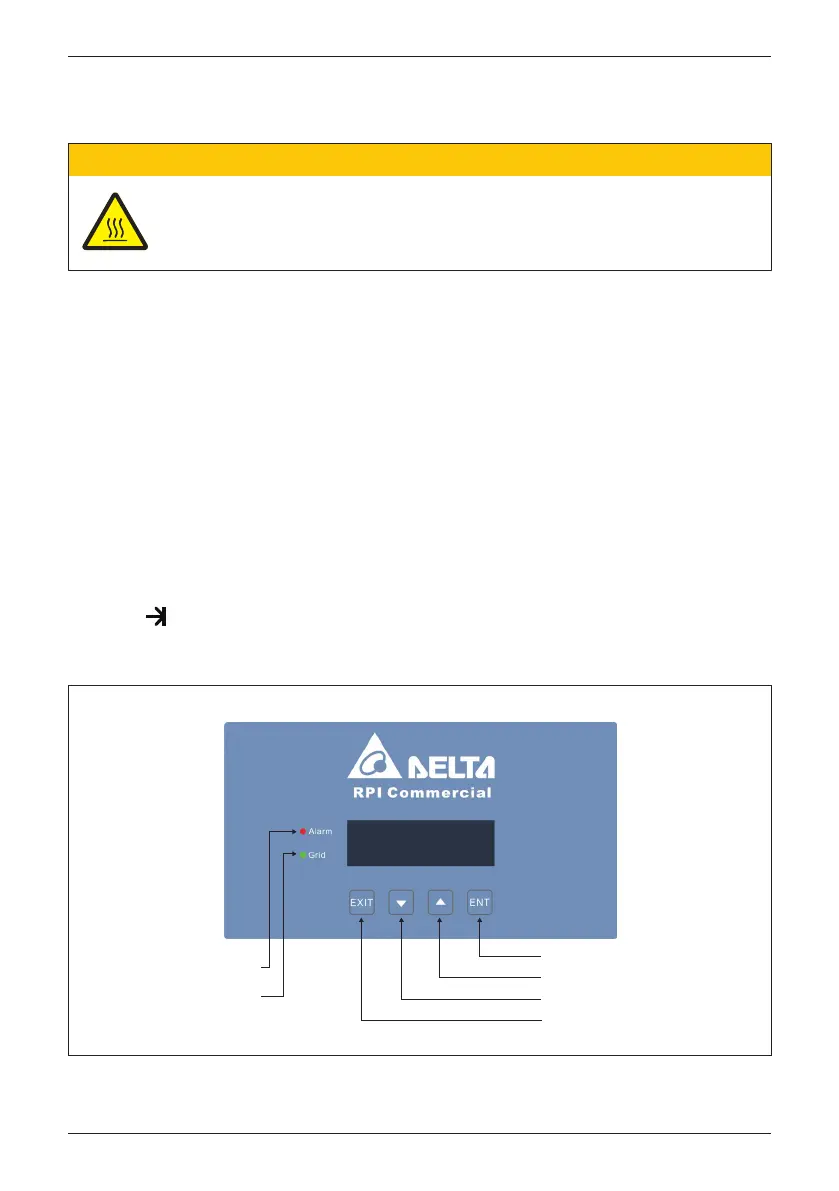

Figure 4-1: Front Panel Display
LED Indicator (RED)
LED Indicator (GRN)
EXIT : Exit Menu
Down : Move Down
UP : Move UP
ENT : Enter Menu or Confirm
LCD screen
64
Commissioning
